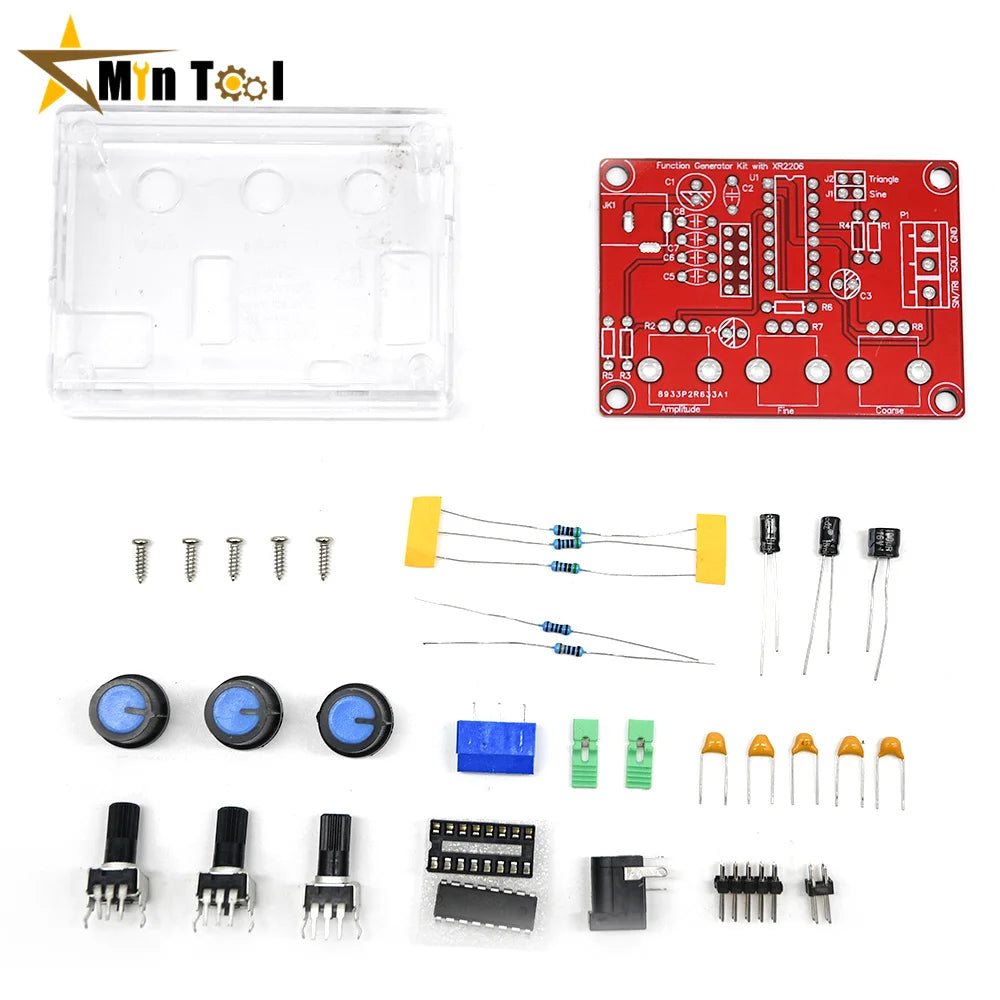

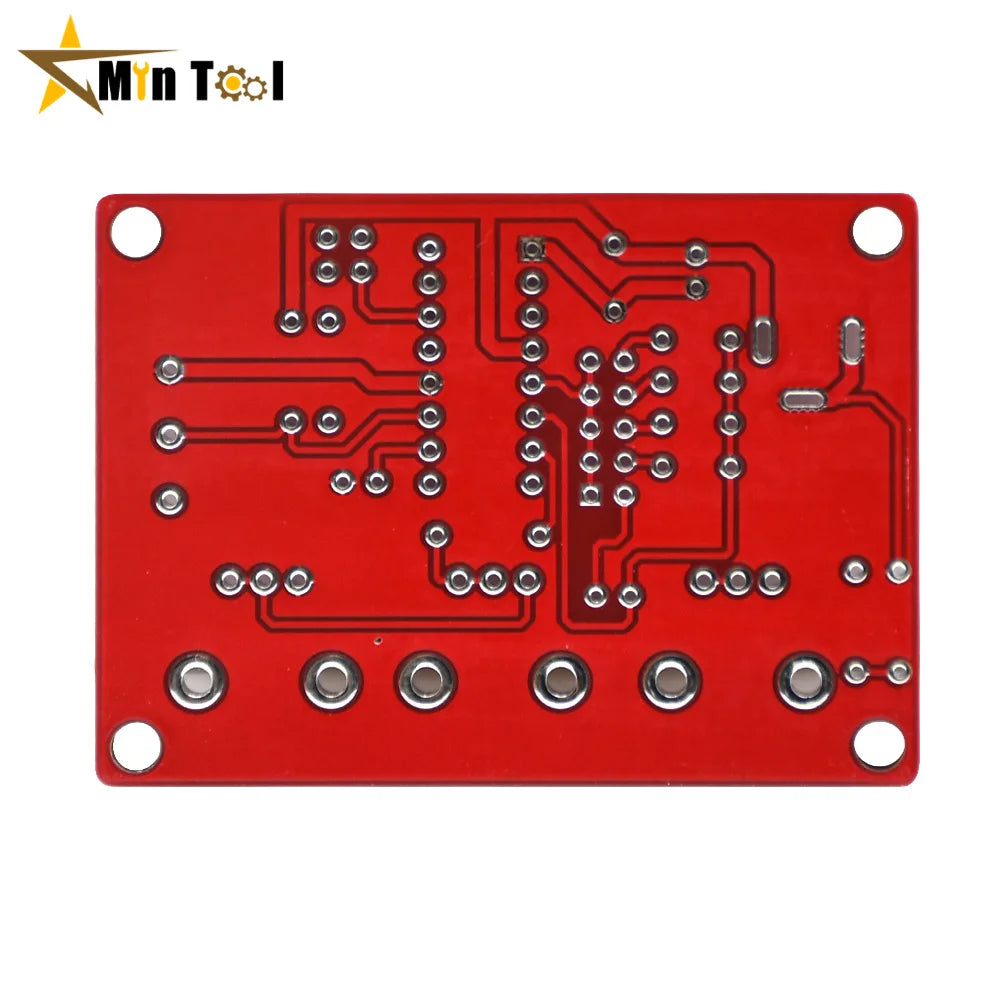

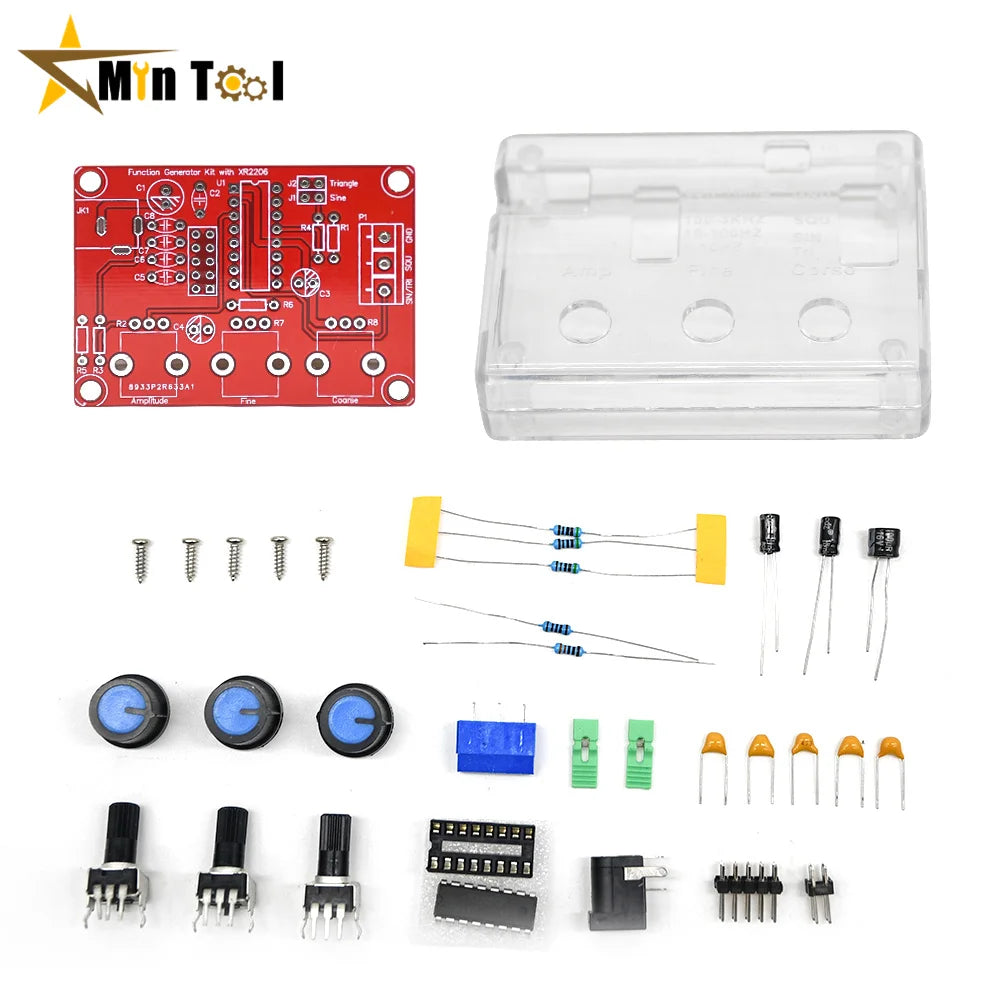

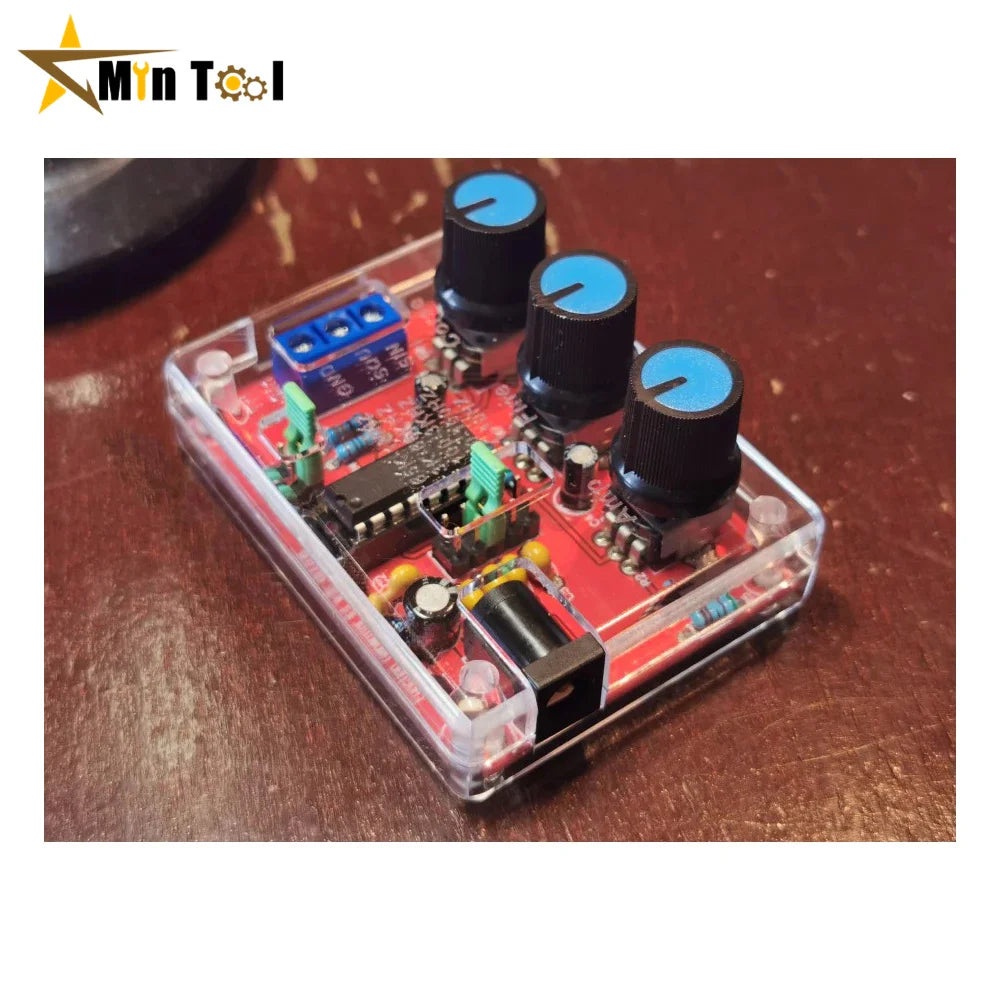

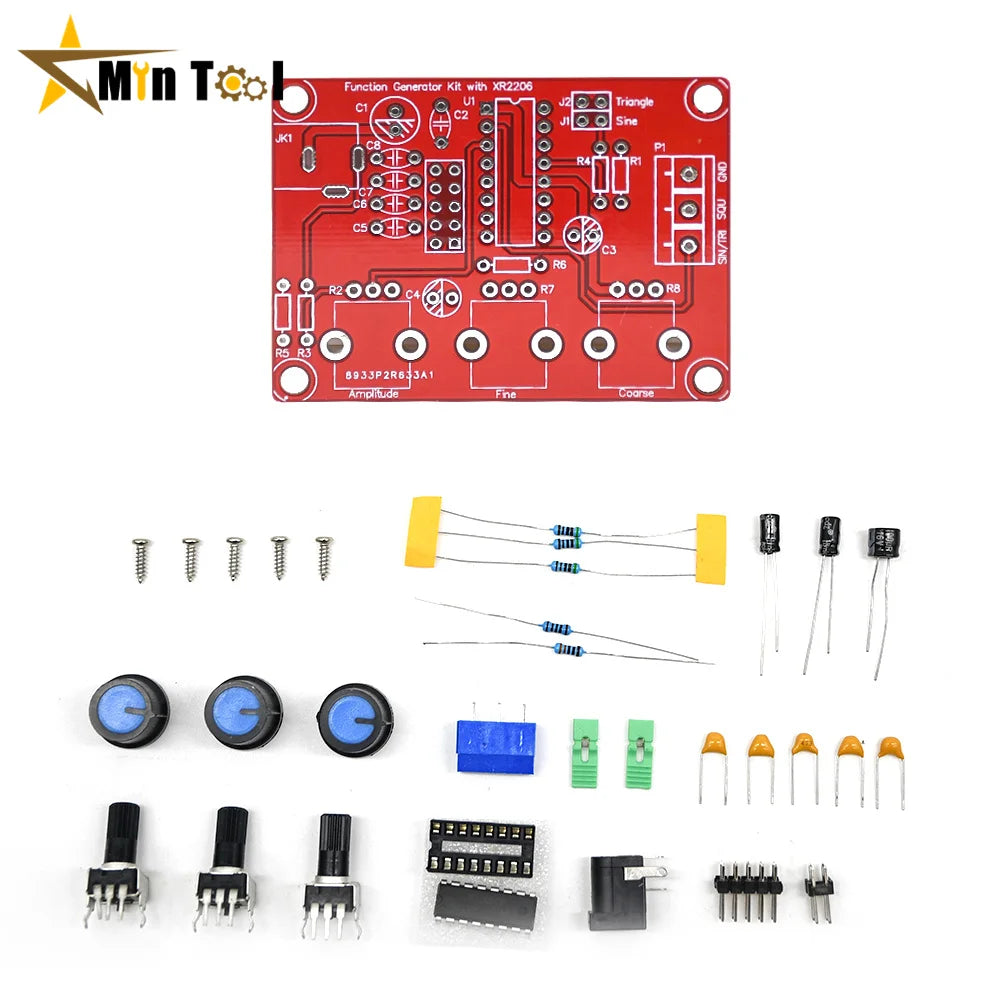

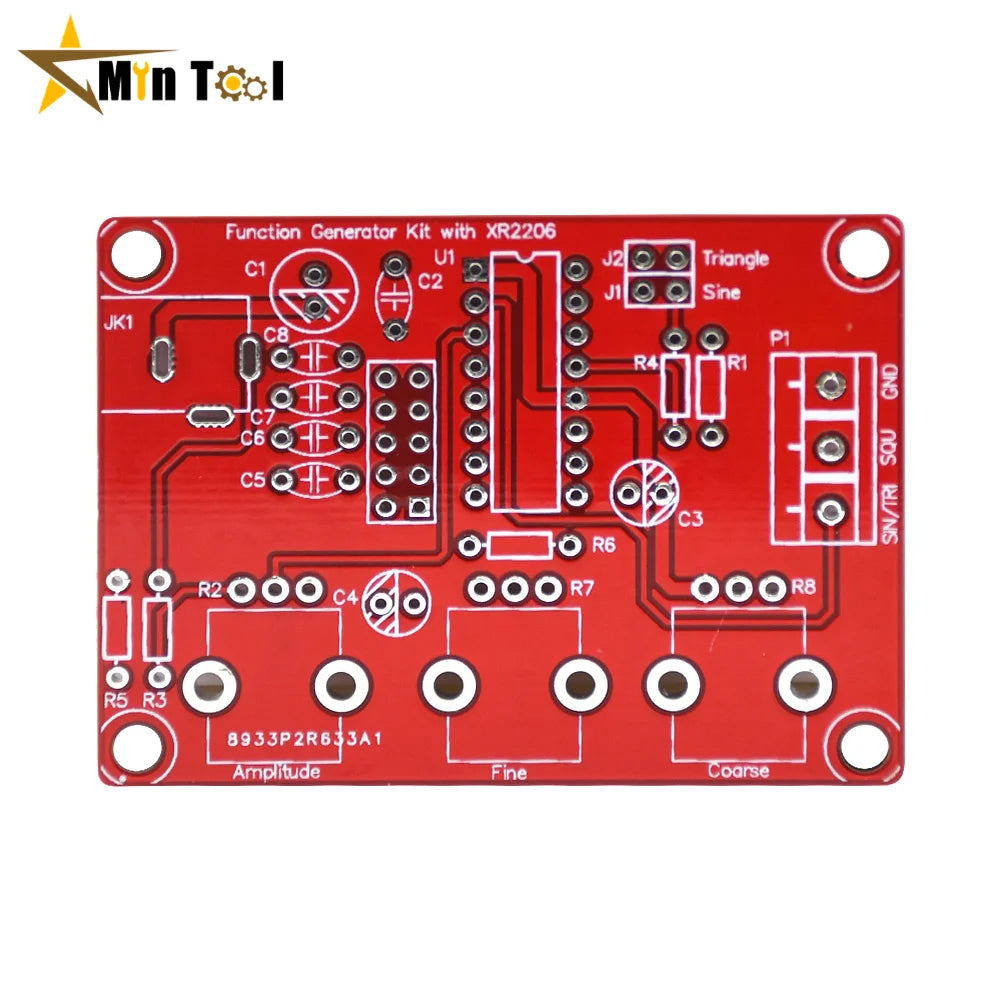

XR2206 1Hz-1MHz Signal Generator Sine/Triangle/Square Output Signal Generator Frequency Amplitude DIY Kit Electronic Component

Voltage Supply: 9-12V DC Input

Waveforms: Square, Sine & Triangle

Impedance: 600 Ohm + 10%

Frequency: 1Hz - 1MHz

SINE WAVE

Amplitude: 0 - 3V at 9V DC input

Distortion: Less than 1% (at 1kHz)

Flatness: +0.05dB 1Hz - 100kHz

SQUARE WAVE

Amplitude: 8V (no load) at 9V DC input

Rise Time: Less than 50ns (at 1kHz)

Fall Time: Less than 30ns (at 1kHz)

Symmetry: Less than 5% (at 1kHz)

TRIANGLE WAVE

Amplitude: 0 - 3V at 9V DC input

Linearity: Less than 1% (up to 100kHz) 10mA
