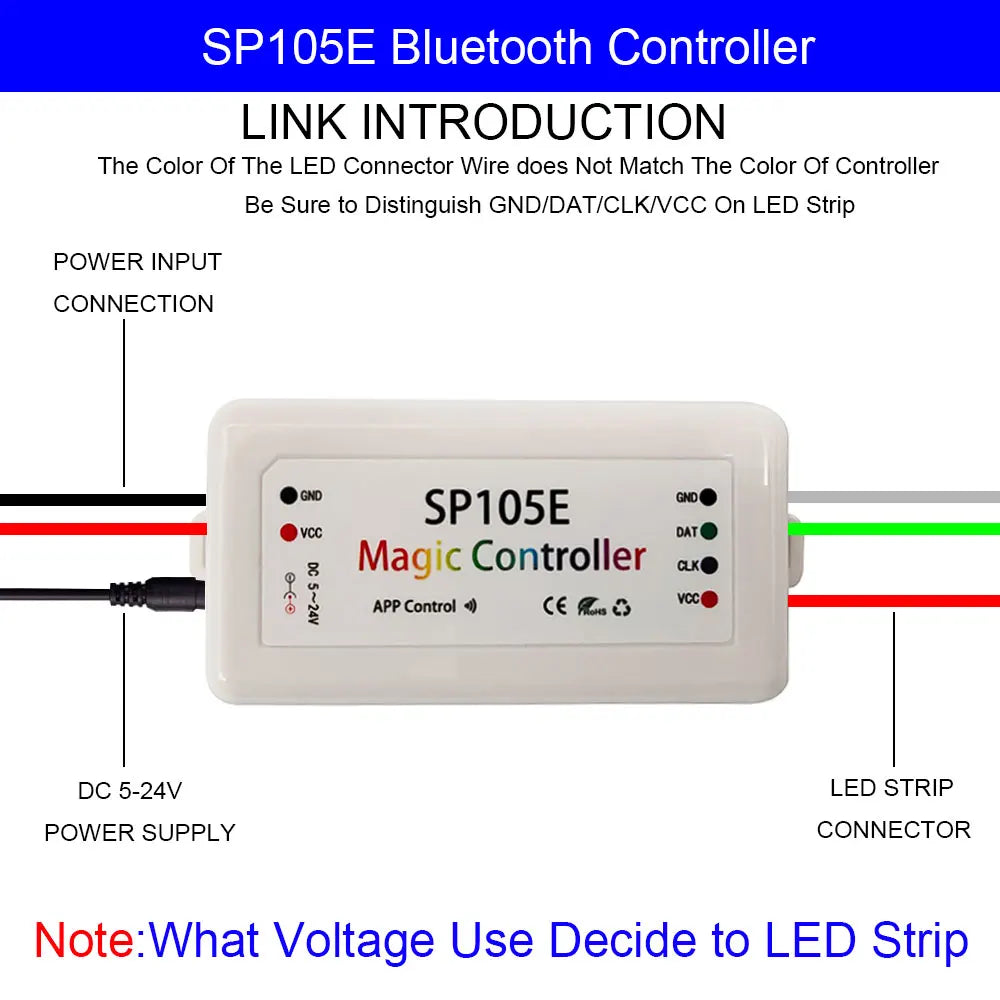

Note: What Voltage to Use to Connect The Controller Depends On The Led Strip

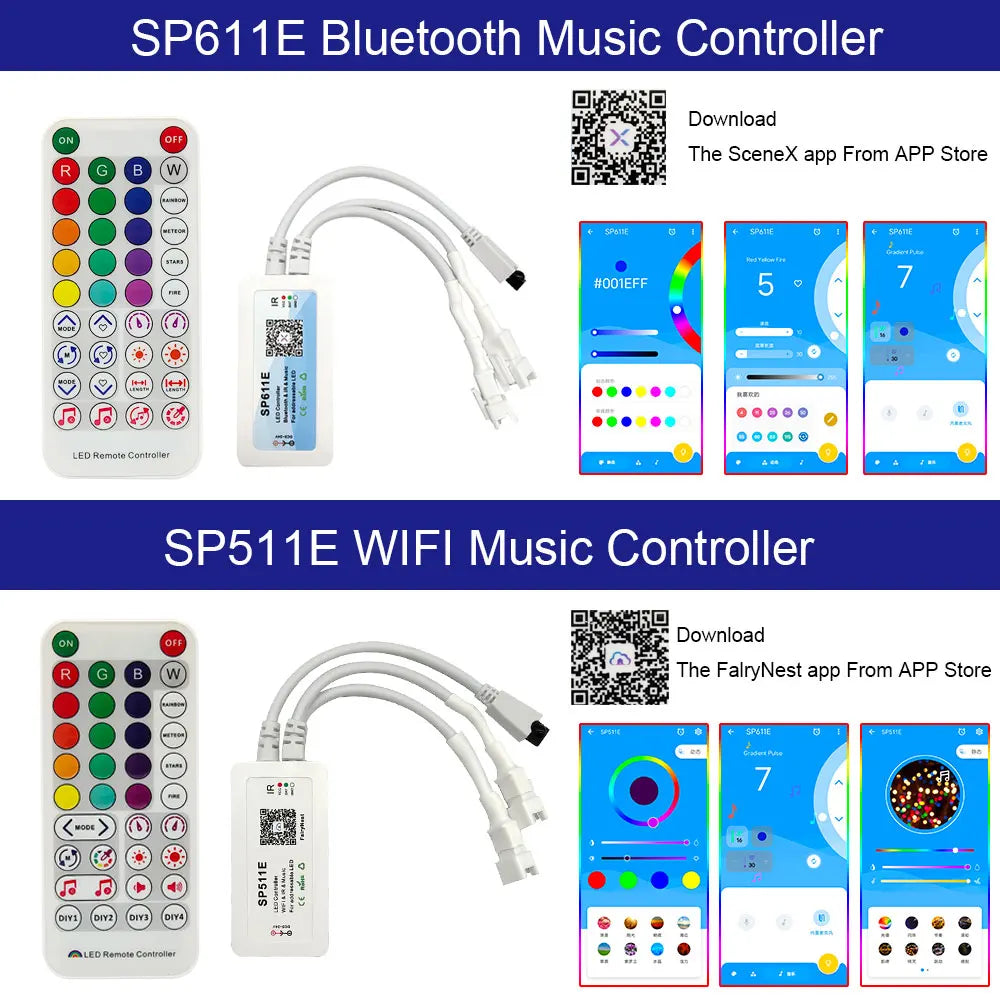

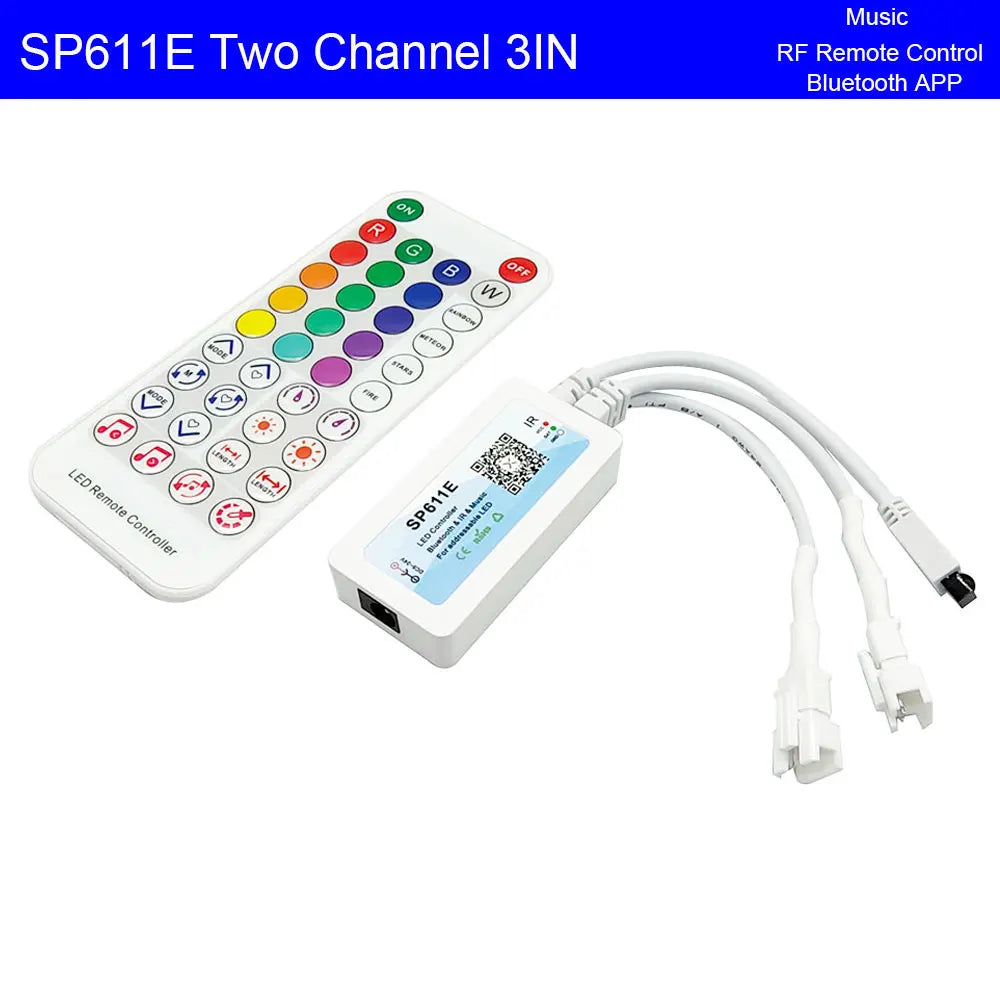

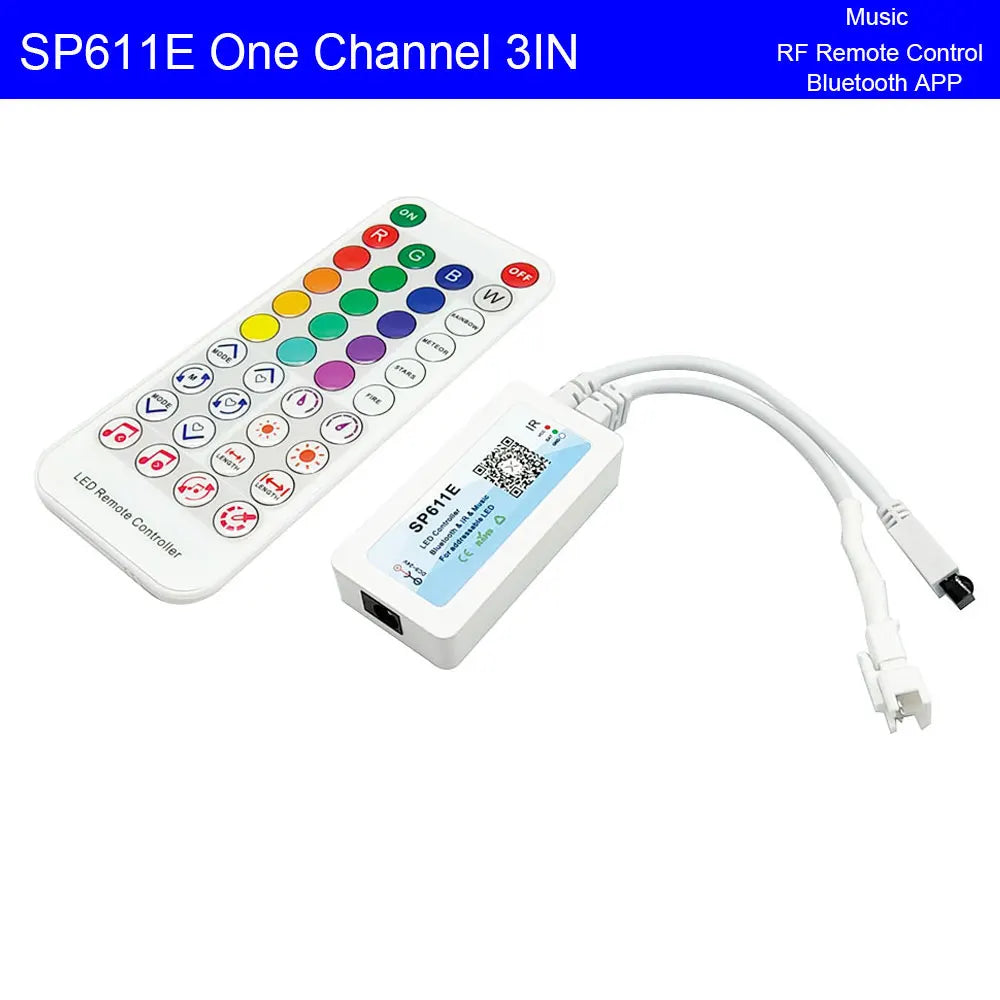

SP611E Bluetooth Music Pixel Controller

Features:

1. Supports both APP control and RF remote control.

2. Support automatic device connection and automatic re-connection when the APP turns on.

3. Support multiple devices grouping control.

4. Multiple sound collection methods: phone mic, player streaming, on-board mic.

5. Support modifying the device name, calibrate the RGB channel sequence, and timer function.

6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels.

7. Built-in 142 dynamic effects, effect length adjustable, with favour effects collecting function.

8. Built-in 18 music effects, effect length adjustable, sensitivity adjustable.

9. DC5~24V wide voltage input, the power supply has anti-reverse connection function.

10. Automatic saving function for setting parameters.

Technical Parameters:

Input voltage: DC5-24V.

Working temperature: -20℃~60℃.

Support: IOS 10.0/ Android 4.4.

Output signal: SPI (TTL) Digital Signal.

Connection Type: IR 38 Keys Remote Control or Bluetooth APP Control.

Controllable pixels: 600 pcs IC ( ws2812b led light 600 pcs leds, ws2811 led light 1800 pcs leds).

Application: Digital Addressable LED Light.

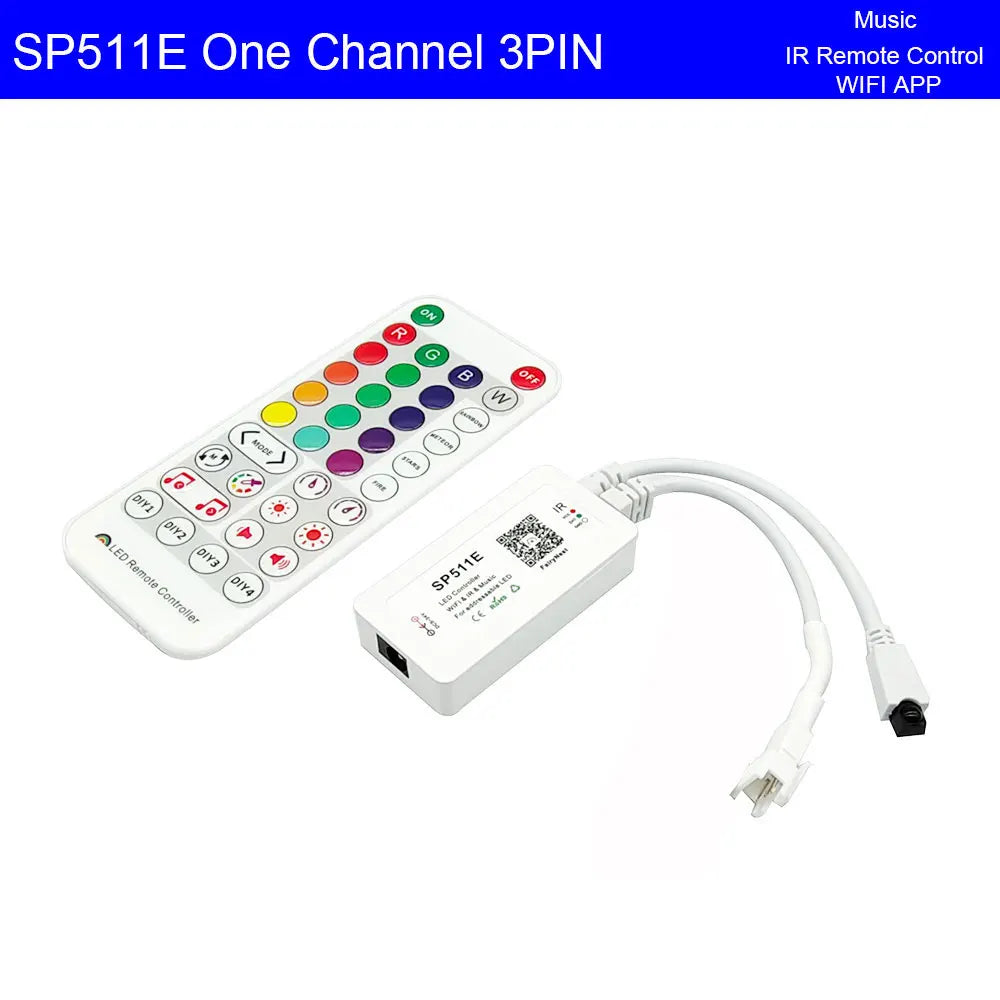

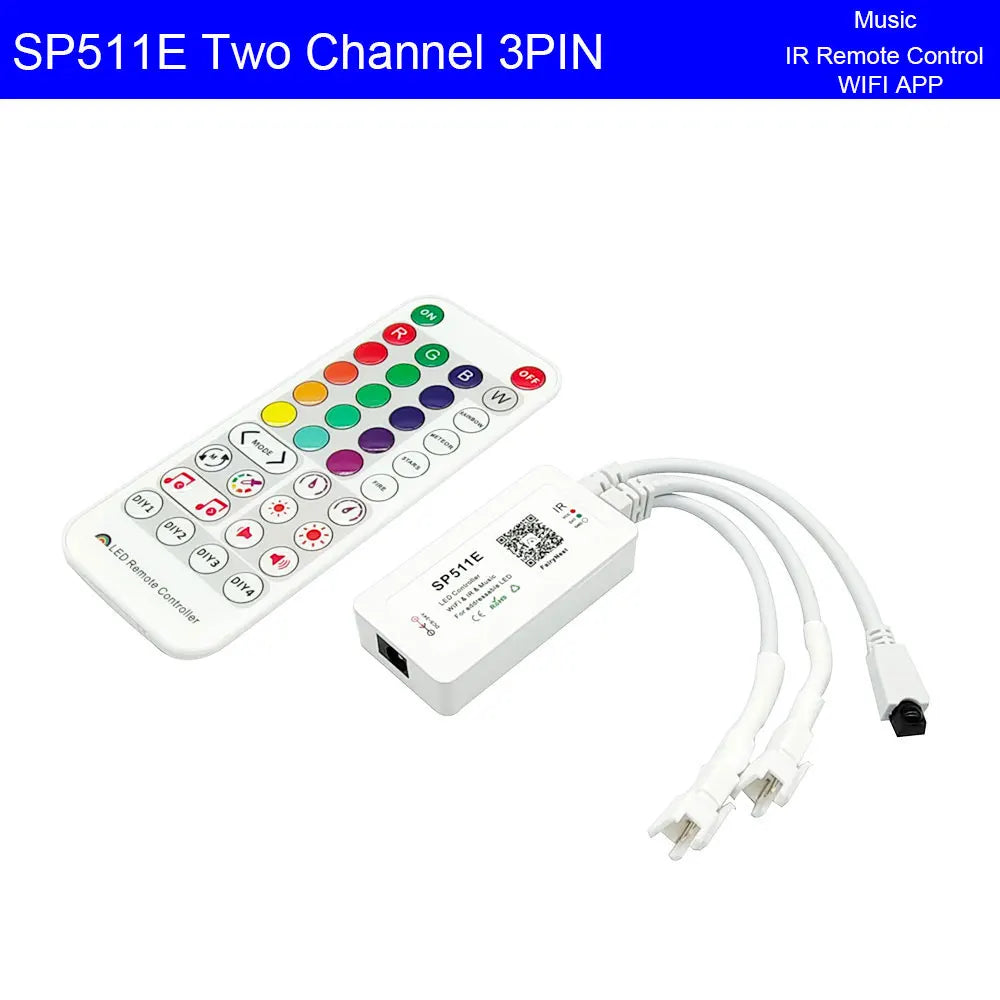

SP511E WIFI Music Controller

Please Note:

SP511E Music Wifi Alexa WS2811 WS2812B Controller App IR38 Keys Built In Mic for LED Light Strip Google Assistant IOS Android DC5V-24V

Features:

1, WIFI fast access technology, remote control via Internet.

2, Supports APP control, IR remote control and Buttons control, both iOS and Android are available.

3, Able to works with Amazon Alexa, Google Assistant or AliGenie smart speakers.

4, 8 dynamic LED effects, 8 solid color scenes and 8 music effects can be called via voice commands directly.

5, Built-in 8 music effects and 180 non-music dynamic effects with adjustable brightness and speed.

6, Support change device name ,reorder the RGB order, OTA firmware update.

7, Support common single-wire LED driver ICs in the market, support up to 900 pixels.

8, DC5~24V wide voltage input, with power supply anti-reverse connection function.

9, With the function of automatically saving setting parameters.

Input voltage: DC5-24V.

Connection Type: IR 38 Keys Remote Control or Wifi APP Control or Alexa/Google Assistant.

Controllable pixels: 900 pcs IC ( ws2812b led light 900 pcs leds, ws2811 led light 2700 pcs leds).

Application: Digital Addressable LED Light.

Output signal: SPI (TTL) Digital Signal.

Support: IOS 10.0/ Android 4.4.

Working temperature: -20℃~60℃.

Wifi App Controller:

It works with the FairyNest App, both IOS and Android system are available.

Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later,

you can search "FairyNest " in the App Store or Google Play to find the app.

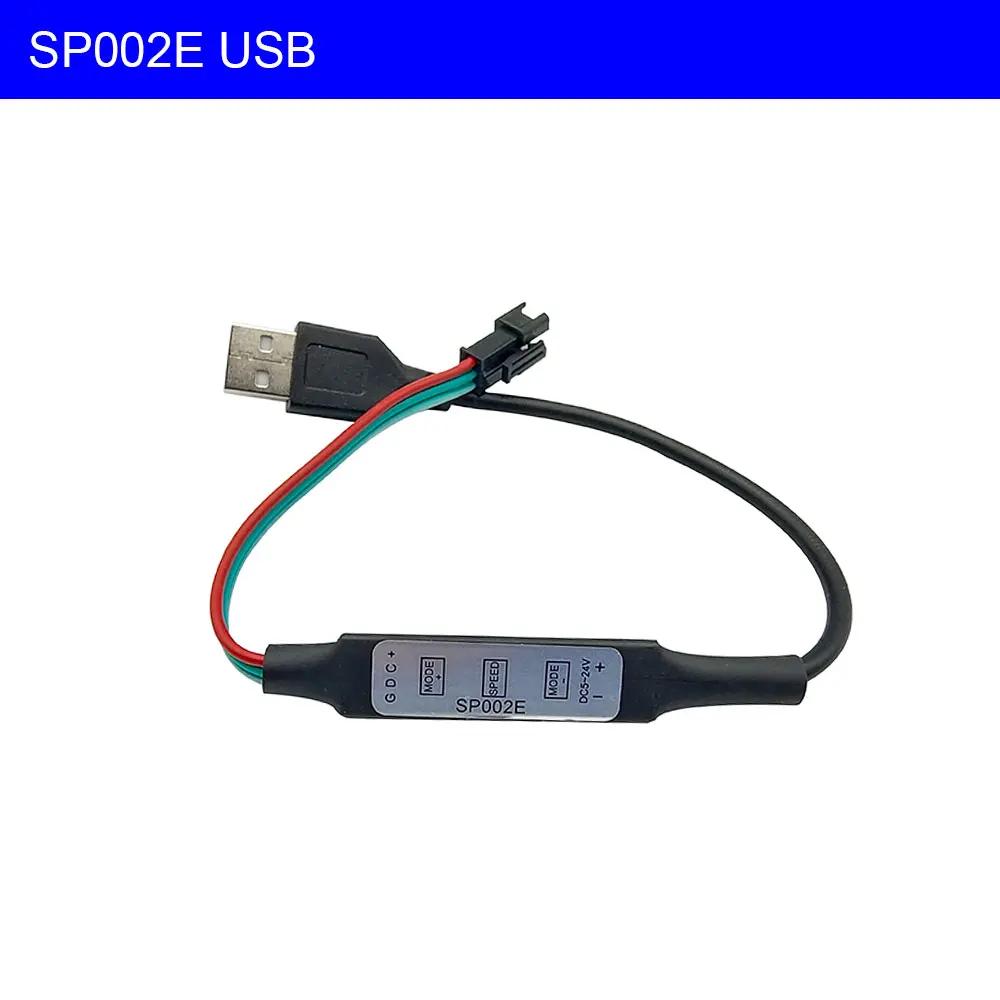

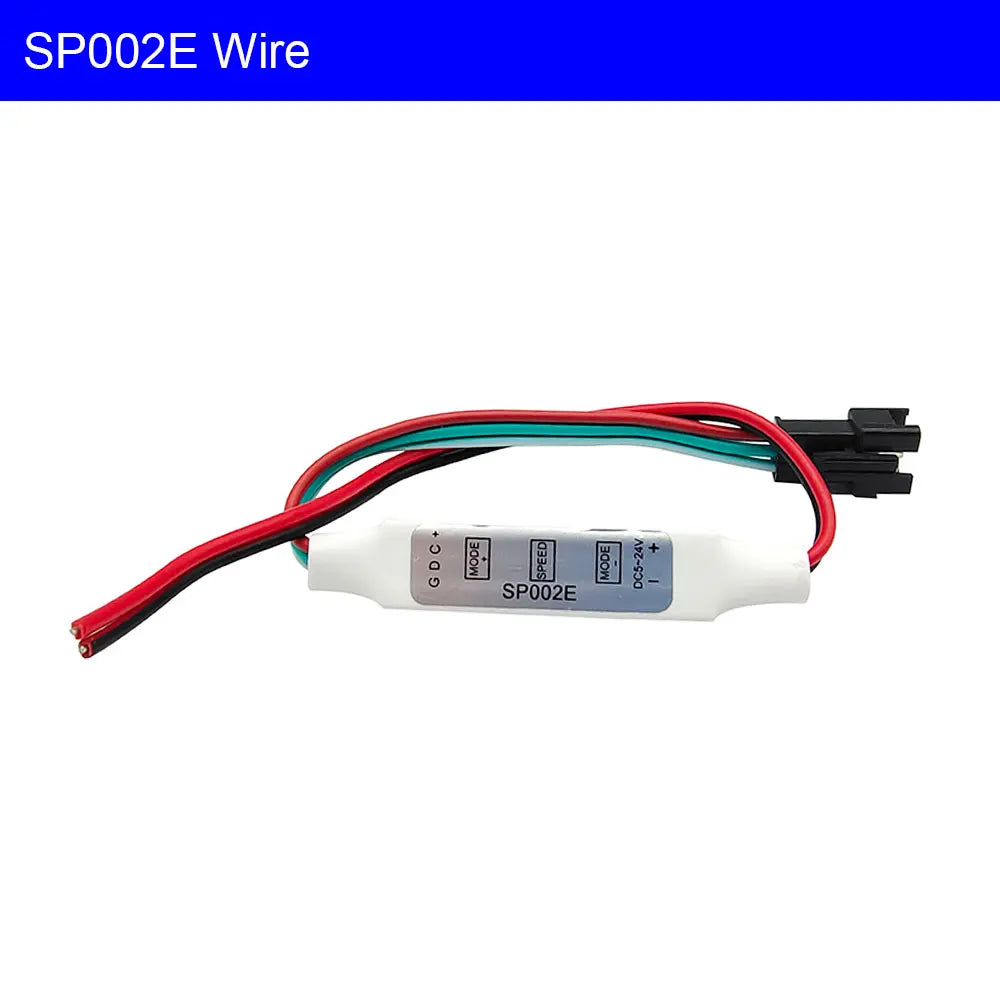

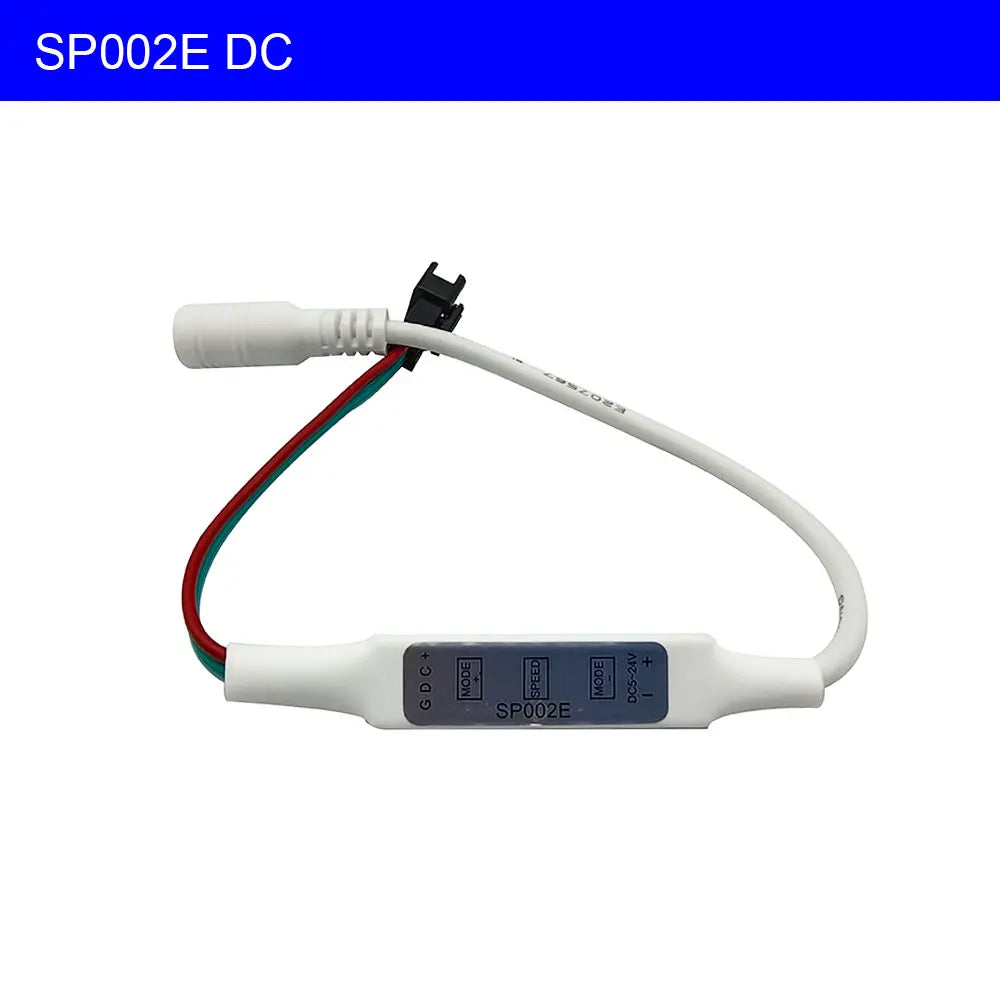

SP002E Pixels LED Controller:

Control Method: 3Keys-Button

Input Port: Wire/DC/USB

Input Voltage: DC5-24V

Max Control Pixels: 2048

Music Activated Mode: No

Magical Colour Effect Mode: 76

Connector: 3Pin

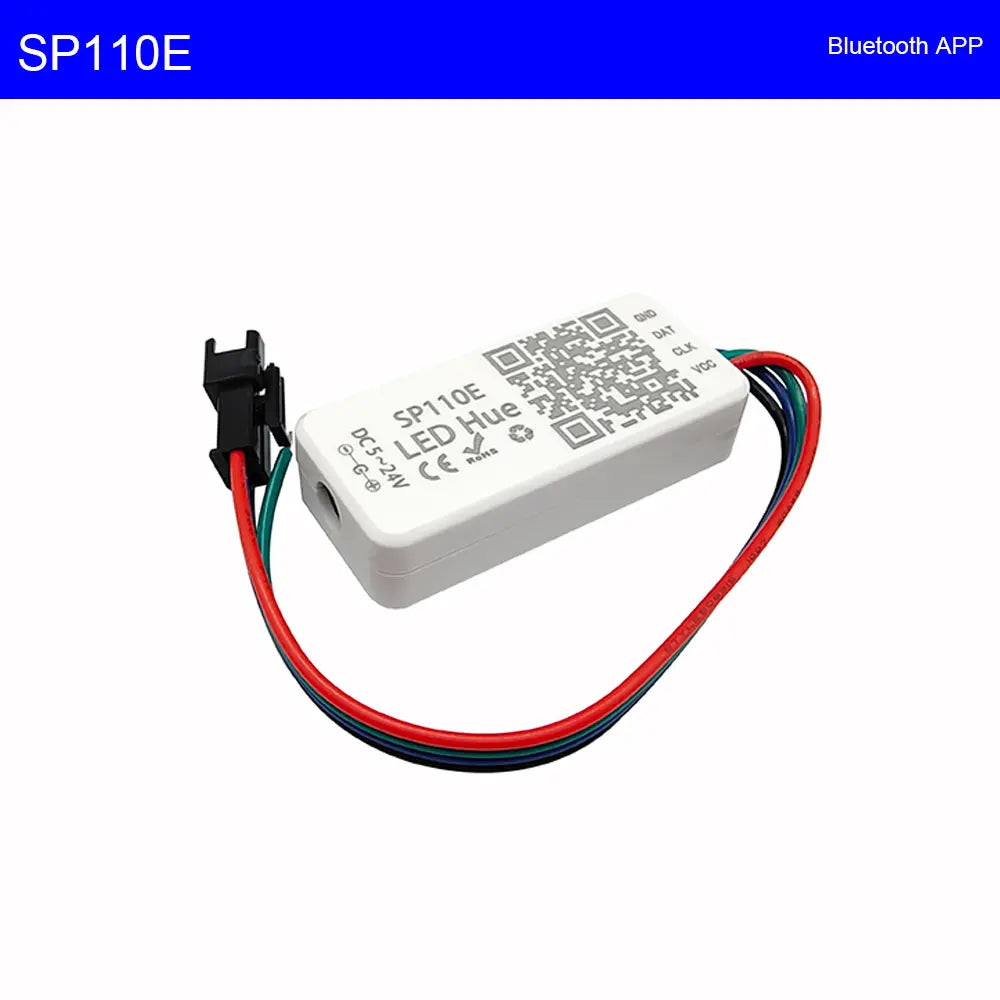

SP110E Bluetooth Pixels LED Controller:

Control Method: APP (Bluetooth)

Input port: DC female connector

Input Voltage: DC5-24V

Maximumcurrent: 4.0A

Pixel: 1024

Music activated mode:No

Magical colour effect mode: 120

Connector: 3Pin

Support IC: WS2811 WS2812B SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

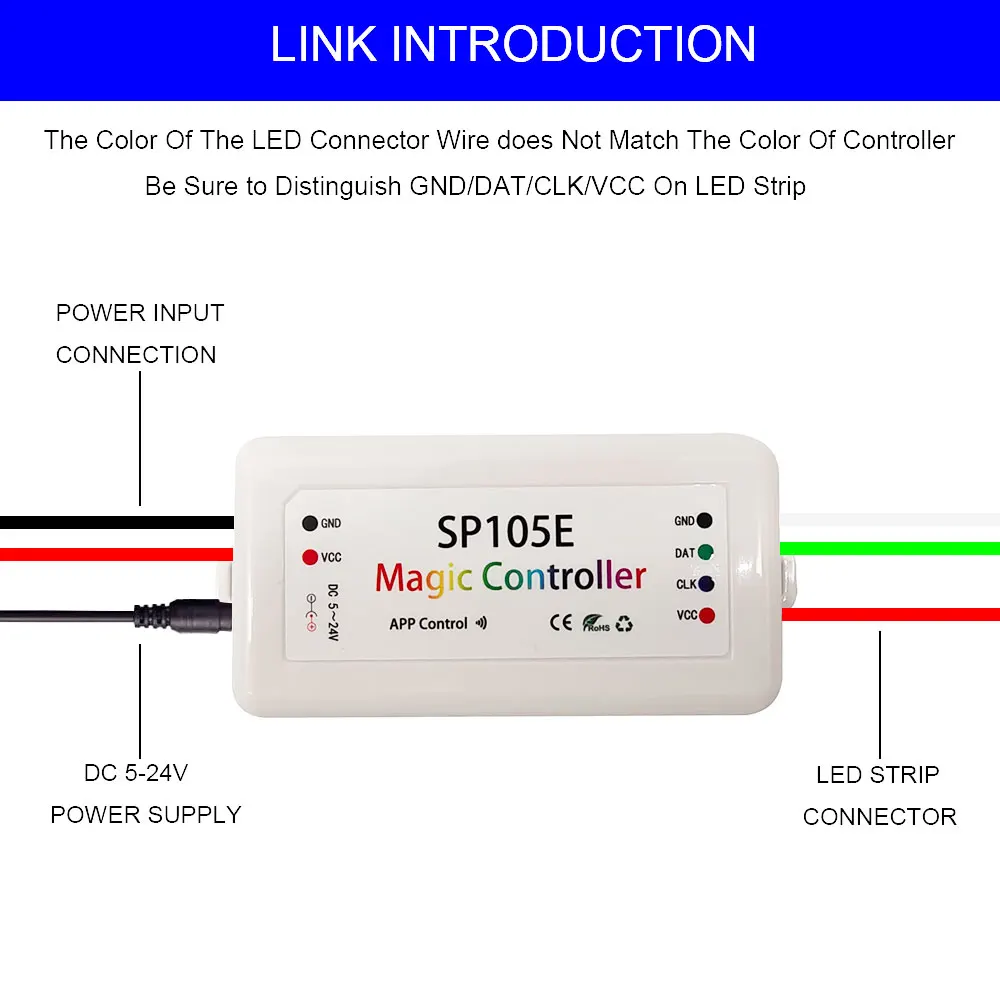

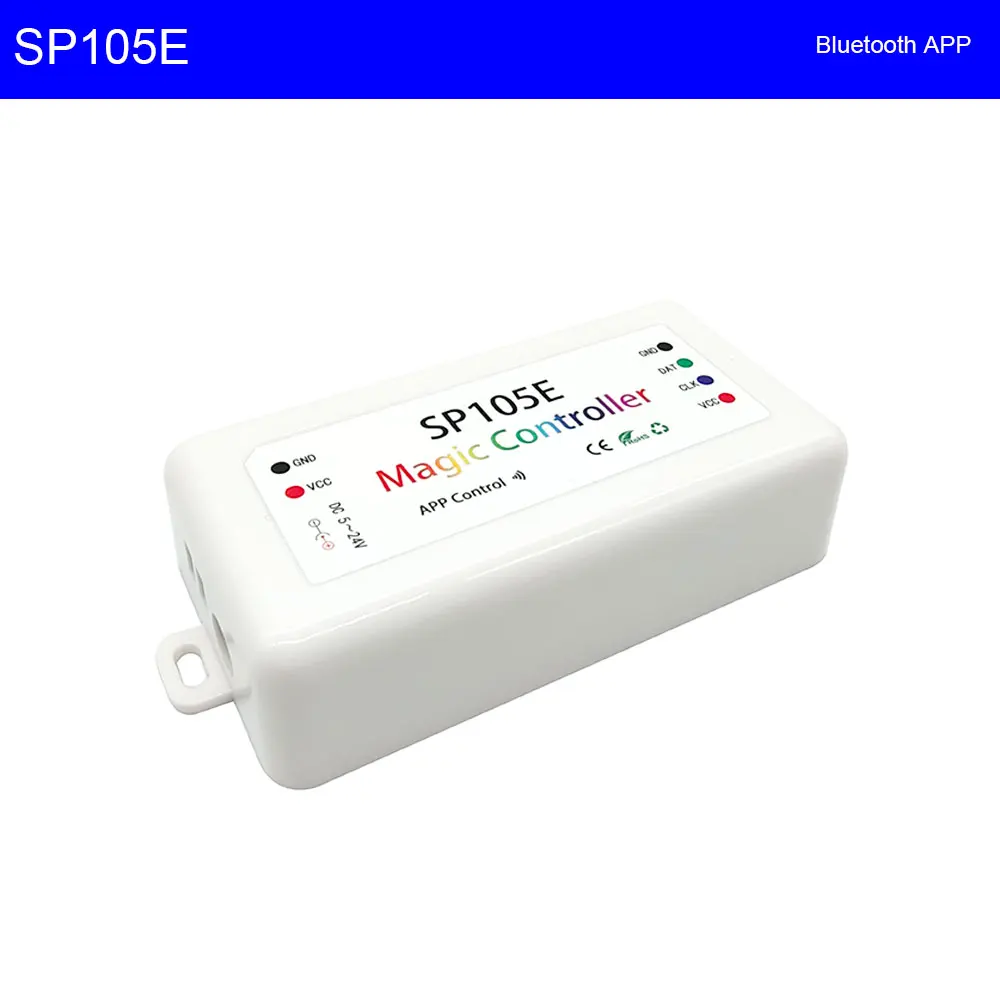

SP105E BluetoothPixels LED Controller:

Control Method: APP (Bluetooth)

Input Port: DC Female Connector

Input Voltage: DC5-24V

Maximum Current: 5.5A

Pixel: 2048

Music activated mode: No

Magical colour effect mode: 200

Connector: 3Pin/4Pin

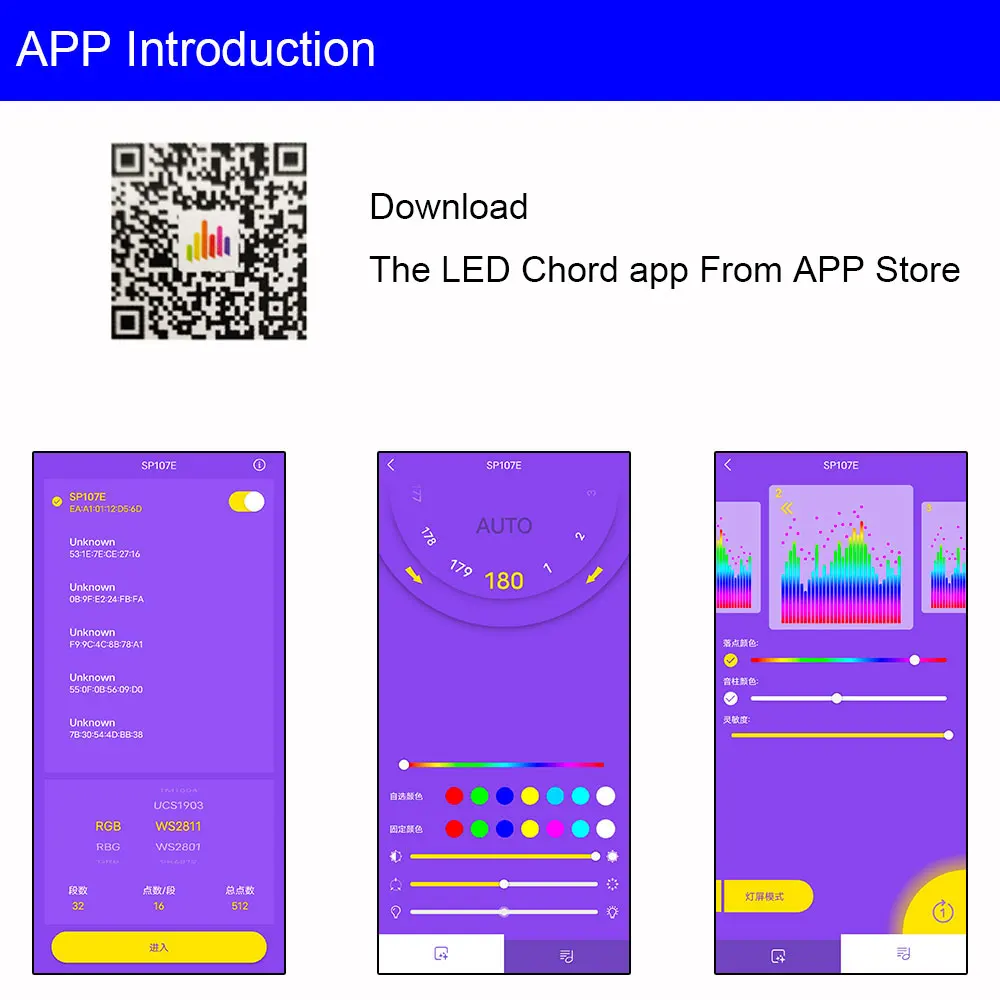

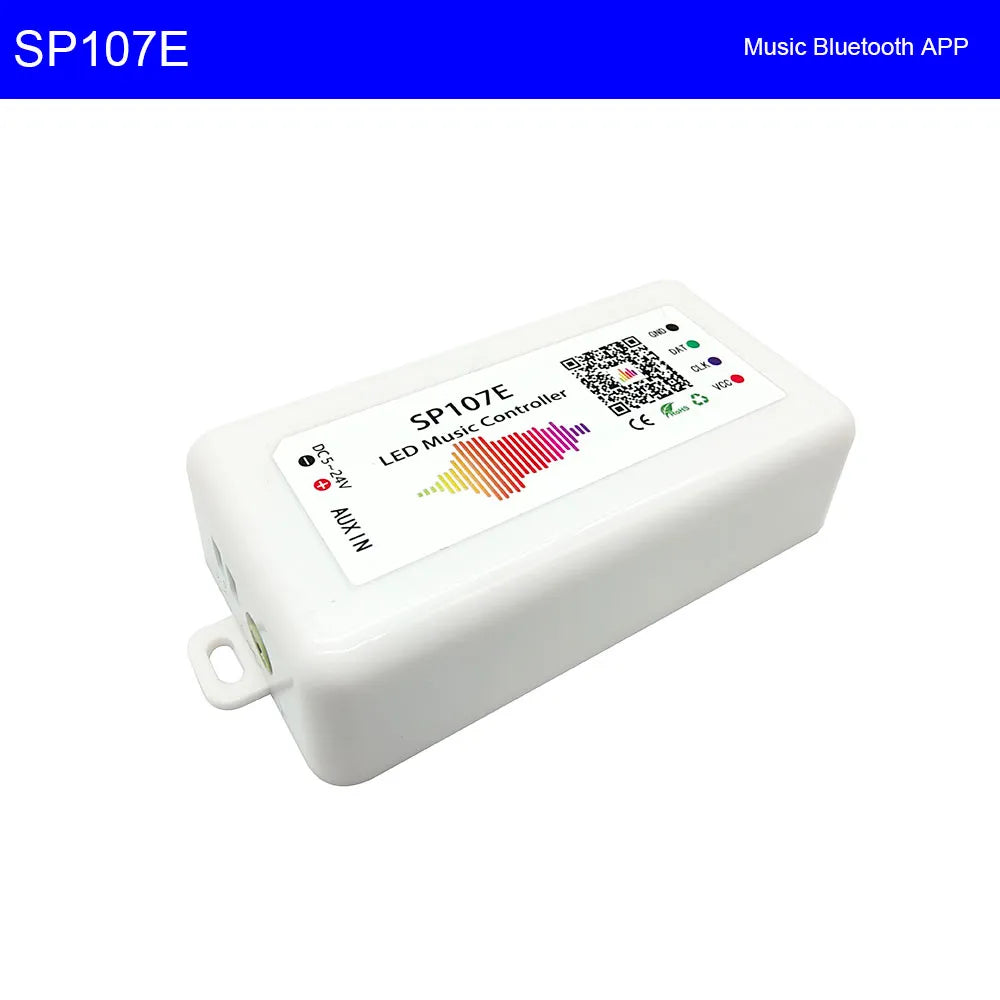

Support IC: WS2811 WS2812B WS2813 WS2815 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412SP107E Music Controller

Control Method: APP (Bluetooth)

Input Port: DC female connector Input

Voltage: DC5-24V

Maximum current: 9.0A

Pixel: 960

Music activated mode: Built-in microphone and AUX IN

Musical effect mode: 15+10

Magical colour effect mode: 180

Connector: 3Pin/4Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

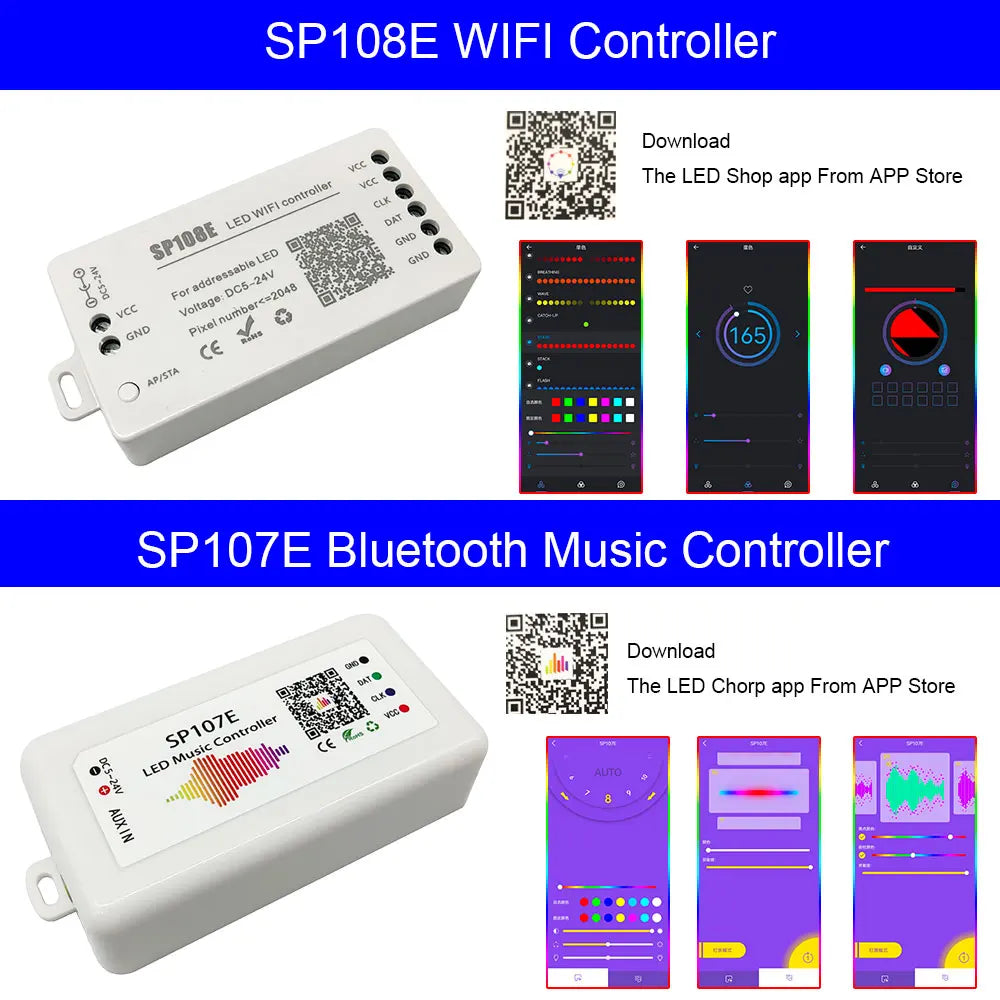

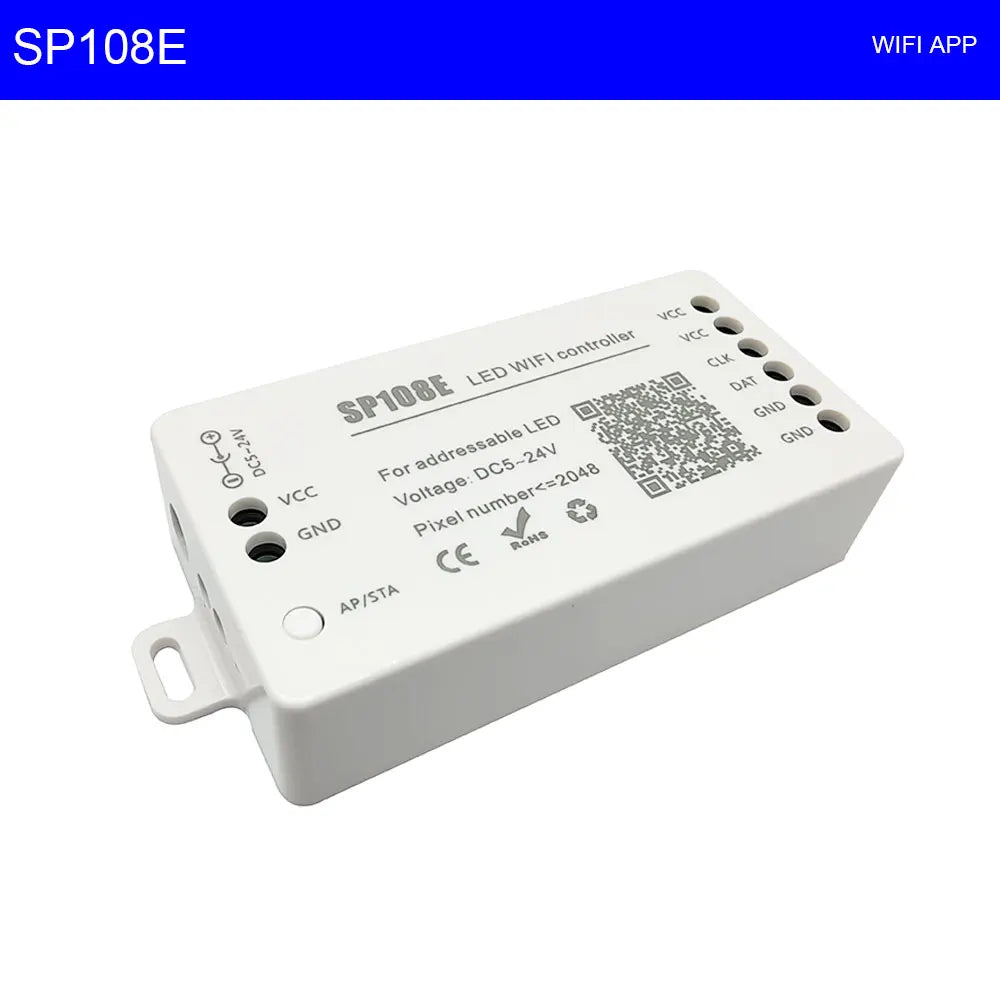

SP108E Pixels WIFI LED Controller:

Control Method: APP (WiFi)

Input port: DC female connector

Input Voltage: DC5-24V

Maximum current: 4.0A

Pixel: 2048

Music activated mode: No

Magical colour effect mode: 180 +DIY

Connector: 3Pin/4Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

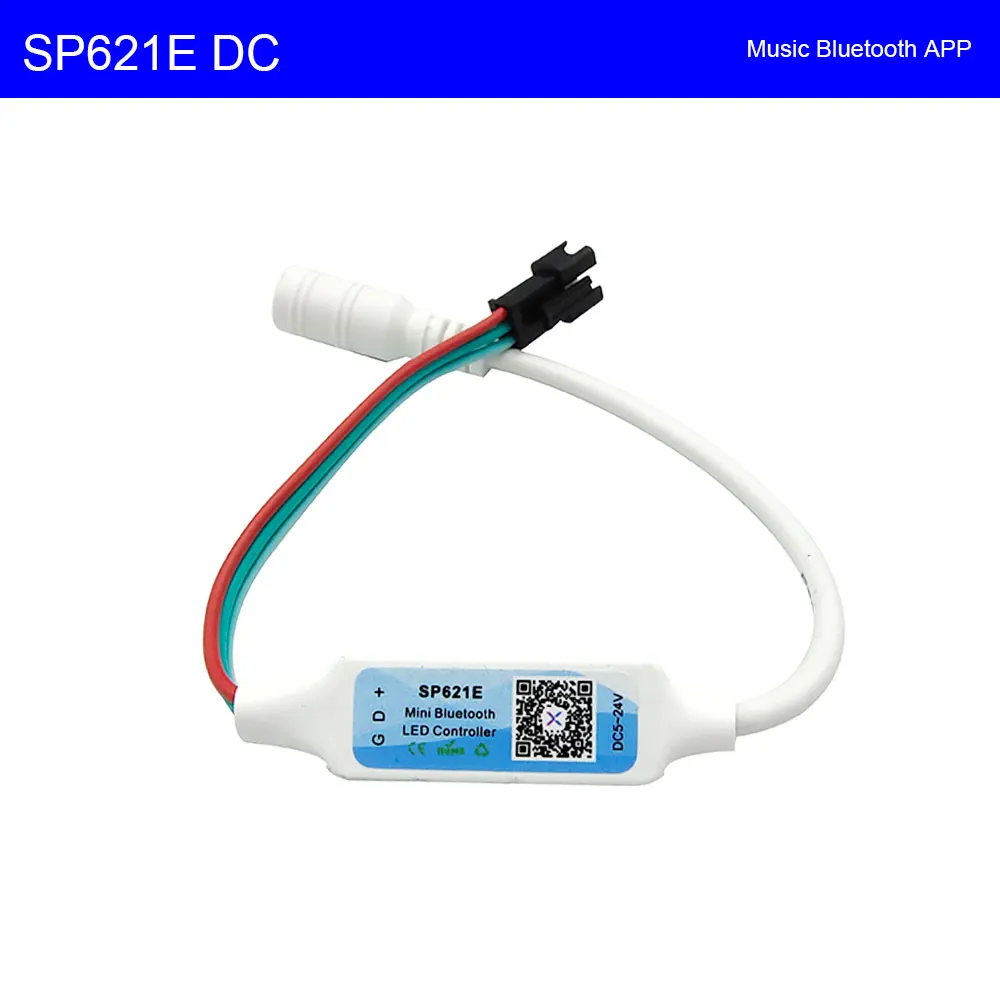

SP621E Bluetooth Music Pixel Controller

Notice :

1. The controller is bluetooth control.

2. Up to 600 pixels of controller.

3. The power supply is selected according to the led strip, such as DC5V power supply for DC5V led strip, DC12V power supply for DC12V led strip

Features:

1. Support APP control ;

2. Support automatic device connection and automatic re-connection when the APP tums on;

3. Support muliple devices grouping control;

4. Two sound cllection methods: phone mic, player streaming;

5. Support modifying the device name, calibrate the RGB channel sequence, and timer function;

6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels;

7. Built-in 142 dynamic efects, efect length adjustable, with favour ffects olleting function;

8. Buil-in 18 music efects, efeet length adjustable, sensitivity adjustable;

9. DC5~24V wide voltage input, the power supply has anti-reverse connection function;

10. Automatic saving function for stting parameters.
