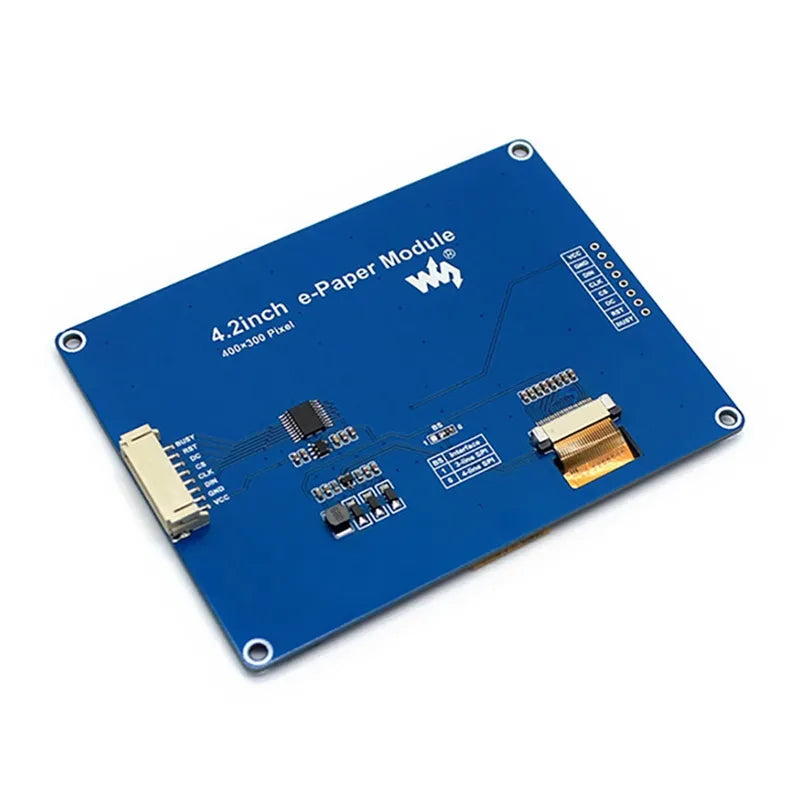

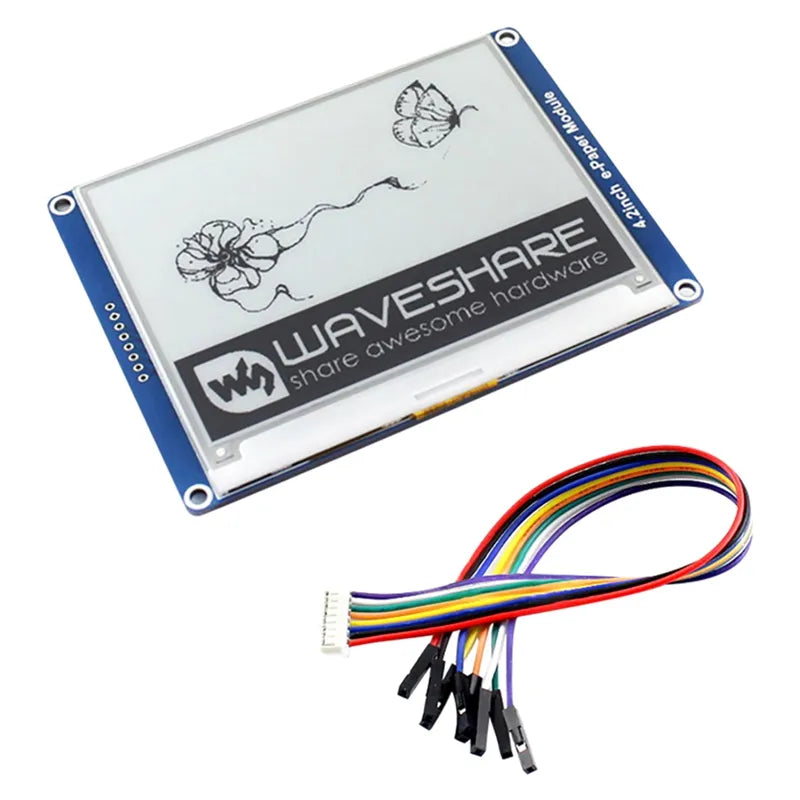

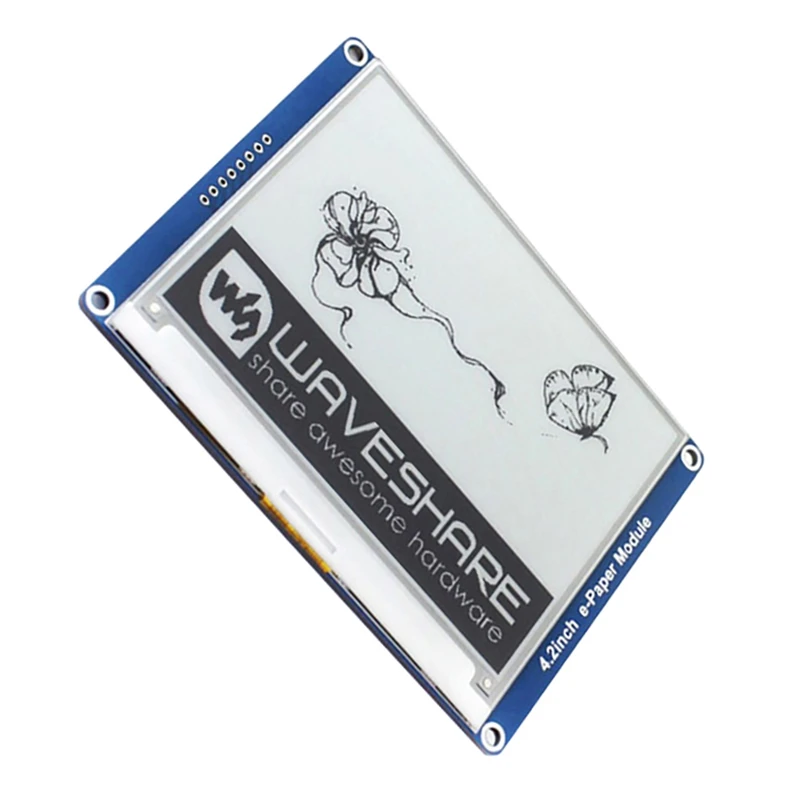

Waveshare 4.2 Inch E-Ink Display Module For Raspberry Pi 4 B E-Paper Module
Waveshare 4.2 Inch E-Ink Display Module For Raspberry Pi 4 B E-Paper Module
Regular price
$47.59 AUD
Regular price
Sale price
$47.59 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: LYNEPAUAIO
Demo Board Type: ARM
Origin: Mainland China
ROM Capacity: None
Model Number: Ne
Certification: NONE
Operating voltage: 3.3V~5V
Interface: 3-wire SPI, 4-wire SPI
Dot pitch: 0.212 x 0.212
Resolution: 400 x 300
Grey level: 2
Full refresh time: 4s
Refresh power: 26.4mW(typ.)
Standby power: less than 0.017mW
Viewing angle: more than the170 degree
Colour: Blue white
Material: PCB

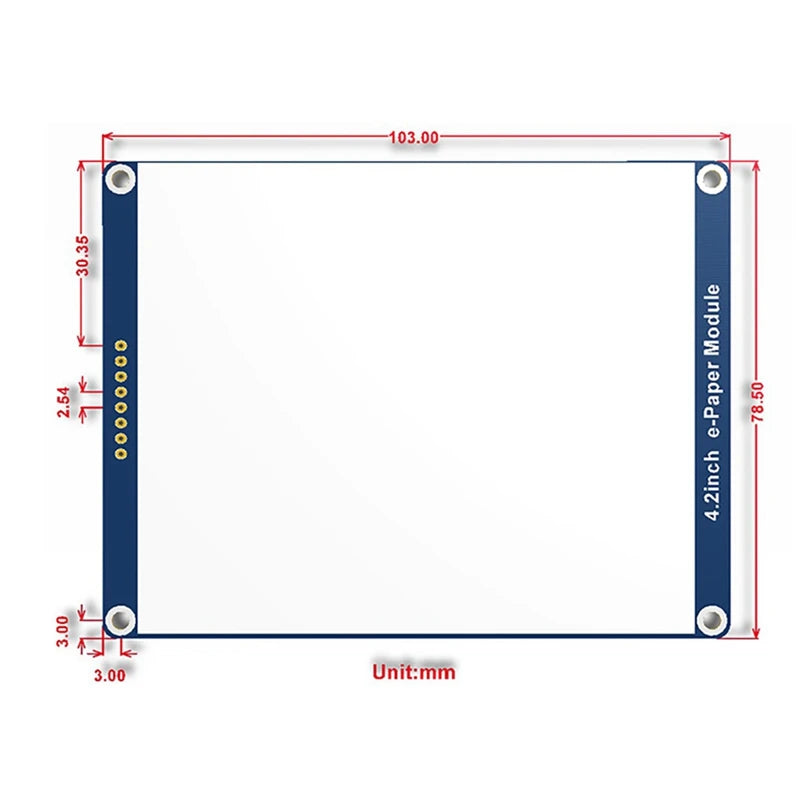

Size: 103 x 78mm
Package Contents: 1 * 14.2 Inch E-Ink Display Module 1 * wire
Waveshare 4.2 Inch E-Ink Display Module For Raspberry Pi 4 B E-Paper Module
1.No backlight, keeps displaying last content for a long time even when power down.
2.Ultra low power consumption, basically power is only required for refreshing.
3.SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc.
4.Onboard voltage translator, compatible with 3.3V/5V MCUs .
Specifications :
Operating voltage: 3.3V~5V
Interface: 3-wire SPI, 4-wire SPI
Dot pitch: 0.212 x 0.212
Resolution: 400 x 300
Grey level: 2
Full refresh time: 4s
Refresh power: 26.4mW(typ.)
Standby power: less than 0.017mW
Viewing angle: more than the170 degree
Colour:Blue white
Material:PCB
Size:103 x 78mm
Package Contents:
1 * 14.2 Inch E-Ink Display Module

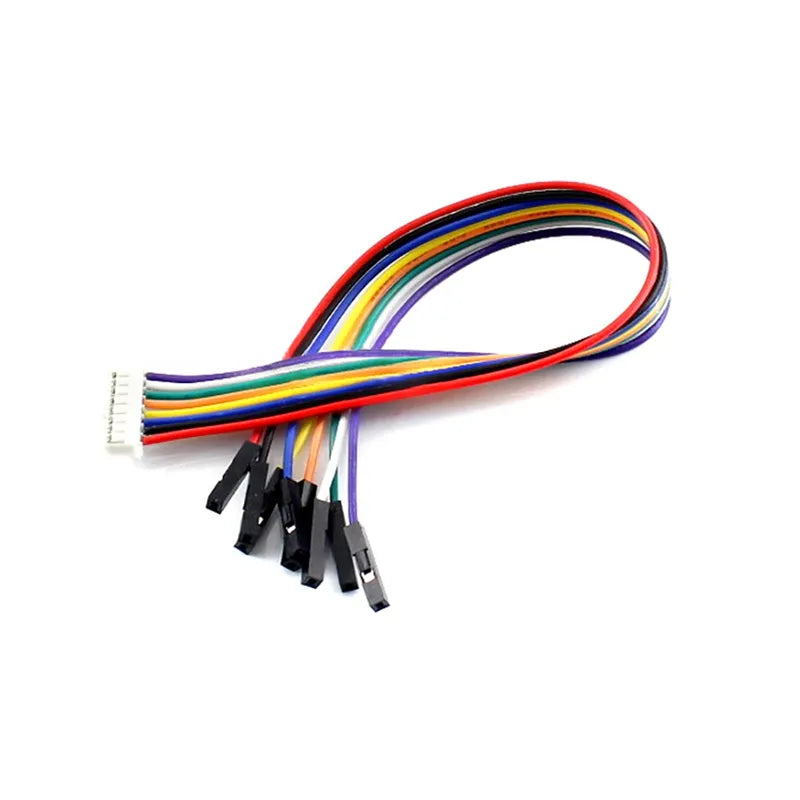

1 * wire
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
2.Ultra low power consumption, basically power is only required for refreshing.
3.SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc.
4.Onboard voltage translator, compatible with 3.3V/5V MCUs .
Specifications :
Operating voltage: 3.3V~5V
Interface: 3-wire SPI, 4-wire SPI
Dot pitch: 0.212 x 0.212
Resolution: 400 x 300
Grey level: 2
Full refresh time: 4s
Refresh power: 26.4mW(typ.)
Standby power: less than 0.017mW
Viewing angle: more than the170 degree
Colour:Blue white
Material:PCB
Size:103 x 78mm
Package Contents:
1 * 14.2 Inch E-Ink Display Module
1 * wire
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
