Geek Barn

VEVOR CNC 3018 Pro Mini Laser Engraving Machine 3 Axis w/ Offline Controller GRBL Control DIY Wood PCB Milling Cutting Engraver

VEVOR CNC 3018 Pro Mini Laser Engraving Machine 3 Axis w/ Offline Controller GRBL Control DIY Wood PCB Milling Cutting Engraver

$268.97 AUD
$268.97 AUD
Sale Sold out
Tax included.
Ships From

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Model Number: 3018 PRO

CNC or Not: CNC

Condition: New

Certification: CE

Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm

Materials: Aluminum Profile & Bakelite

Input Power: DC 24V 5A

Spindle Speed: 10000 rpm

Stepping Motor: 1.3A; 12V; Torque: 0.25 N/m

Control Software: GRBL Control

Positioning Accuracy: 0.003"/ 0.08 mm

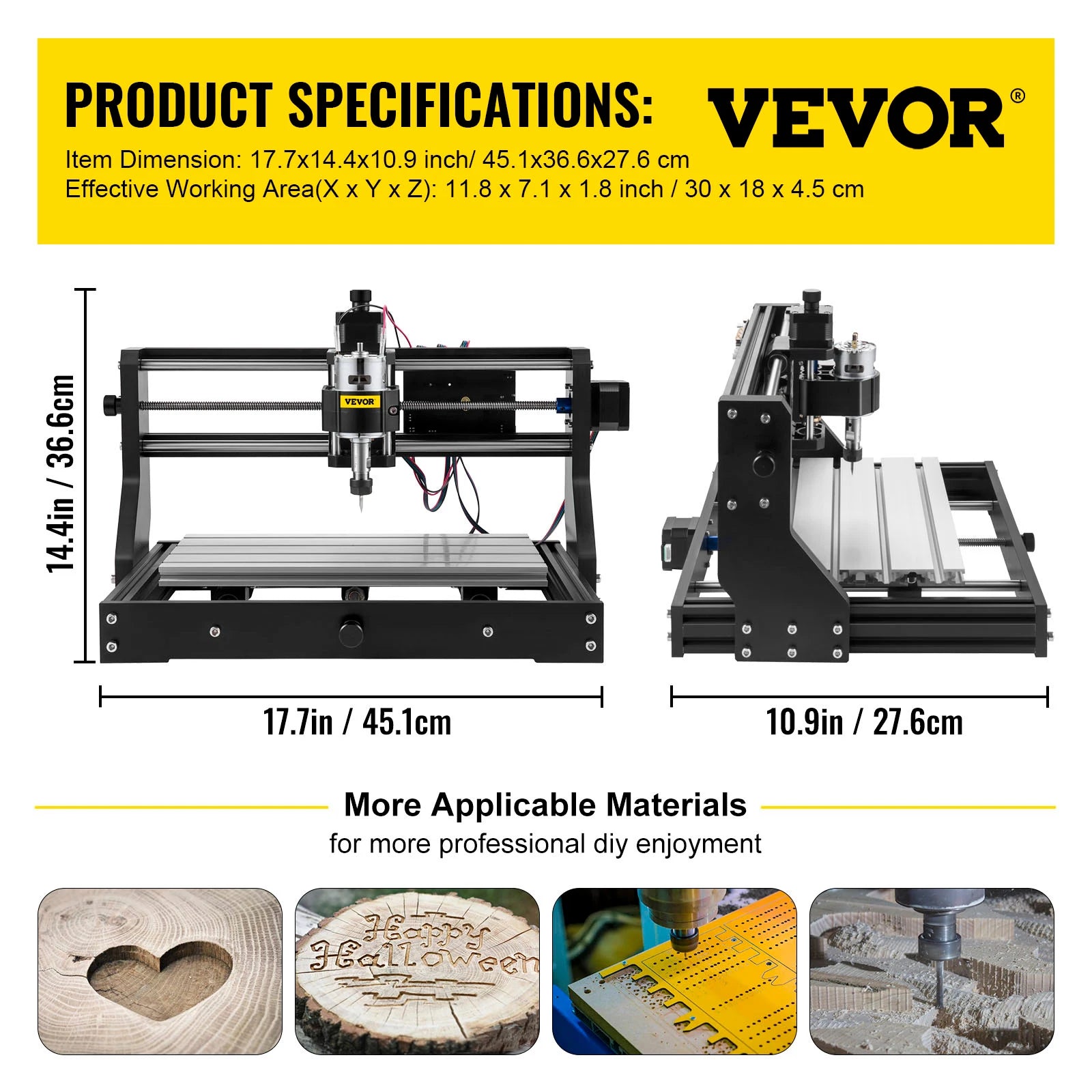

Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

Control: CNC

Supported System: macOS/Windows 7/8/10, Linux

Supported Formats: jpg / bmp / png /dxf

Port: USB port

Spindle: 775 DC(12-24V) 24V

Drive: Stepper motor

Axis: 3 Axis

Support software: Grbl Control

laser: Support laser





Product Description
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.

  • CNC 3018 Router Machine

  • Large Working Area

  • Excellent Motor

  • Upgraded Control Board

  • Sturdy Material

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Note: The machine does not come with a laser module. If necessary, you can purchase our modules to make the engraving machine more efficient.
Key Features

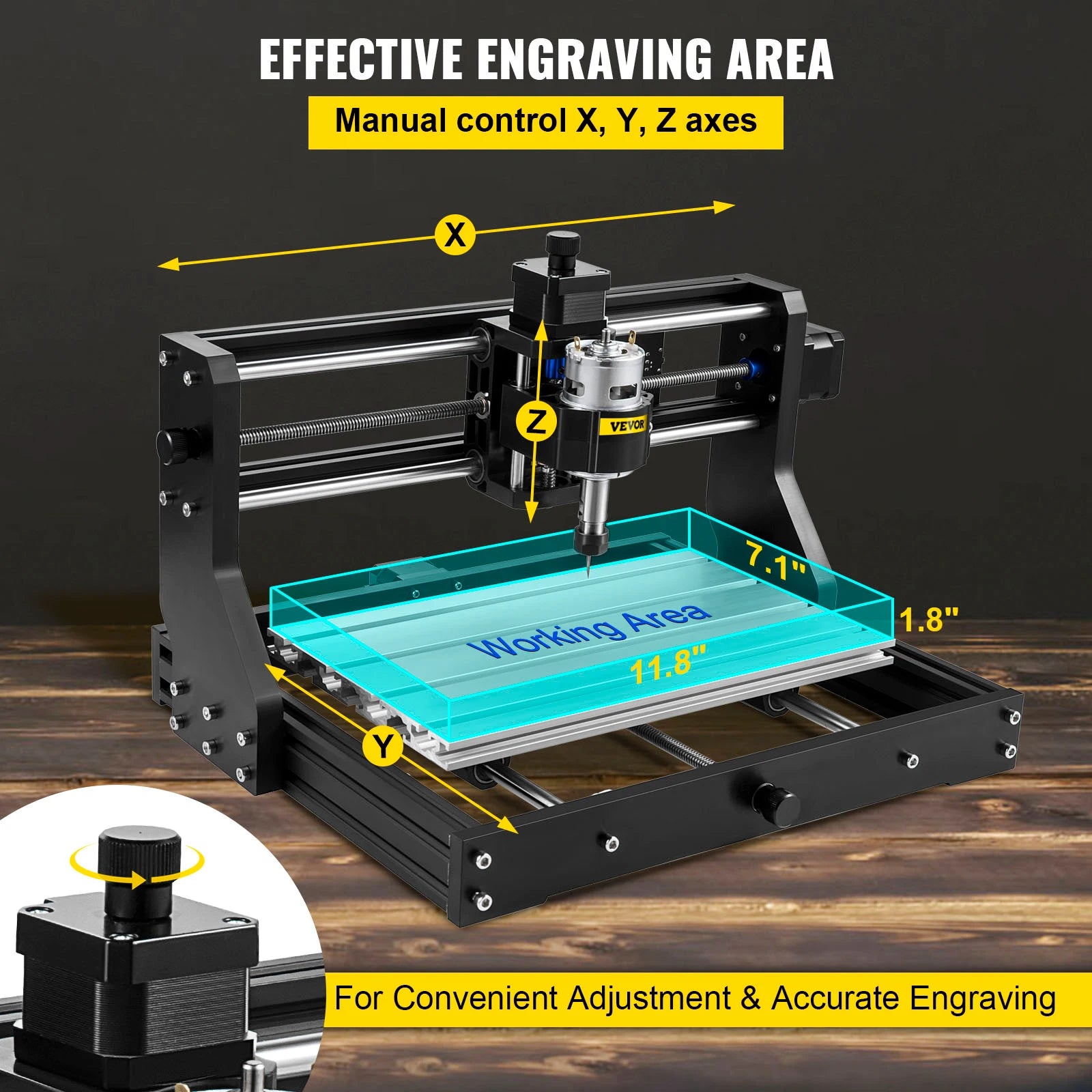

Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
Powerful Motor
There are three stepper motors on three axes for smooth movement. The 775 DC(12-24V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.

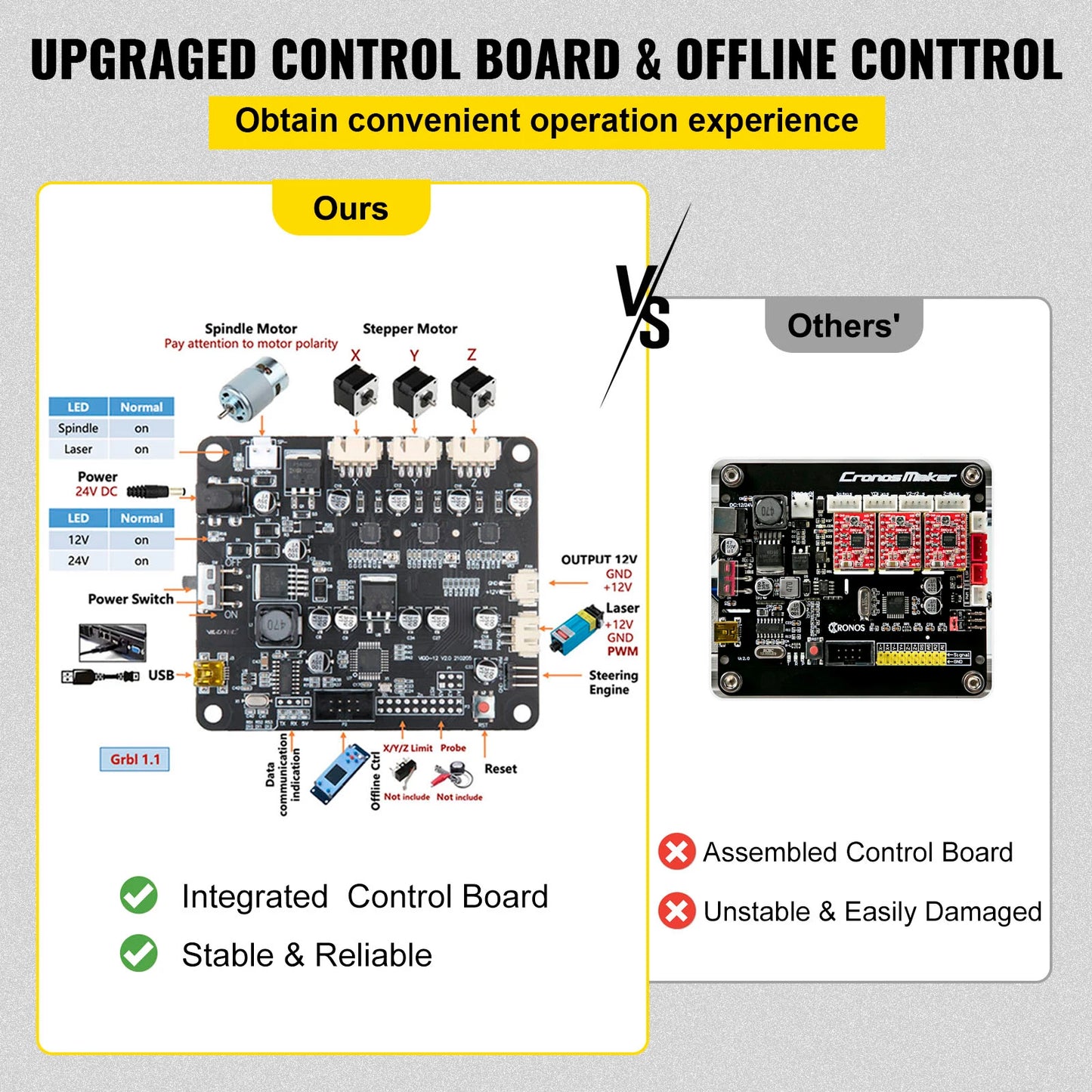

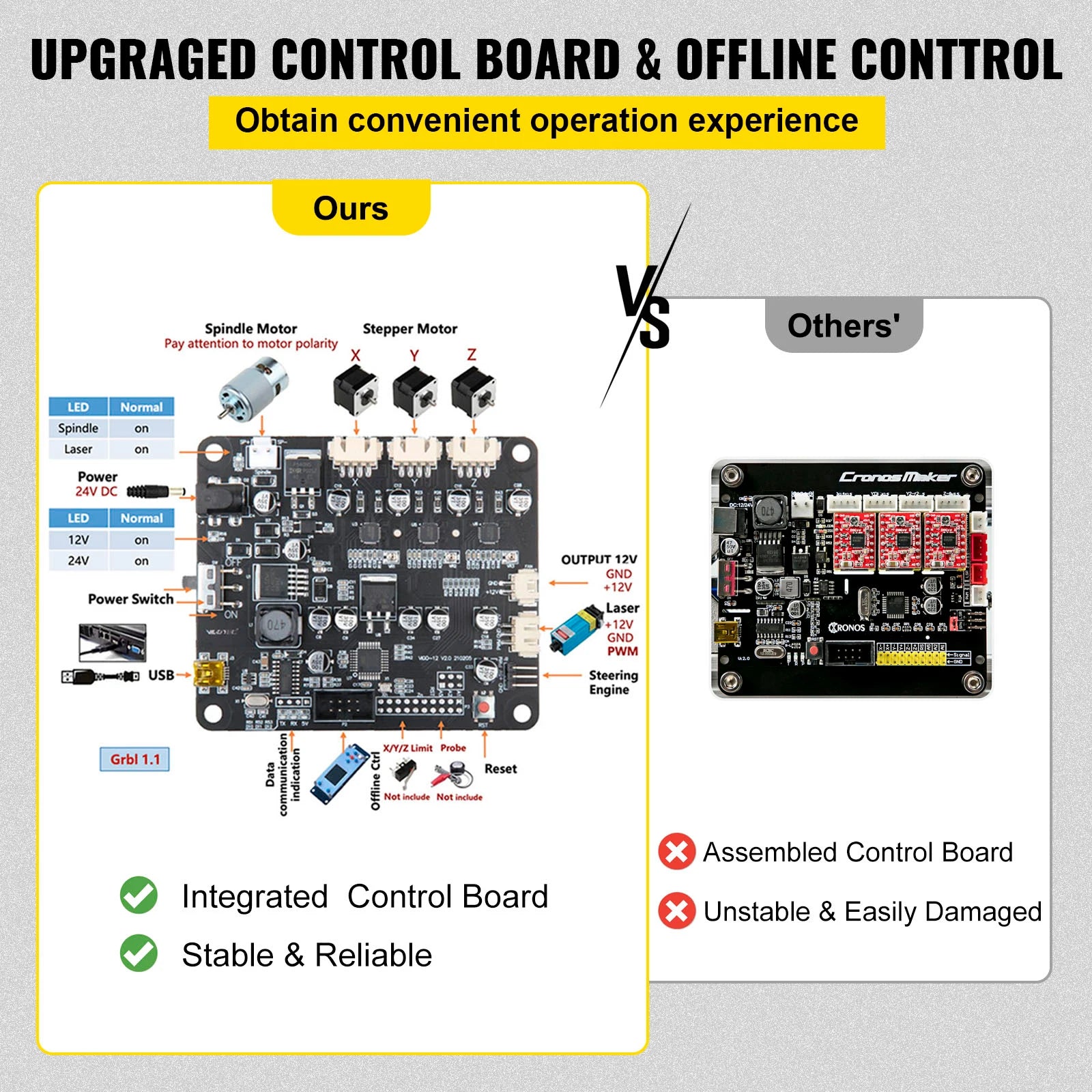

Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy and Bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Specifications

  • Model: VG-S3018 Pro

  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 300 x 180 x 45 mm

  • Materials: Aluminum Profile & Bakelite

  • Input Power: DC 24V 5A

  • Driving Units: Stainless Steel Screws

  • Spindle Speed: 10000 rpm

  • Stepping Motor: 12V; Torque: 0.25 N/m

  • Control Software: GRBL Control

  • Positioning Accuracy: 0.003" / 0.08 mm

  • Supported System: macOS/Windows 7/8/10, Linux

  • Supported Formats: jpg / bmp / png /dxf

  • Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

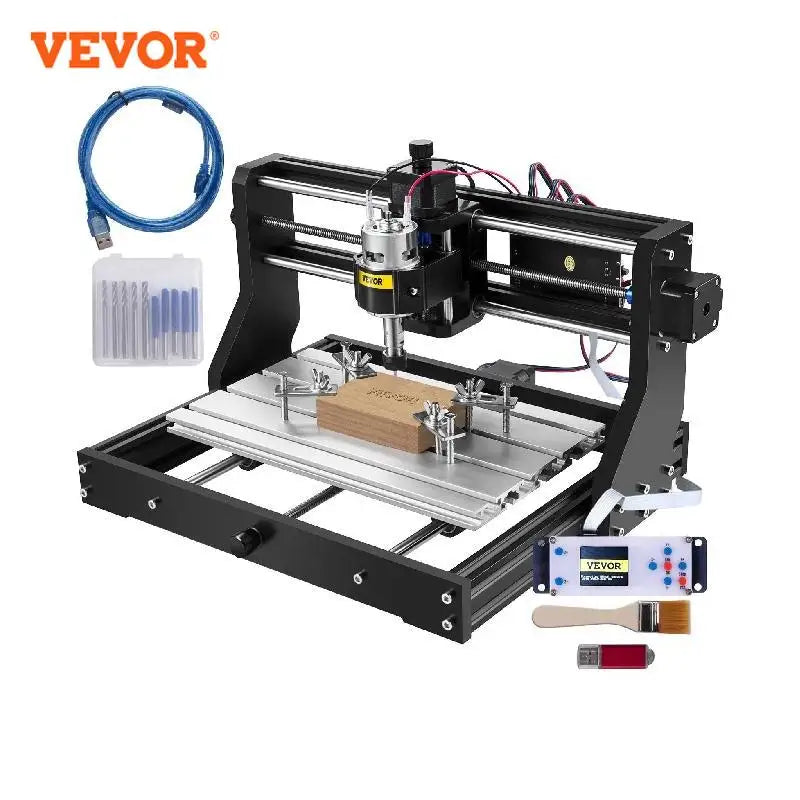

Package Content

  • 1 x 3018 CNC Router Kit

  • 1 x Offline Controller

  • 1 x U-Disk (Software & Instruction)

  • 1 x Set of Milling Cutter

  • 1 x Cable

  • 1 x Brush

  • 1 x Manual

Features & Details

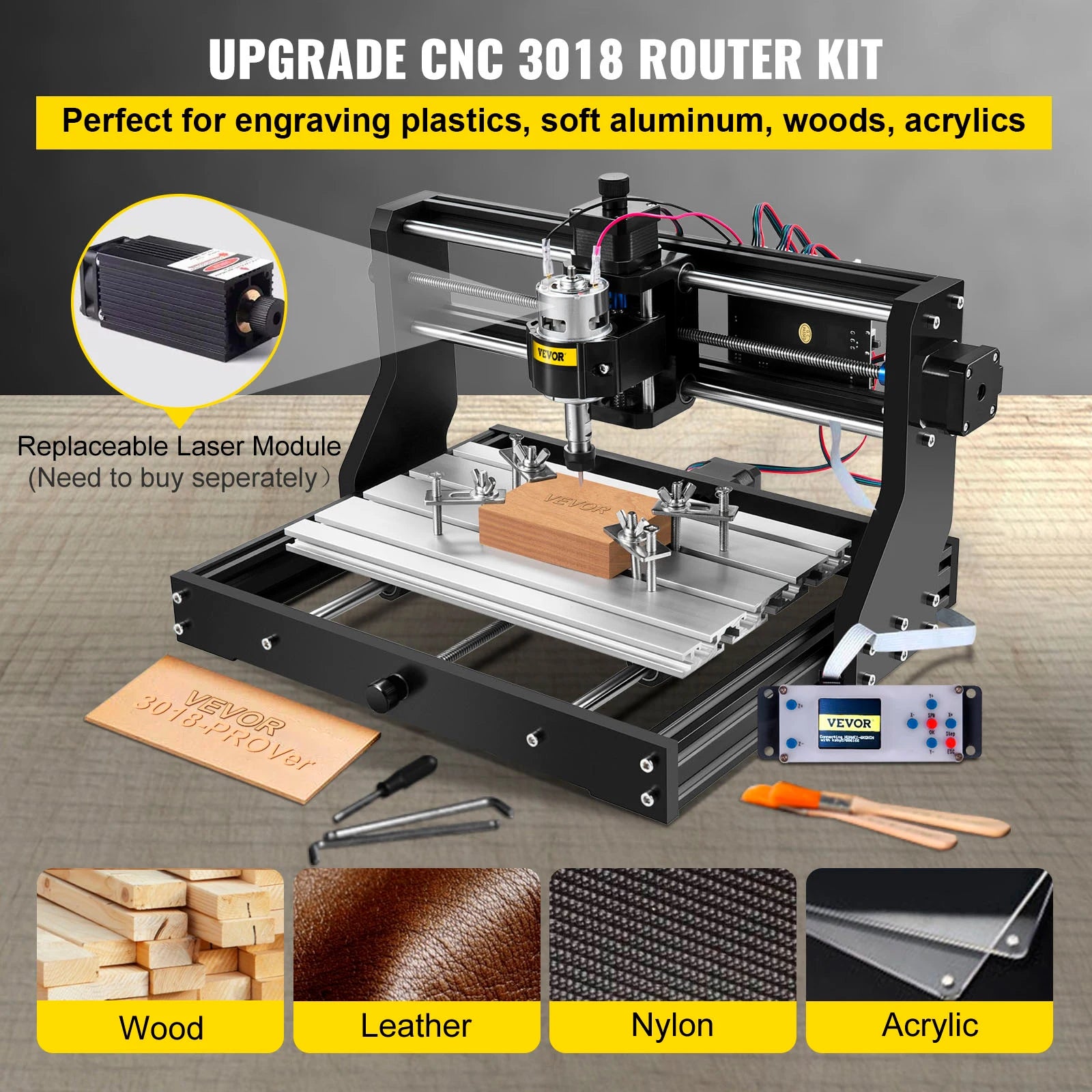

  • CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more. This product does not include a laser head and can be purchased by yourself.

  • Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

  • Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.

  • Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

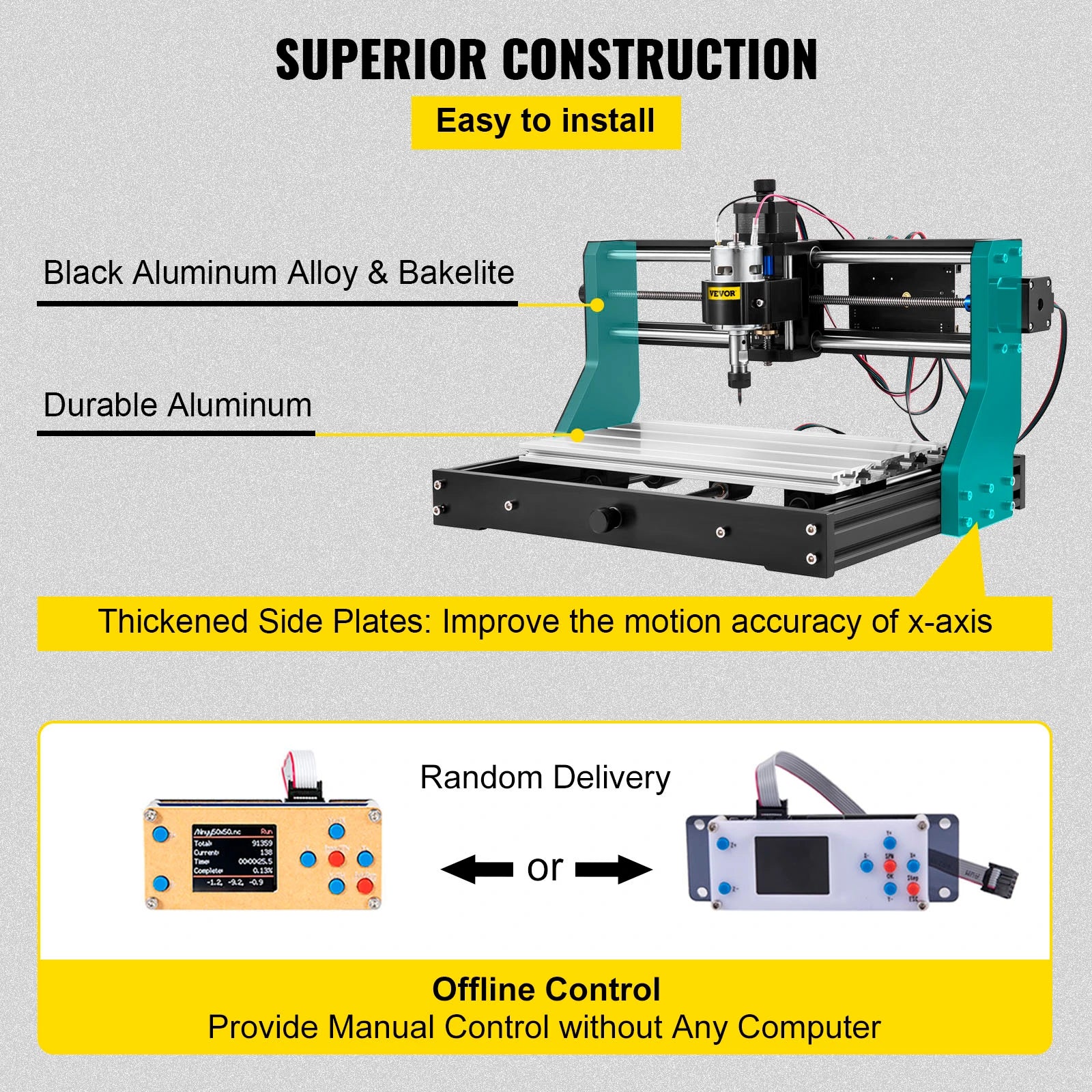

  • Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.


For S3018 CNC engraving machine quick start use demo video, Please check  http://www.vevorengraver.com/3018
Download address: http://www.VevorEngraver.com/3018/download/VevorCNC_v1.0.zip
Important note:
When assembling the machine control motherboard, please note that the plastic pillar must be installed on the back of the motherboard, that is, between the motherboard and the aluminum parts of the rack, otherwise the aluminum parts may cause the motherboard short circuit, causing the motherboard damage or failure to work. Refer to the figure below.
