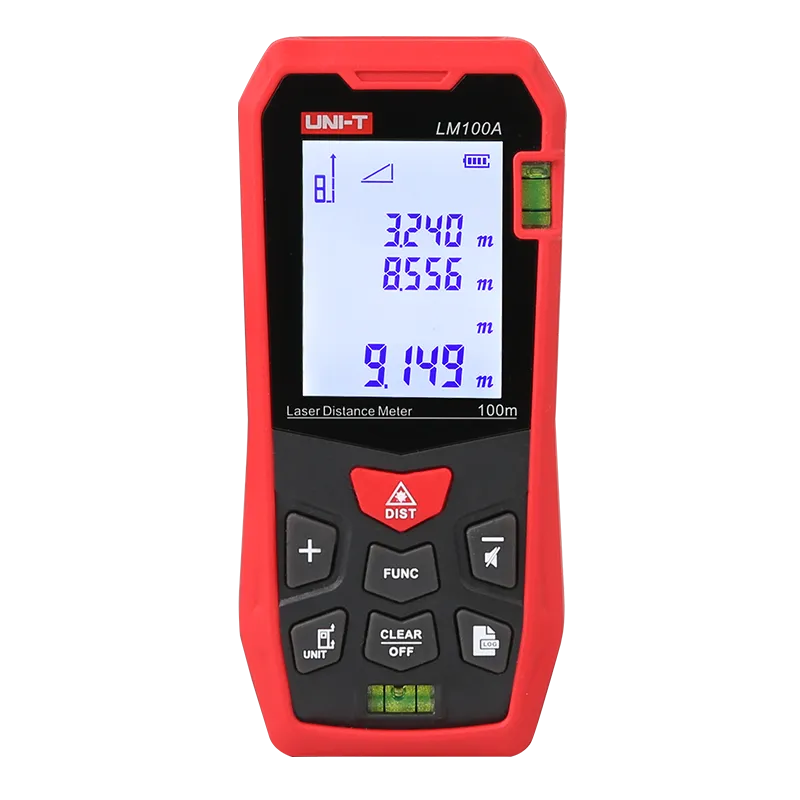

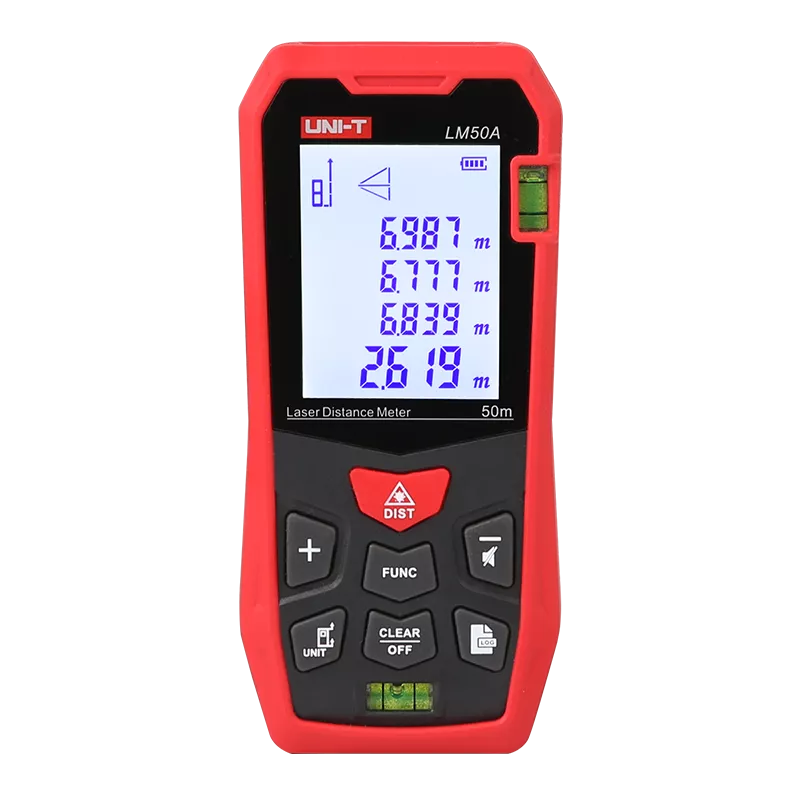

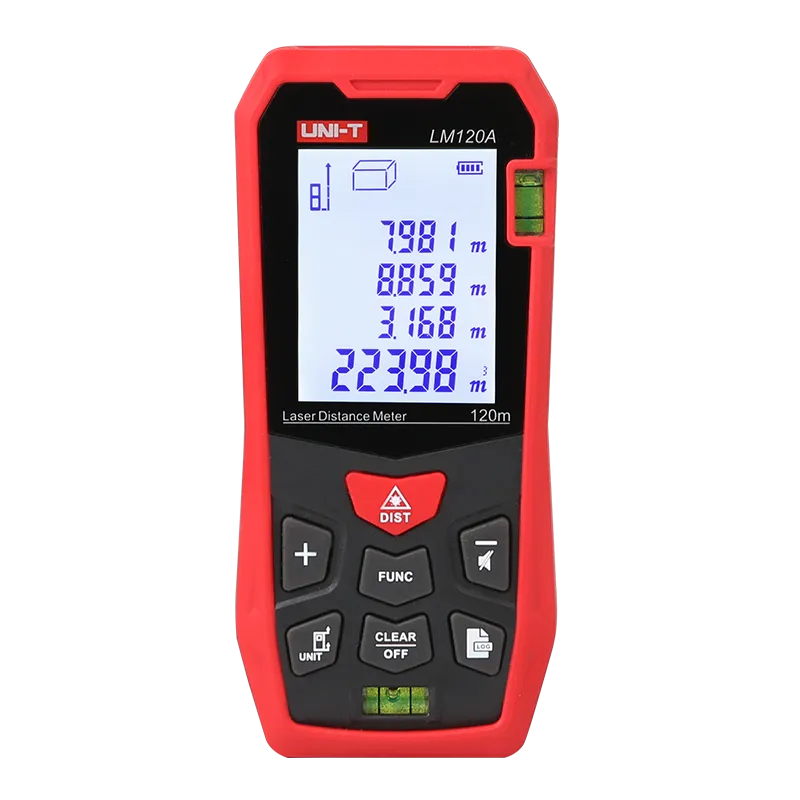

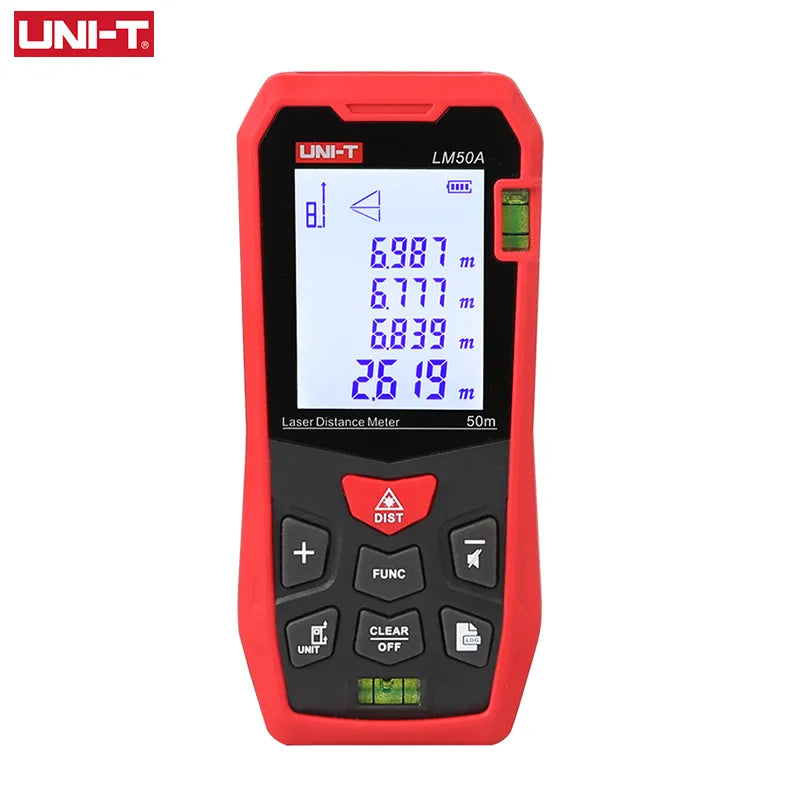

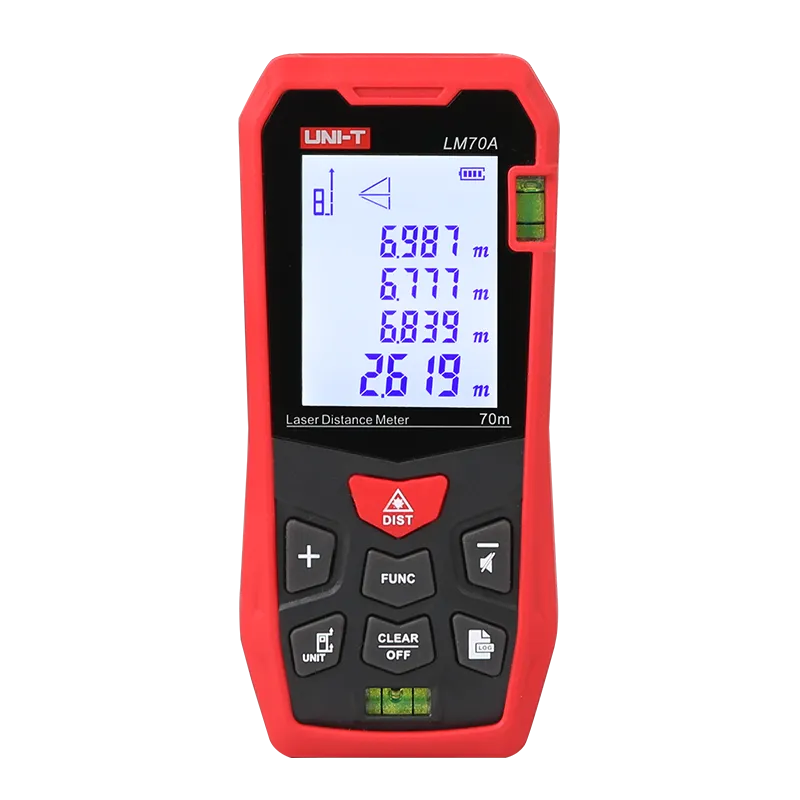

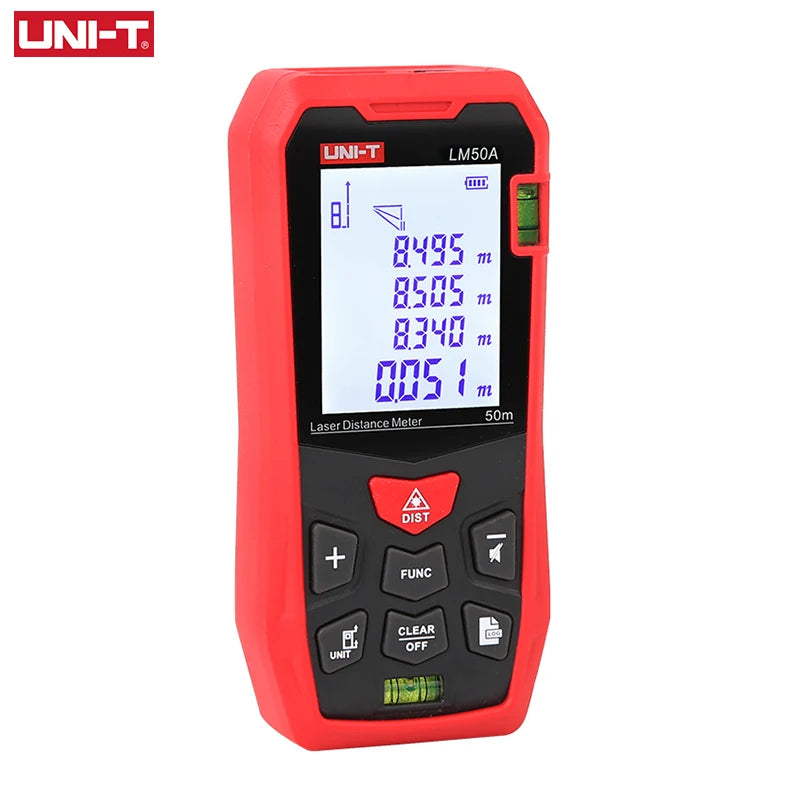

UNI-T Laser Rangefinder LM50A LM70A LM100A LM120A Laser Distance Meter Digital Range Finder Tape Measure
UNI-T Laser Rangefinder LM50A LM70A LM100A LM120A Laser Distance Meter Digital Range Finder Tape Measure
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: UNI-T
Origin: Mainland China
Power Type: Battery-Powered
Certification: RoHS
Model Number: LM50A LM70A LM100A LM120A
Size: 2.0-inches display
Display type: LCD
Min. display unit: 0.001m
Laser class: 2
Measurement units: m/ft/in
Measurement basis: front/rear
Digital Range Finder: Measuring tape

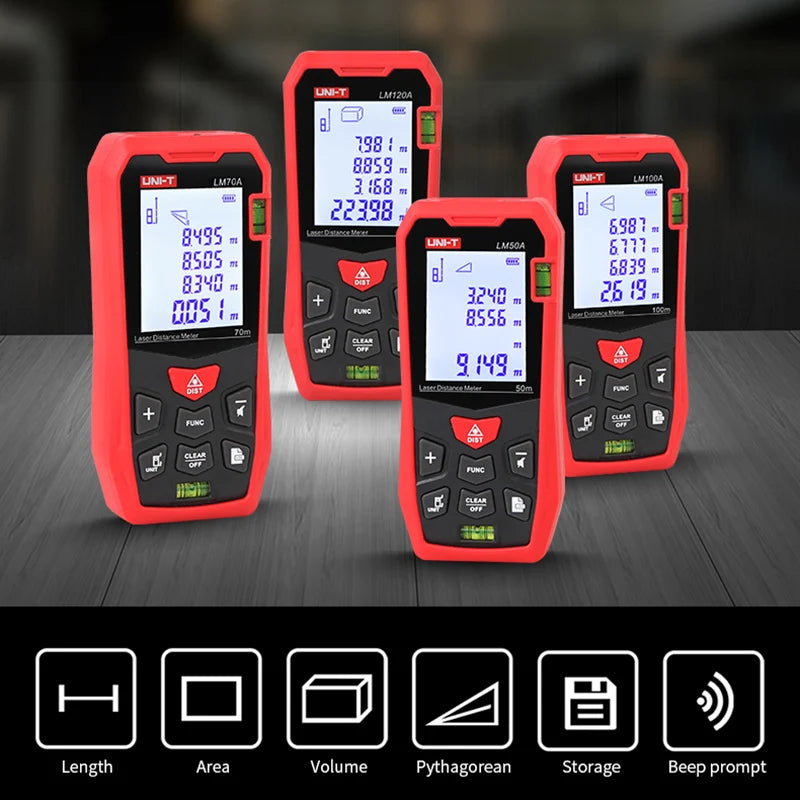

LM-A Series Laser Distance Meter
The new LM A series laser distance meters are new design to measure the distance precisely. It can measure AREA, VOLUME, ADDITION, SUBTRACTION, etc easily. It can also store 99 groups data. These meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, real estate development and so on.
Features
1. Ergonomic exterior, comfortable handling
2. Millimeter accuracy
3. 99 groups data storage
4. Quick, self calculation with real-time readout
5. Physical leveler(Horizontal and vertical)
6. Multiple functions: Max/Min/continuous measurement, data storage, etc
Applications:
The LM A series laser distance meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, real estate development and so on.
Parameter
Specifications |
LM50A |
LM70A |
LM100A |
LM120A |
Certifications |
RoHS |
|||
Display size |
2.0-inches |
|||
Range |
50m |
70m |
100m |
120m |
Display type |
LCD |
|||
Min. display unit |
0.001m |
|||
Measurement units |
m/ft/in |
|||
Measurement basis |
front/rear |
|||
Accuracy |
±(2mm+5 x |
|||
Laser class |
2 |
|||
Laser type |
630~670nm, |
|||
Features |
||||
Single measurement |
√ |
|||
Continuous measurement |
√ |
|||
Max/Min/Area |
√ |
|||
Volume |
√ |
|||
Pythagoras |
√ |
|||
Add/Subtract |
√ |
|||
Self calibration |
√ |
|||
Horizontal bubble |
√ |
|||
Data storage |
99 groups |
|||
Auto power off |
3 minutes without operation |
|||
Auto laser off |
30s without operation |
|||
Storage temperature |
-20℃~60℃ |
|||
Operating temperature |
0℃~40℃ |
|||
General Characterisitics |
||||
Power |
1.5V battery (LR03) x 2(No include) |
|||
Product color |
Red and grey |
|||
Product size |
122mm x 52mm x 29.5mm |
|||
Standard accessories |
Carrying bag |
|||
Standard individual packing |
Gift box, English manual |
|||
Integrated molding

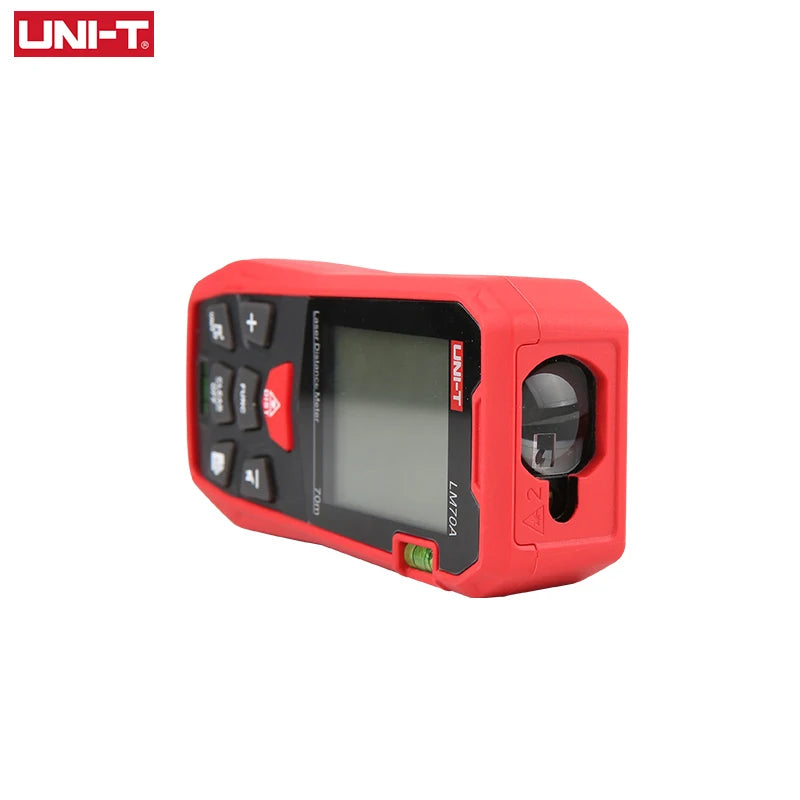

Aspheric optical focuing lens

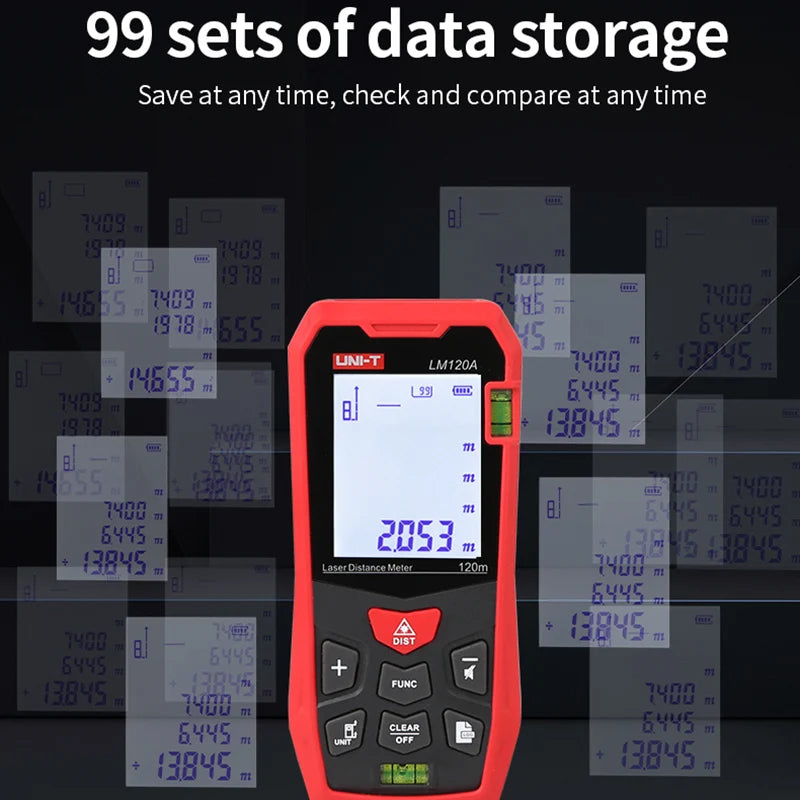

99 sets of data storage
Save at any time, check and compare at any time

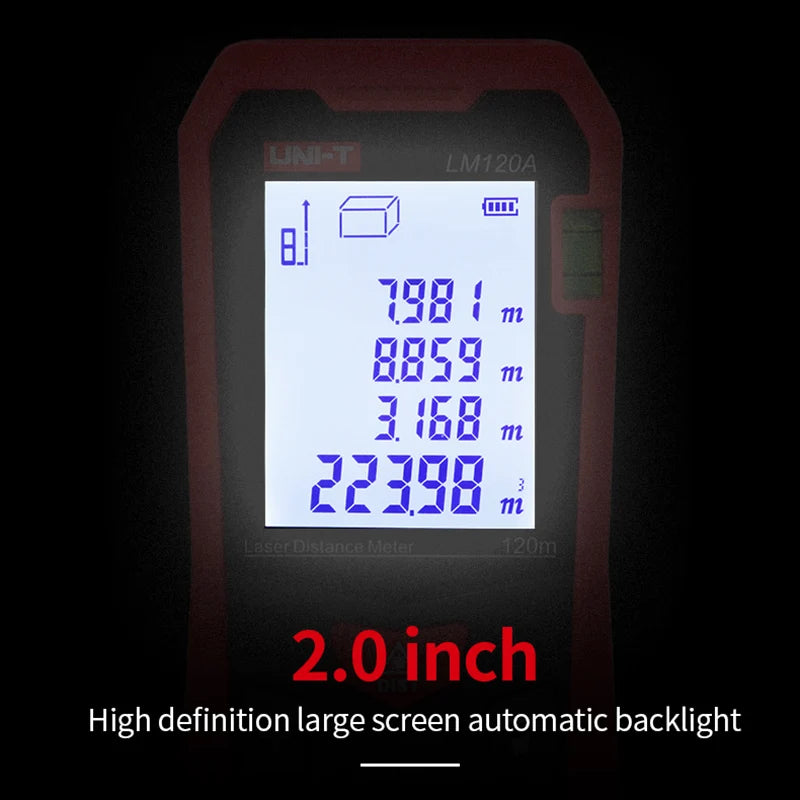

2.0-inches Display
High definition large screen automatic backlight
Double physical horizontal bubble
It is helpful for users to observe the level of their own measurement plane when measuring the distance, so as to ensure the accuracy and reliability of the measured data.
Switch units with one click
In measurement, there are four kinds of unit display for switching, the display order is meter (m), inch (in), foot (FT) and inch plus foot (in + ft), which meet the measurement habits of most users.
2 sections 1.5V are used
AAA battery power supply, more convenient to replace
Notice please: battery no include!
