SPECIFICATIONS

Brand Name: TZT

Origin: Mainland China

Tube Chip Color: Red

Model Number: Display TM1637

is_customized: Yes

Usage: Outdoor

Display Function: Graphics

Pixels: 16mm

Functions: Electronic Module

Range of application: Switch And Sensor For Arduino STM

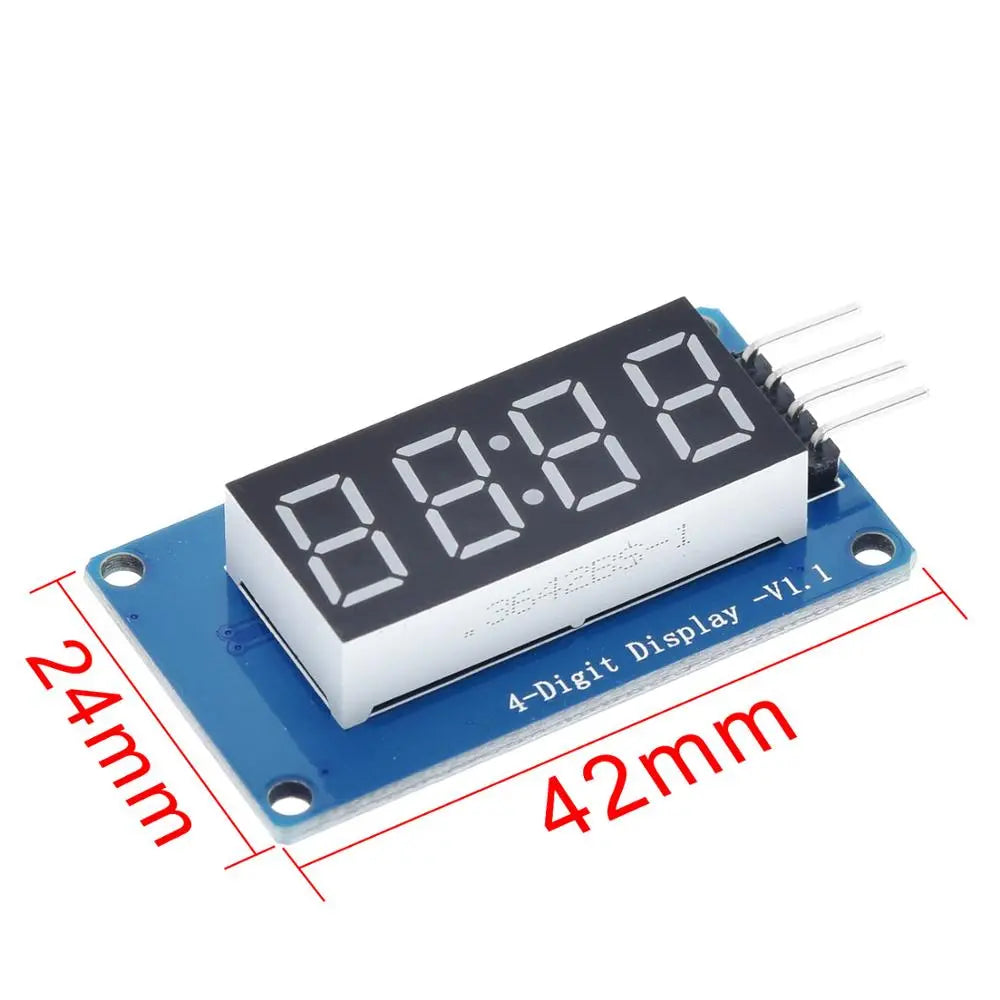

The module is a 12-foot clock with 4 points of positive digital (0.36 inches) display module driver IC TM1637, only two signal lines can make SCM four 8-segment LED.



Module features are as follows:



Display of male red for the four digital tube



Adjustable digital tube 8 gray



Level control interface for 5V or 3.3V



4 M2 screws positioning holes for easy installation





4 digital display interface module as shown below:

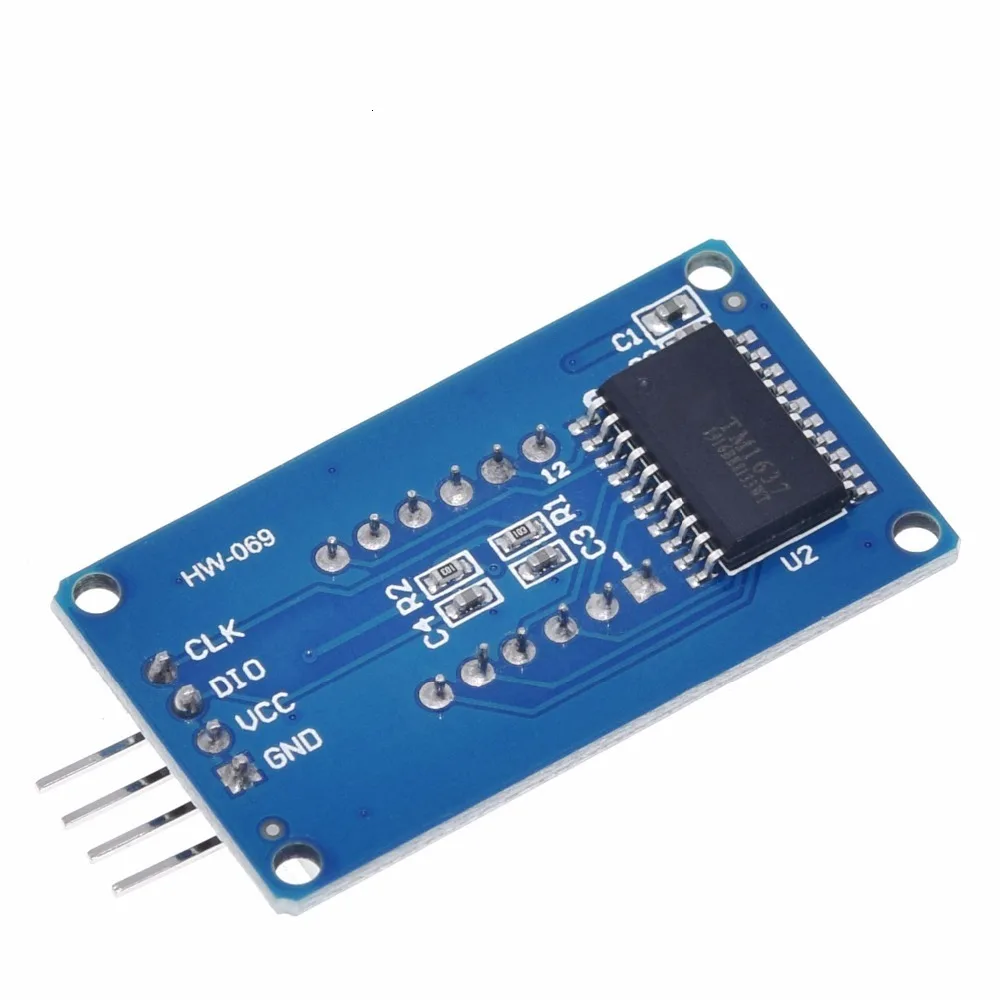

Control Interface: A total of four pins (GND, VCC, DIO, CLK), GND to ground, VCC is the power supply, DIO of data input and output pin, CLK is the clock signal pin;

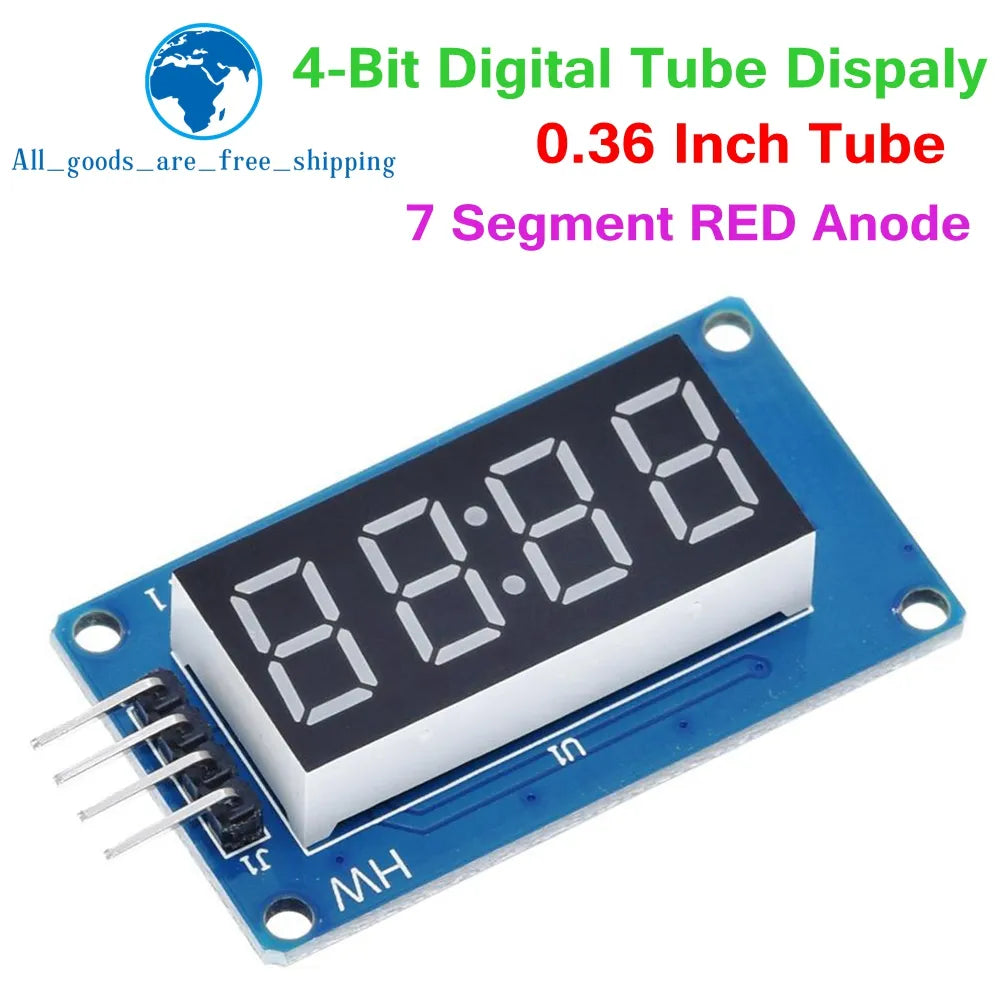

Digital tube: 4 common anode score points with 0.36 inches LED, red highlights;



Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination;
