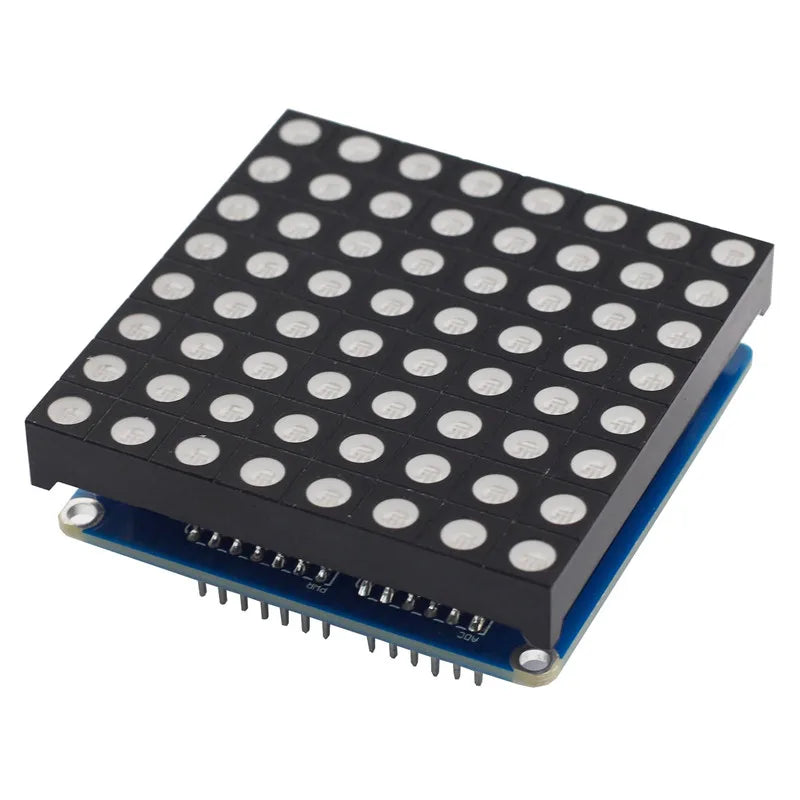

Full Color RGB LED Matrix Driver Shield + RGB Matrix Screen

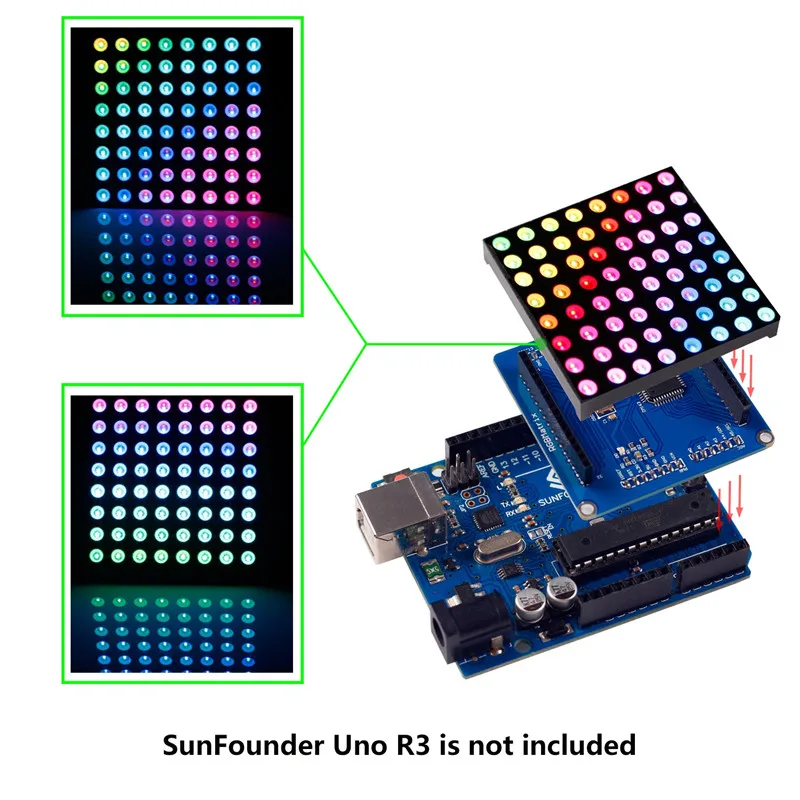

1. A simplified version of Colordruino: functions just like the Colorduino, except that it's not supporting cascading; code completely compatible. Just plug the module onto a Uno board (Arduino, SunFounder, or other compatibles) for use

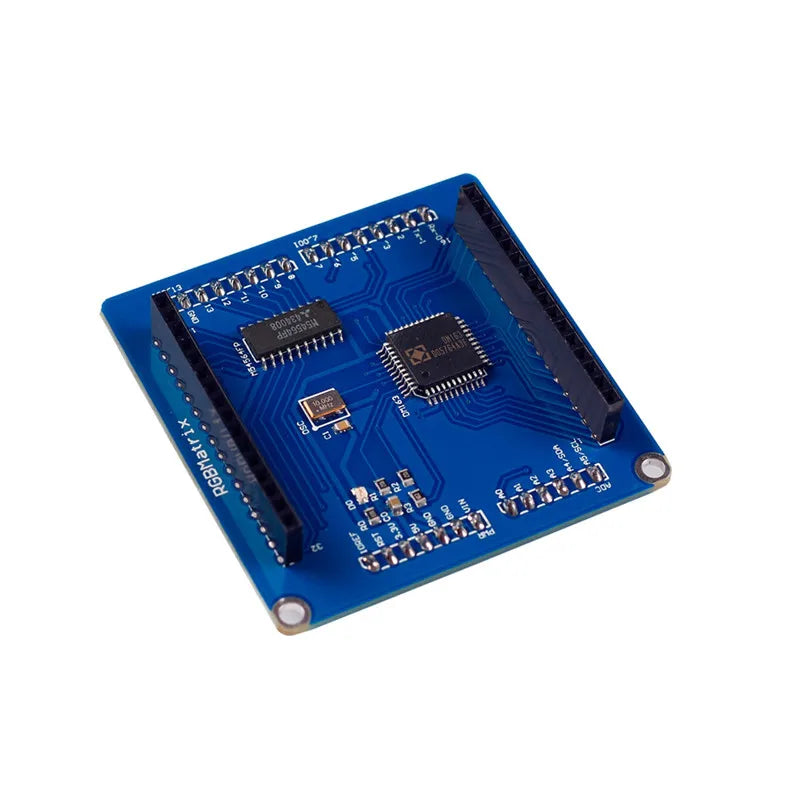

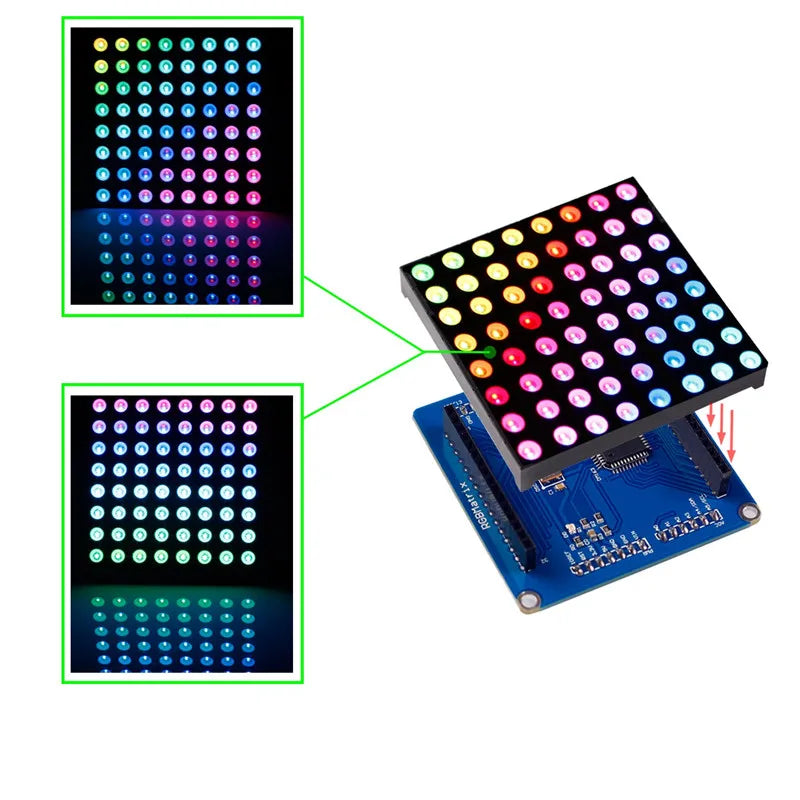

2. Use DM163 as the driver chip on the driver shield; just plug the 8x8 LED dot matrix screen on the shield for use; support at most 256 x 256 x 256 = 16,777,216 colors

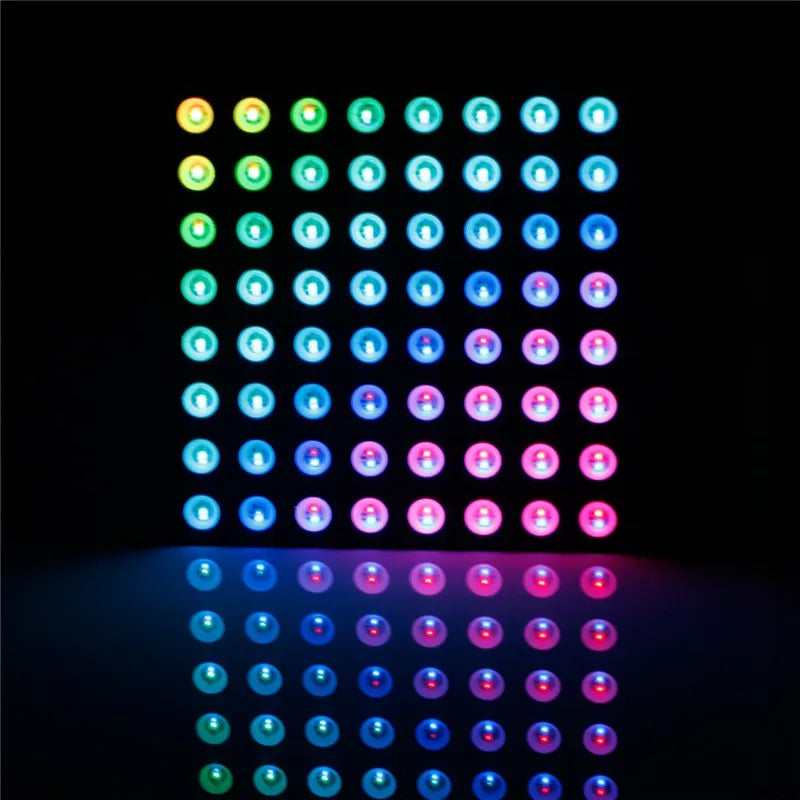

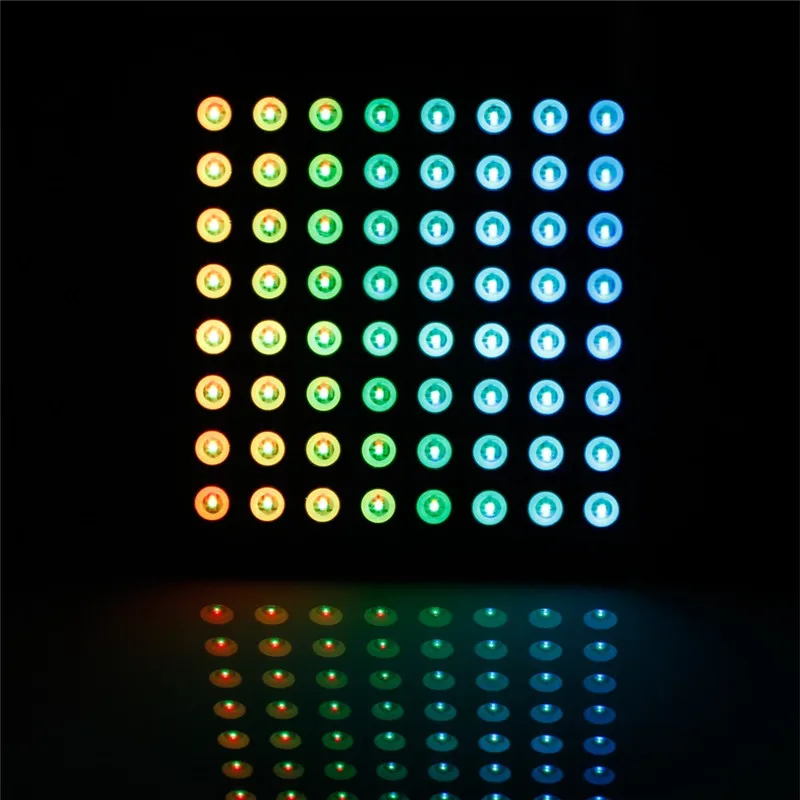

3. Support display of both the three primary colors, red, green, blue, separately and their mixed colors

4. Working current: ≤300mA; operating temperature range: -10degree ~ +50degree

5. Working voltage: 5V DC; PCB size: 6.0 x 6.0 cm

Technical Details
• Support power supply by SunFounder/Arduino/other compatible Uno board or an external independent source
• Display characters of a normal format and also contra-rotating 90 degrees

More materials:http://wiki.sunfounder.cc/index.php?title=Full_Color_RGB_LED_Matrix_Driver_Shield_%2B_RGB_Matrix_Screen

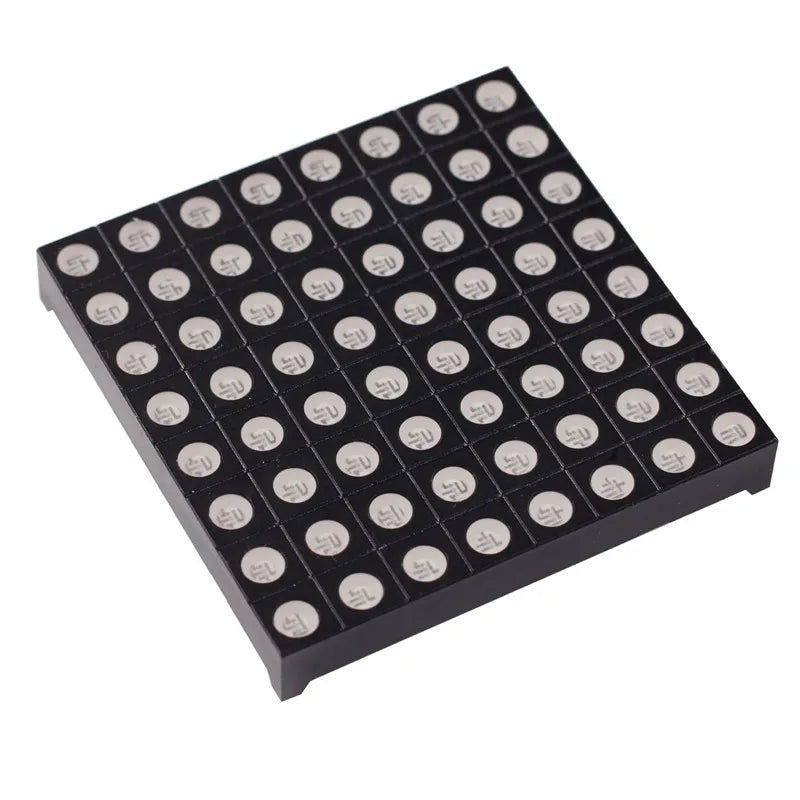

- 1 * RGB dot matrix screen
- 1 * RGB Dot Matrix Driver Shield

Note:
1) The shield only supports a common-anode LED dot matrix screen
2) The shield itself does not support any functions; it needs to be plugged onto a Uno board for normal use.
