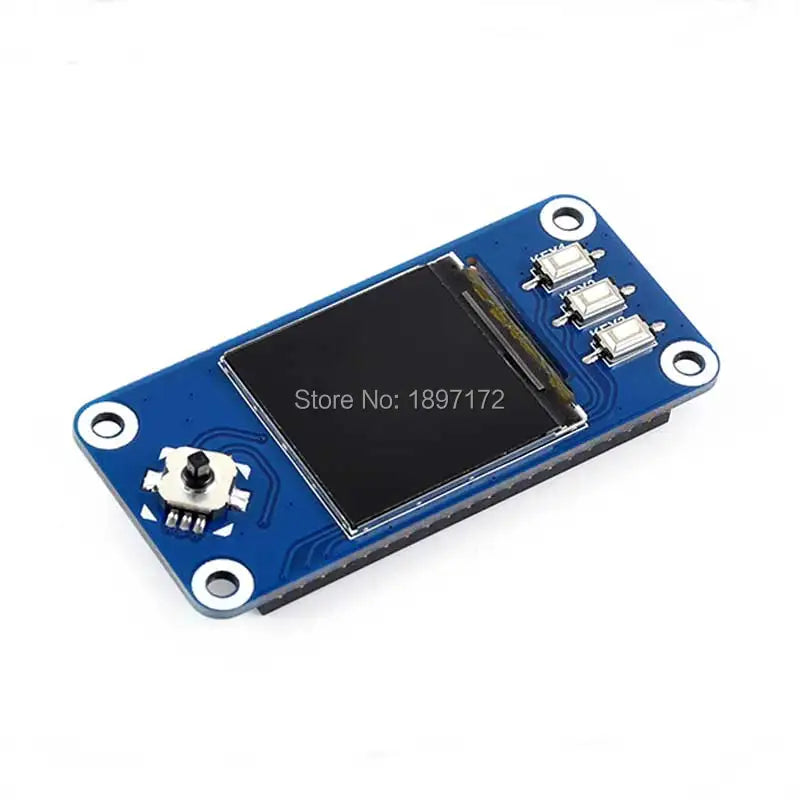

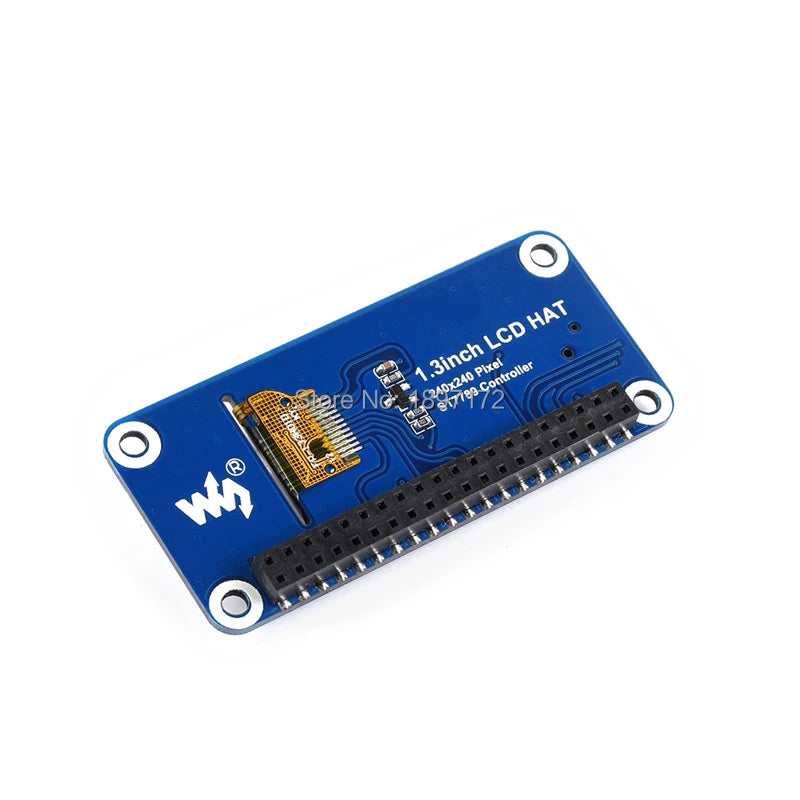

raspberry pi zero w 1.3inch IPS LCD 240x240 display PI3B+/4B

Name: raspberry pi zero w 1.3inch IPS LCD 240x240 display PI3B+/4B
Brand: Geek Barn
Price: 21.98 AUD
Availability: InStock

$21.98 AUD

Sale Sold out

Tax included.

Default Title Default Title

Product variants

Quantity

SPECIFICATIONS

Brand Name: Waveshare

Demo Board Type: ARM

Origin: Mainland China

Function

Do not include Raspberry Pi

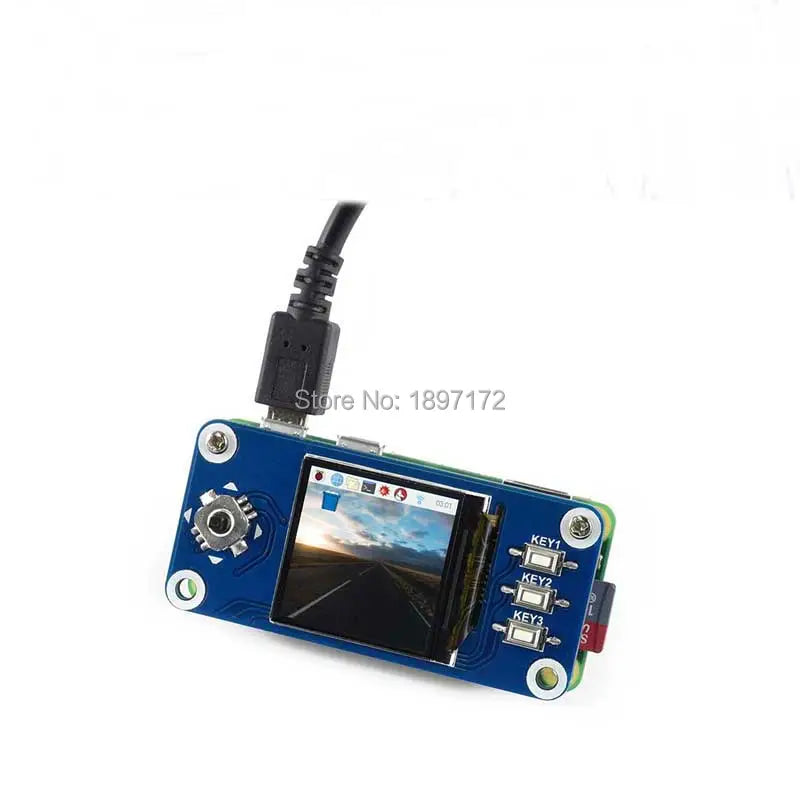

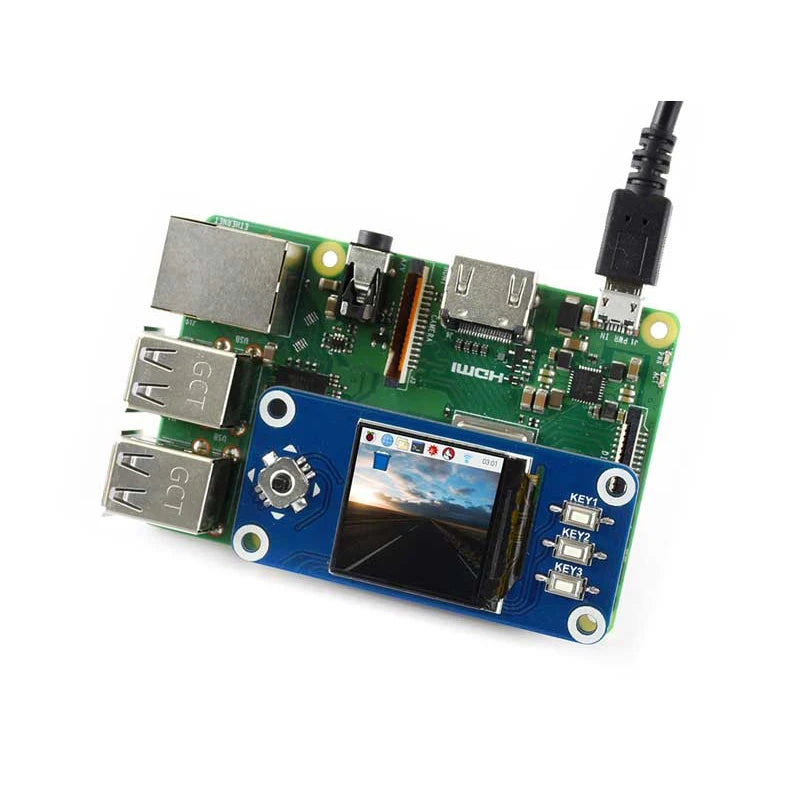

Standard Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
IPS screen, wide viewing angle, better display
High definition in small size
1x joystick, 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

SYMBOL	Raspberry Pi PIN (BCM)	DESCRIPTION
KEY1	P21	Button 1/GPIO
KEY2	P20	Button 2/GPIO
KEY3	P16	Button 3/GPIO
Joystick Up	P6	Joystick Up
Joystick Down	P19	Joystick Down
Joystick Left	P5	Joystick Left
Joystick Right	P26	Joystick Right
Joystick Press	P13	Joystick Press
SCLK	P11/SCLK	SPI clock input
MOSI	P10/MOSI	SPI data input
DC	P25	Data/Command selection (high for data, low for command)
CS	P8/CE0	Chip selection, low active
RST	P27	Reset, low active
BL	P24	Backlight


SIZE

Package Contains
