【Overview】

[] RP2040-GEEK is a geeks development board designed by Waveshare, onboard USB-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port.

【Features】

[] RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

[] Onboard 3PIN SWD port for connecting the debugged target board

Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers

Works with OpenOCD and other tools supporting CMSIS-DAP

Adopts the Raspberry Pi 3PIN Debug Connector Specification

[] Onboard 3PIN USB to UART bridge

[] Onboard 4PIN I2C port for the testing target board

[] Onboard 1.14inch 240×135 pixels 65K color IPS LCD display

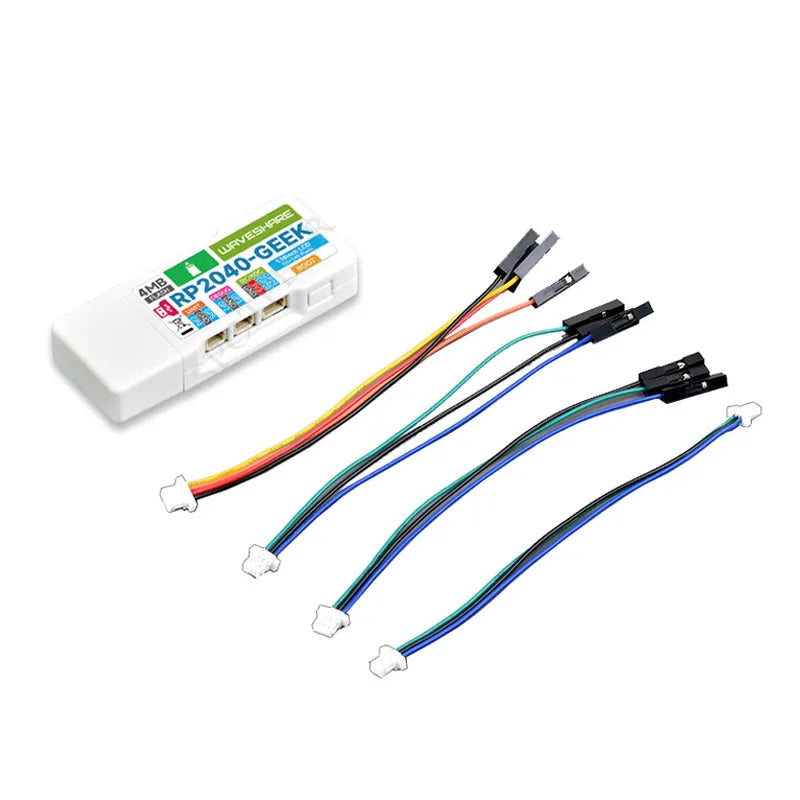

[] Equipped with plastic case and cables

[] Open-source firmware, more convenient to upgrade

【Combines Multi Functions In One】

[] Onboard Multi Interfaces And 1.14inch LCD Display, Compatible With Multi Debugging Methods

【Application Example】

[] Connect To The Debugging Interface Of Pico Via The 3PIN SWD Cable

【Onboard Resources】

1. USB-A interface

2. UART port

3. SWD port

4. I2C port

5. TF card slot: Supports SDIO interface and SPI interface communication

6. W25Q32JVSSIQ: 4MB NOR-Flash

7. RP2040

8. BOOT button
