Raspberry Pi CM4 Nano Base Board (B) USB CSI DSI Mini HDMI-Compatible Gigabit Ethernet RJ45 Same Size as the CM4 for RPI

Raspberry Pi CM4 Nano Base Board (B) USB CSI DSI Mini HDMI-Compatible Gigabit Ethernet RJ45 Same Size as the CM4 for RPI

$32.96 AUD
$32.96 AUD
Sale Sold out
Tax included.
Bundle
Ships From

SPECIFICATIONS

Brand Name: SHCHV

Demo Board Type: ARM

Origin: Mainland China

CM4 SOCKET: suitable for all variants of Compute Module 4

NETWORKING: Gigabit Ethernet RJ45 connector

USB: USB 2.0 Type A connector x 1

DISPLAY: DISPLAY

Model: CM4-NANO-A /CM4-NANO-B /CM4-NANO-C

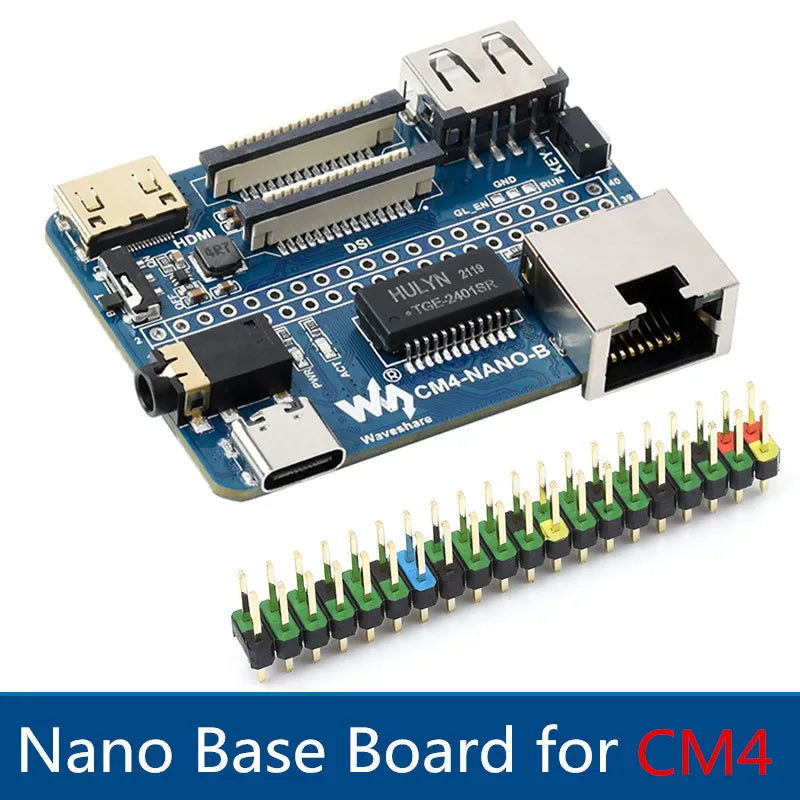

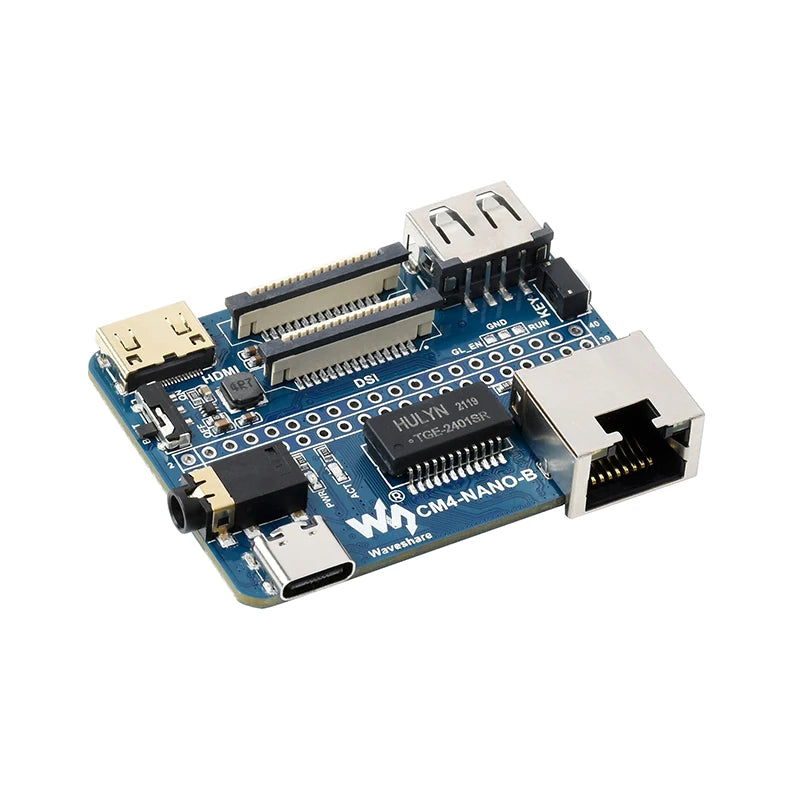

Nano Base Board (B) For Raspberry Pi Compute Module 4, Same Size As The CM4
Nano Base Board (B) For CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC

Compact, Yet Complete

Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack...
All In The Compact Body Just As The Size Of CM4

Note: the CM4 is NOT included. Please buy it separately if necessary.
Specifications

CM4 SOCKET

suitable for all variants of Compute Module 4

NETWORKING

Gigabit Ethernet RJ45 connector

CONNECTOR

Raspberry Pi 40PIN GPIO header × 1

USB

USB 2.0 Type A connector × 1

DISPLAY

MIPI DSI port × 1 (15pin 1.0mm FPC connector)

CAMERA

MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)

VIDEO

Mini HDMI port × 1, supports 4K 30fps output

AUDIO

3.5mm jack

STORAGE

Micro SD card socket for Compute Module 4 Lite (without eMMC) variants

POWER INPUT

5V

DIMENSIONS

56 × 41mm

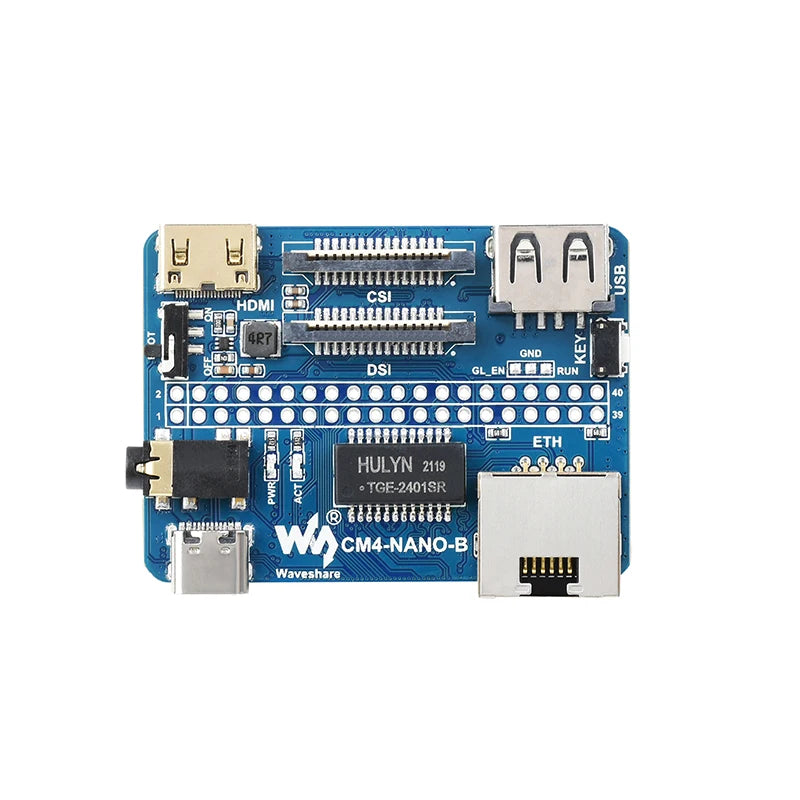

What's On Board

  1. CM4 socket
    suitable for all variants of Compute Module 4

  2. Micro SD card slot
    for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)

  3. 40PIN GPIO header
    for connecting sorts of HATs

  4. Gigabit Ethernet RJ45 connector

  5. Power supply / Programming
    5V power supply, or used for eMMC burning

  6. 3.5mm audio jack

  7. User button

  8. USB2.0 connector
    for connecting sorts of USB devices

  1. CSI connector
    MIPI CSI camera interface

  2. DSI connector
    MIPI DSI display interface

  3. MP1658

  4. Mini HDMI connector
    supports 4K 30fps output

  5. BOOT switch
    ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
    OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

Outline Dimensions

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

PACKAGE CONTENT

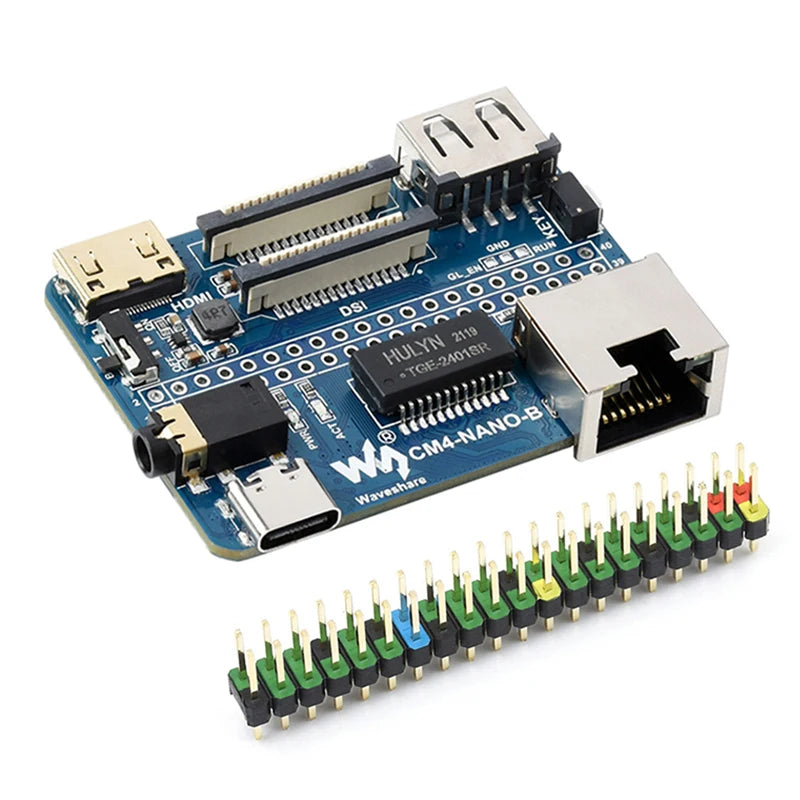

1.CM4-NANO-B x1
2.2*20PIN color-coded straight pinheader x1
1
2

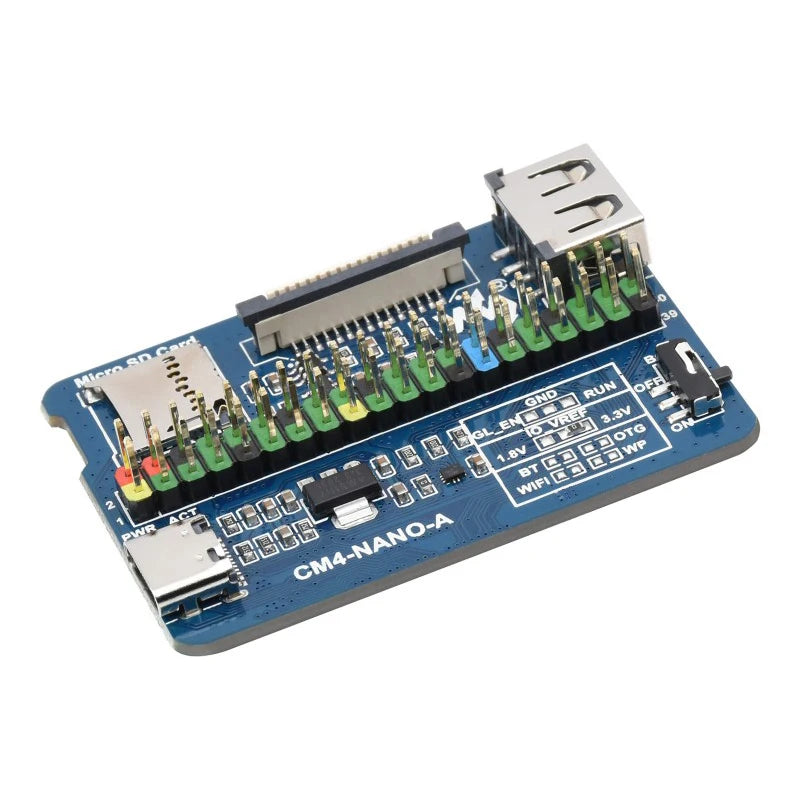

Nano Base Board (A) For Raspberry Pi Compute Module 4, Same Size As The CM4

Nano Base Board (A) For CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC

Same Size As The CM4

Standard CM4 Socket, With Multiple Peripheral Interfaces, Suitable For Narrow Application Environment

Note: the CM4 is NOT included. Please buy it separately if necessary.
Specifications

CM4 SOCKET

suitable for all variants of Compute Module 4

CONNECTOR

Raspberry Pi 40PIN GPIO interface × 1

USB

USB 2.0 Type A interface × 1

CAMERA

MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)

STORAGE

Micro SD card socket for Compute Module 4 Lite (without eMMC) variants

POWER INPUT

5V

DIMENSIONS

55 × 40mm
What's On Board

  1. CM4 socket
    suitable for all variants of Compute Module 4

  2. Power supply / Programming
    5V power supply, or used for eMMC burning

  3. Micro SD card slot
    for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)

  4. CSI interface
    1 × MIPI CSI camera interface

  5. USB2.0 interface
    for connecting sorts of USB devices

  1. 40PIN GPIO interface
    suitable for connecting to various HAT modules

  2. PWR indicator
    CM4 power status

  3. ACT indicator
    CM4 working status

  4. AMS1117-3.3

  5. BOOT switch
    ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
    OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

Outline Dimensions

PACKAGE CONTENT

  1. CM4-NANO-A x1

  2. 2*20PIN color-coded straight pinheader x1


1 2

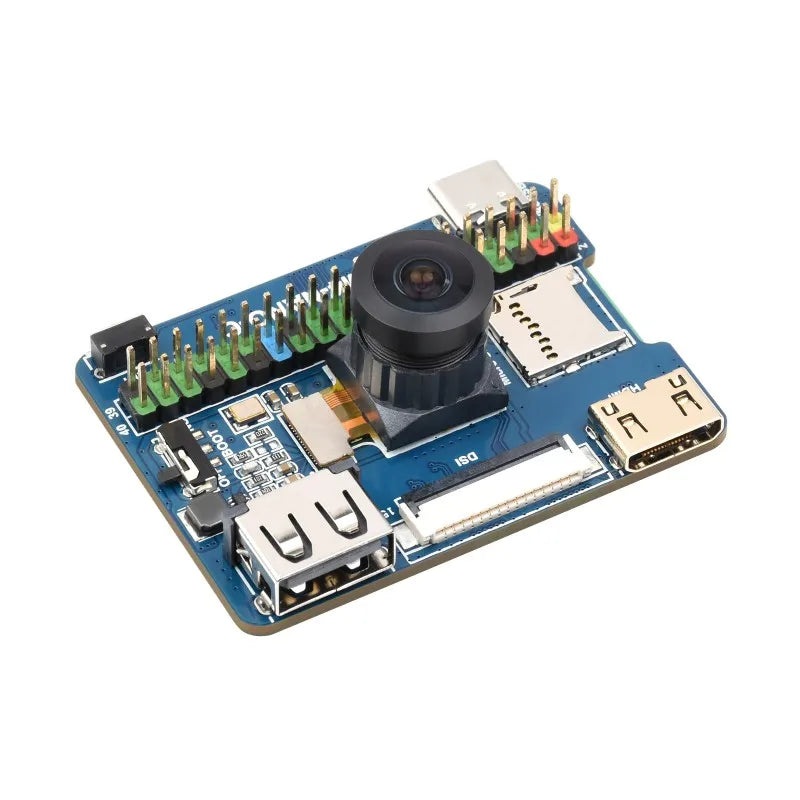

Nano Base Board (C) For Raspberry Pi Compute Module 4, Same Size As The CM4, Onboard 8MP Camera
Nano Base Board (C) For CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC


Multiple Interfaces, Onboard 8MP Camera

Same Size As The CM4, Standard CM4 Socket, With Multiple Peripheral Interfaces
Onboard 8MP Camera Module With 160°FOV To Meet Your Needs In The Application

for reference only, the CM4 is NOT included.

Specifications

CM4 SOCKET

suitable for all variants of Compute Module 4

CONNECTOR

Raspberry Pi 40PIN GPIO header × 1

USB

USB 2.0 Type A port × 1

DISPLAY

MIPI DSI port × 1 (15pin 1.0mm FPC connector)

CAMERA

IMX219-D160 (8MP, 160°FOV)

VIDEO

Mini HDMI port × 1, supports 4K 30fps output

STORAGE

TF card socket for Compute Module 4 Lite (without eMMC) variants

POWER INPUT

5V

DIMENSIONS

55.0 × 40.0mm

Application Example
for reference only, please refer to the part list for detailed package content.

What's On Board

  1. CM4 socket
    suitable for all variants of Compute Module 4

  2. Mini HDMI port
    supports 4K 30fps output

  3. DSI port
    MIPI DSI display interface

  4. USB2.0 port
    for connecting sorts of USB devices

  5. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)

  6. Power supply / Programming
    5V power supply, or used for eMMC burning

  7. 40PIN GPIO header
    for connecting sorts of HATs



  1. IMX219-D160 Camera
    8MP, 160° FOV

View full details
