Raspberry Pi 3B+/ 4 Model B 4B PoE HAT Power over Ethernet HAT 802.3af-compliant

Raspberry Pi 3B+/ 4 Model B 4B PoE HAT Power over Ethernet HAT 802.3af-compliant

$22.10 AUD
$22.10 AUD
Sale Sold out
Tax included.
Bundle

SPECIFICATIONS

Demo Board Type: ARM

Origin: Mainland China

Certification: CE


Note: Do not include Raspberry Pi, Please Buy alone.

       Overview

  • The PoE HAT (E) is an 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

        Features

  • Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case

  • PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant

  • Fully isolated switched-mode power supply (SMPS)

  • Adopt a more compact component layout scheme, smaller and the more flexible

        Specifications

  • POE POWER INPUT: 37V ~ 57V DC in

  • POWER OUTPUT: 5V 2.5A DC out

  • NETWORK STANDARD: IEEE 802.3af PoE

  • DIMENSIONS: 65.00 × 32.00mm

For Use With Raspberry Pi 3B+/4B

Compatible With Official Case

Working With Cooling FAN

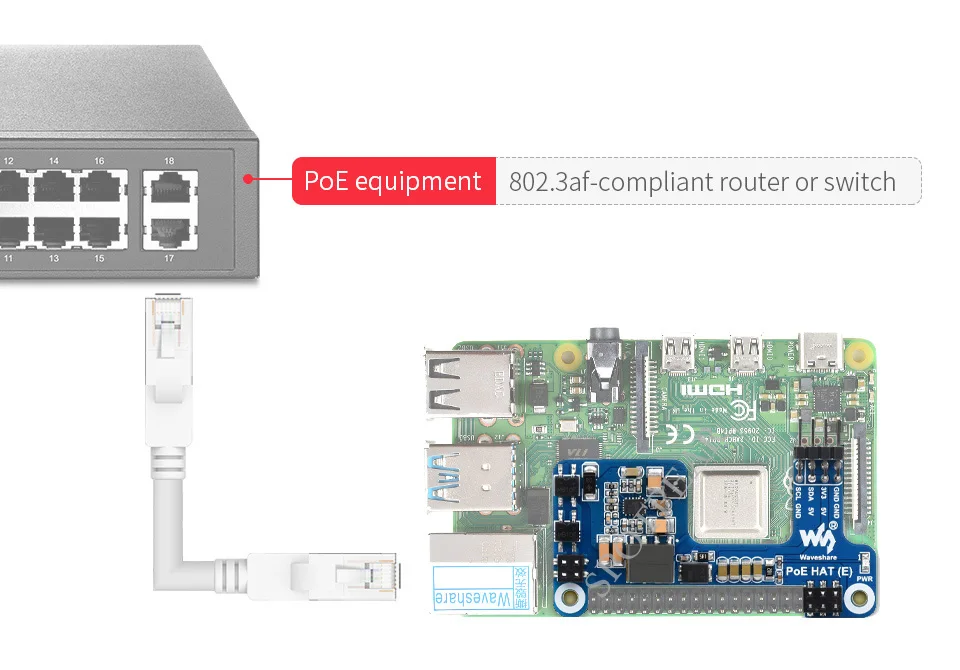

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

Raspberry Pi, official cases, FAN , Heatsink and PoE equipment are NOT included., Please Buy alone.

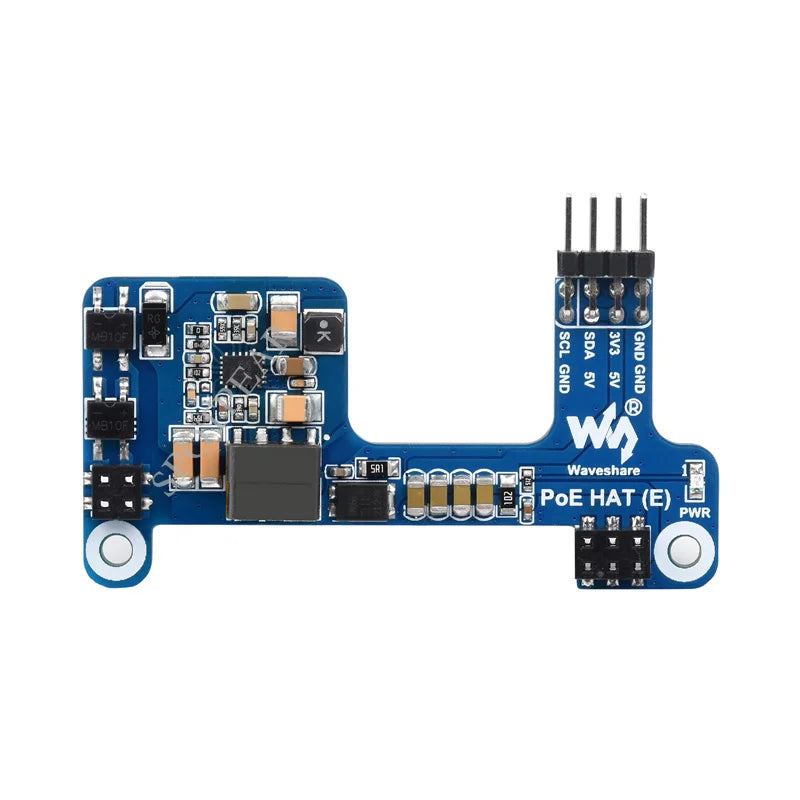

Onboard Resources

Outline Dimensions



Package Contains

  1. PoE HAT (E) x1
