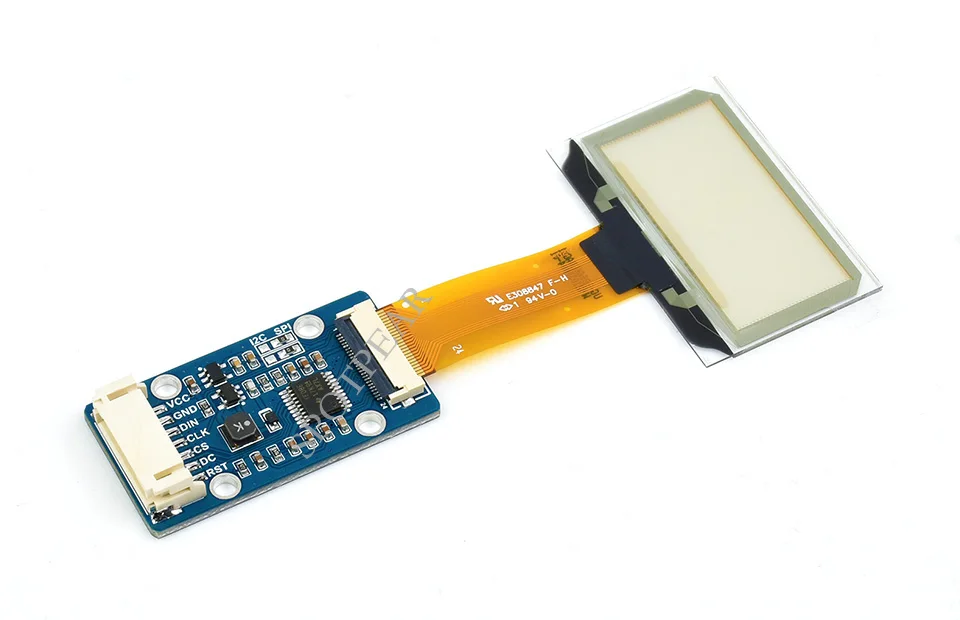

Raspberry Pi 1.51inch transparent OLED blue display 128×64 SPI/I2C interface also for Arduino STM32

Name: Raspberry Pi 1.51inch transparent OLED blue display 128×64 SPI/I2C interface also for Arduino STM32
Brand: Geek Barn
Price: 29.83 AUD
Availability: InStock

$29.83 AUD

Sale Sold out

Tax included.

Default Title Default Title

Product variants

Quantity

SPECIFICATIONS

Brand Name: Waveshare

Demo Board Type: ARM

Origin: Mainland China

Certification: CE

Features

Transparent OLED screen, full viewing angle
Four-wire SPI and I2C interfaces are adopted,
which have good compatibility and high transmission speed.
Complete supporting data manuals
(sample programs such as Raspberry Pi/Arduino/STM32)

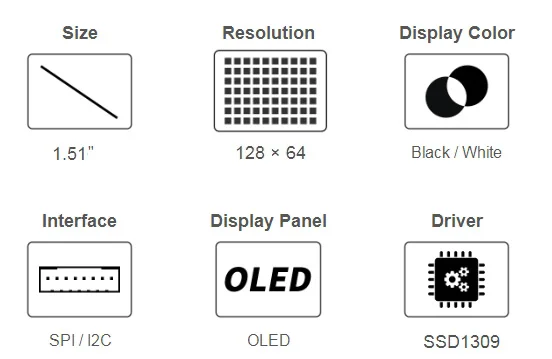

Specifications

Operating voltage: 5V/3.3V
Communication interface: SPI/I2C
Control chip: SSD1309
Resolution: 128 × 64
Display size: 35.05 × 15.32(mm)
Pixel size: 0.254 × 0.254(mm)
Main board size: 41 × 22.5(mm)
Color: light blue

* There is a non-transparent white area on the side of the flat cable, but it can be displayed.

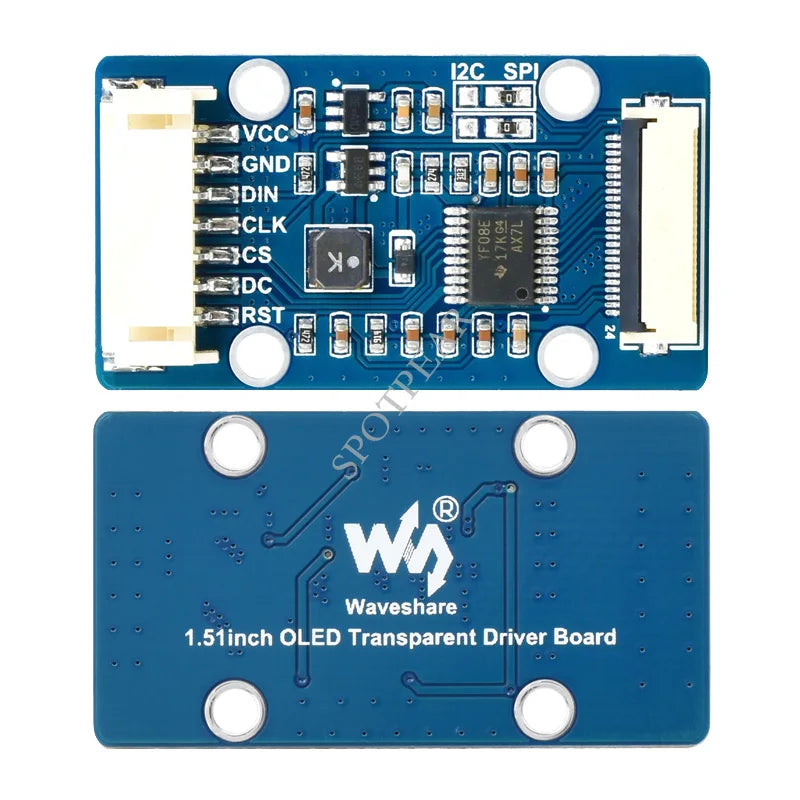

SPI and I2C control interface switch

Accessible Raspberry Pi / Arduino / STM32 and other main control boards

VCC	Power (3.3V/5V input)
GND	Ground
DIN	SPI / I2C Data input
CLK	SPI / I2C Clock input
CS	Chip selection, low active
DC	Data/command, low level indicates command, high level indicates data
RST	Reset, low active
