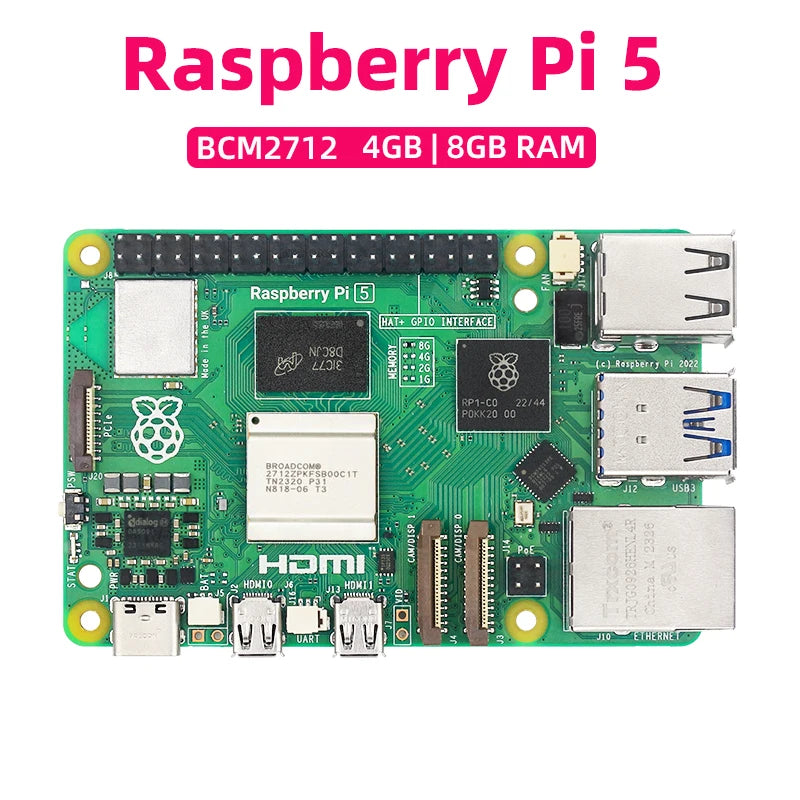

Original Raspberry Pi 5 4G 8G RAM BCM2712 2.4GHz VideoCore VII GPU 4Kp60 PCIe 2.0 RTC Optional Case Fan Power Supply for Pi5

Original Raspberry Pi 5 4G 8G RAM BCM2712 2.4GHz VideoCore VII GPU 4Kp60 PCIe 2.0 RTC Optional Case Fan Power Supply for Pi5

Regular price $213.39 AUD
Regular price Sale price $213.39 AUD
Sale Sold out
Tax included.
Bundle
Color
Ships From

SPECIFICATIONS

Brand Name: Raspberry pi

Demo Board Type: ARM

Origin: GB(Origin)

Model Number: Raspberry Pi 5

Processor Brand: BROADCOM

Intergrated Feature: 10/100/1000Mbps

Intergrated Feature: WiFi 802.11b/g/n

Intergrated Feature: bluetooth

Interface: TF Card Support

Interface: HDMI-Compatible/RCA Output

Certification: FCC

Certification: RoHS

Certification: UL

Certification: KC

CPU: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, 2.4GHz frequency

RAM: Options for 4GB/8GB

Power input: 5V/5A DC (power via USB-C, support PD)

POE: Requires separate new PoE+ HAT

RTC: Onboard RTC and RTC battery connector

MIPI (DSI/CSI): 2 x 4-lane MIPI (DSI/CSI)

USB: 2 x USB 3.0, supporting simultaneous 5Gbps operation 2 x USB 2.0

PCle: 1 x PCle 2.0 interface

Button: 1 x Power switch button

Original Raspberry Pi 5 4G 8G RAM BCM2712 2.4GHz VideoCore VII GPU 4Kp60 PCIe 2.0 RTC Power Button Optional Case Power Supply for Pi5

The latest generation of Raspberry Pi: the everything computer

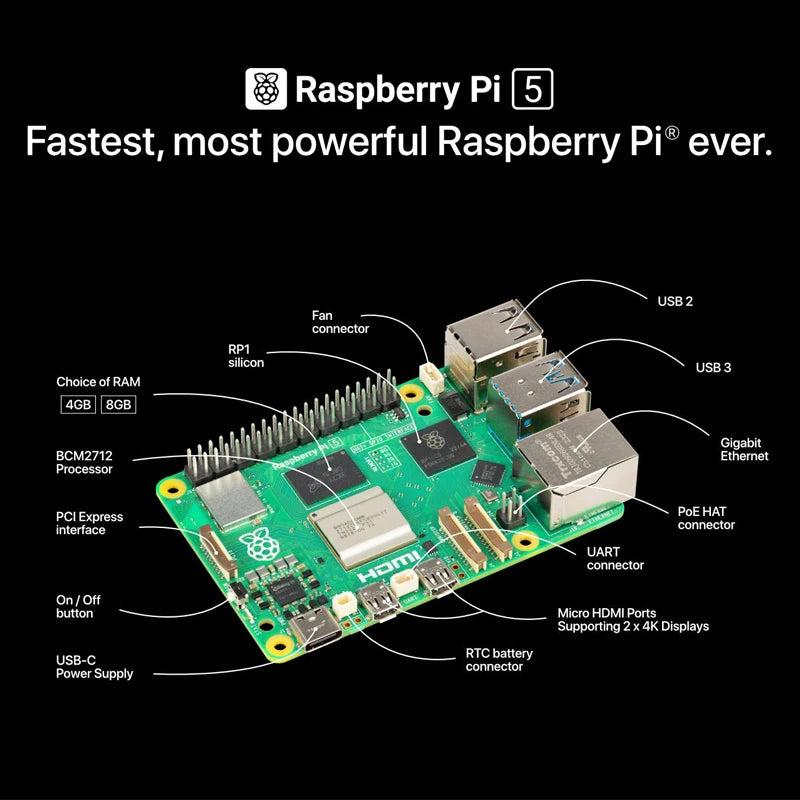

What's On Board



Upgraded New Chipset


BCM2712

BCM2712 is a new quad-core 64-bit Arm Cortex-A76 processor from Broadcom, clocked at 2.4GHz, with 512KB per-core L2 caches, and a 2MB shared L3 cache. Cortex-A76 is three microarchitectural generations beyond Cortex-A72, a better manufacturing process makes a faster Raspberry Pi 5 with lower power consumption.

An updated VideoCore hardware video scaler (HVS) is capable of driving two simultaneous 4Kp60 HDMI-compatible displays, up from single 4Kp60 or dual 4Kp30 on Raspberry Pi 4.


RP1

RP1 is the I/O controller designed for Raspberry Pi 5, provides two USB 3.0 and two USB 2.0 interfaces; a Gigabit Ethernet controller; two four-lane MIPI transceivers for camera and display; analogue video output; 3.3V general-purpose I/O (GPIO); and the usual collection of GPIO-multiplexed low-speed interfaces (UART, SPI, I2C, I2S, and PWM). A four-lane PCI Express 2.0 interface provides a 16Gb/s link back to BCM2712.


DA9091

DA9091 is a power-management IC (PMIC) of the chipset. This integrates eight separate switch-mode power supplies to generate the various voltages required by the board, including a quad-phase core supply, capable of providing 20 amps of current to power the Cortex-A76 cores and other digital logic in BCM2712.

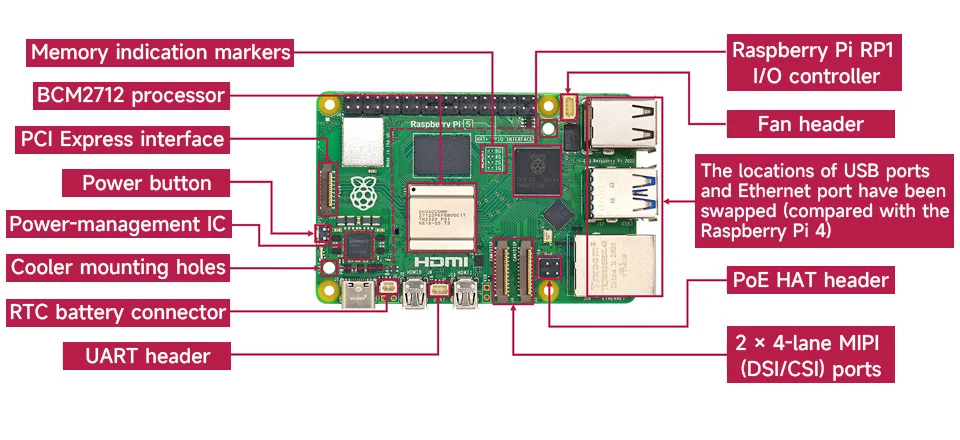

Updated Layout

•2 × 4-lane MIPI DSI/CSI port, compatible with CSI-2 camera and DSI display
•Adapting PCIe 2.0 interface via FPC connector, supports high-speed peripherals
•Onboard power button for power on/off without disconnecting power adapter
•Onboard RTC battery header for connecting external battery (the battery is not included)
•Onboard fan header, compatible with Active Cooler for Raspberry Pi 5
•Onboard UART header designed for Raspberry Pi Debug probe
•Memory indication markers for easy board RAM identification


Specifications

Raspberry Pi 5 is the latest generation flagship product in the Raspberry Pi series, following the success of the Raspberry Pi 4. It provides a 2-3x increase in CPU performance over the previous generation. Onboard dual CSI/DSI ports and USB connectors which are provided by the Raspberry Pi RP1 I/O controller. And this is the first Raspberry Pi computer using silicon built in-house at Raspberry Pi.

Key features include:

  • 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache

  • VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2

  • Dual 4Kp60 HDMI-compatible display output

  • 4Kp60 HEVC decoder

  • LPDDR4X-4267 SDRAM (options for 4GB/8GB)

  • 2.4GHz/5GHz dual-band 802.11ac Wi-Fi

  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)

  • TF card slot, with support for high-speed SDR104 mode

  • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

  • Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

  • 2 × 4-lane MIPI DSI/CSI port

  • PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)

  • 5V/5A DC power via USB-C, with Power Delivery support

  • Raspberry Pi standard 40-pin header

  • Real-time clock (RTC), powered from external battery (not included)

  • Onboard power button for power on/off without disconnecting power adapter


Raspberry Pi 4B & 5 Comparison

MODULE

Raspberry Pi 4B

Raspberry Pi 5

CPU

Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, 1.8GHz frequency

Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, 2.4GHz frequency

RAM

Options for 2GB/4GB/8GB

Options for 4GB/8GB

INTERFACES

2.4GHz and 5.0GHz 802.11a dual-band WiFi

2.4GHz and 5.0GHz 802.11a dual-band WiFi

Bluetooth 5.0, BLE

Bluetooth 5.0, BLE

Gigabit Ethernet

Gigabit Ethernet

N/A

1 × PCle 2.0 interface

2 × USB 3.0, 2 × USB 2.0

2 × USB 3.0, supporting simultaneous 5Gbps operation
2 × USB 2.0

Raspberry Pi standard 40PIN GPIO header

Raspberry Pi standard 40PIN GPIO header

2 × micro HDMI interface (up to 4Kp60)

2 × micro HDMI interface (up to 4Kp60)

2-lane MIPI DSI, 2-lane MIPI CSI

2 × 4-lane MIPI (DSI/CSI)

4-pole stereo audio and composite video port

N/A

OPERATING SYSTEM & DATA STORAGE

TF card slot

TF card slot, with support for high-speed SDR104 mode

POWER INPUT

5V/3A DC (power via USB-C/GPIO)

5V/5A DC (power via USB-C, support PD)

POE

requires separate PoE+ HAT

requires separate new PoE+ HAT

RTC

N/A

Onboard RTC and RTC battery connector
