Q and A:

⭐What should we do if the CD is damaged?

You can search and download the app on your mobile phone. There are QR codes for Android and IOD systems in the product manual. Just follow the steps to scan the code to download the app. There is no need to use CD-ROM software.

⭐ Why can’t the product connect?

Please first determine whether you are purchasing the wifi version or the Bluetooth version. The wifi version requires the phone's wifi to be turned on to connect. If the phone's wifi is turned off, it will automatically disconnect.

Operating procedures:

(1) When the product is plugged into the car's OBD interface, a light that is always on means it is powered on.

(2) Then turn on Bluetooth/wifi on the phone for matching. It must be matched before opening the mobile APP to run it.

【Note:

It must be powered on first, then connected to Bluetooth/wifi, and then open the mobile app. If your order is wrong, it will fail to connect.】

⭐ How to connect to wifi / bluetooth?

(1) The name of the wifi version is OBD2.

(2) If it is a Bluetooth version, the Android system needs to select obd2 and the password is 1234; the IOS system needs to select obdble and there is no password.

⭐ What should I do if the car cannot connect to OBD2 Bluetooth?

The Bluetooth name connected to Apple phones is: OBDBLE; the Bluetooth name connected to Android phones is: OBDII.

Generally, OBDII Bluetooth will appear in the Bluetooth list later, just wait for a while.

The default connection password is: 1234, or 0000.

【Note:

If you make the wrong choice and your Android phone is connected to Apple’s Bluetooth but still cannot connect, delete all Bluetooth records and search and match again. 】

⭐ Does XX model of XX brand support its use?

It depends on the brand, model and production year. Actual vehicle testing is required to determine.

It is best to consult the 4S store directly for the exact agreement. You can also refer to this website to see if your car is compatible.

<http://mis.mobd.cn/supportcar/index.html#>

【Note:

This website is used to find the corresponding car model according to the first letter of the car brand, and then find the corresponding car model introduction, which contains the agreement for this car model. 】

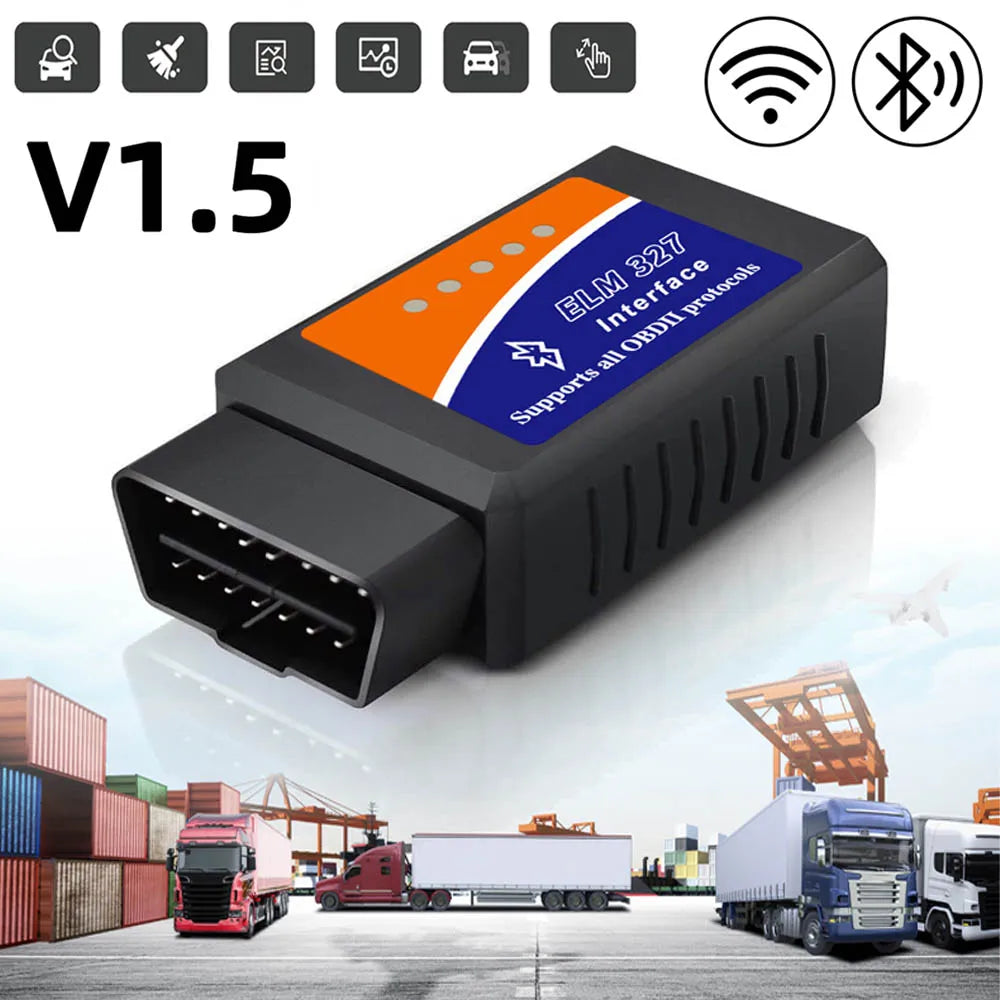

Upgrade Version Black：

Descriptions:

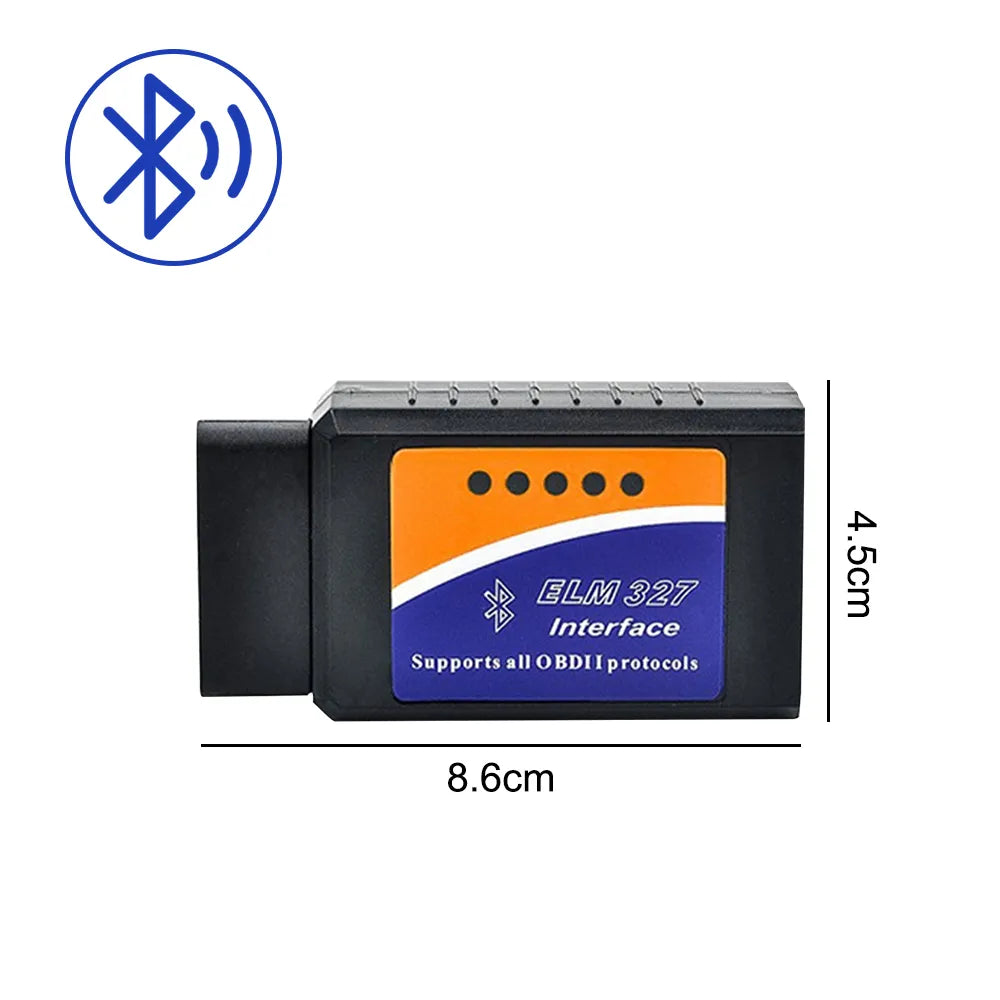

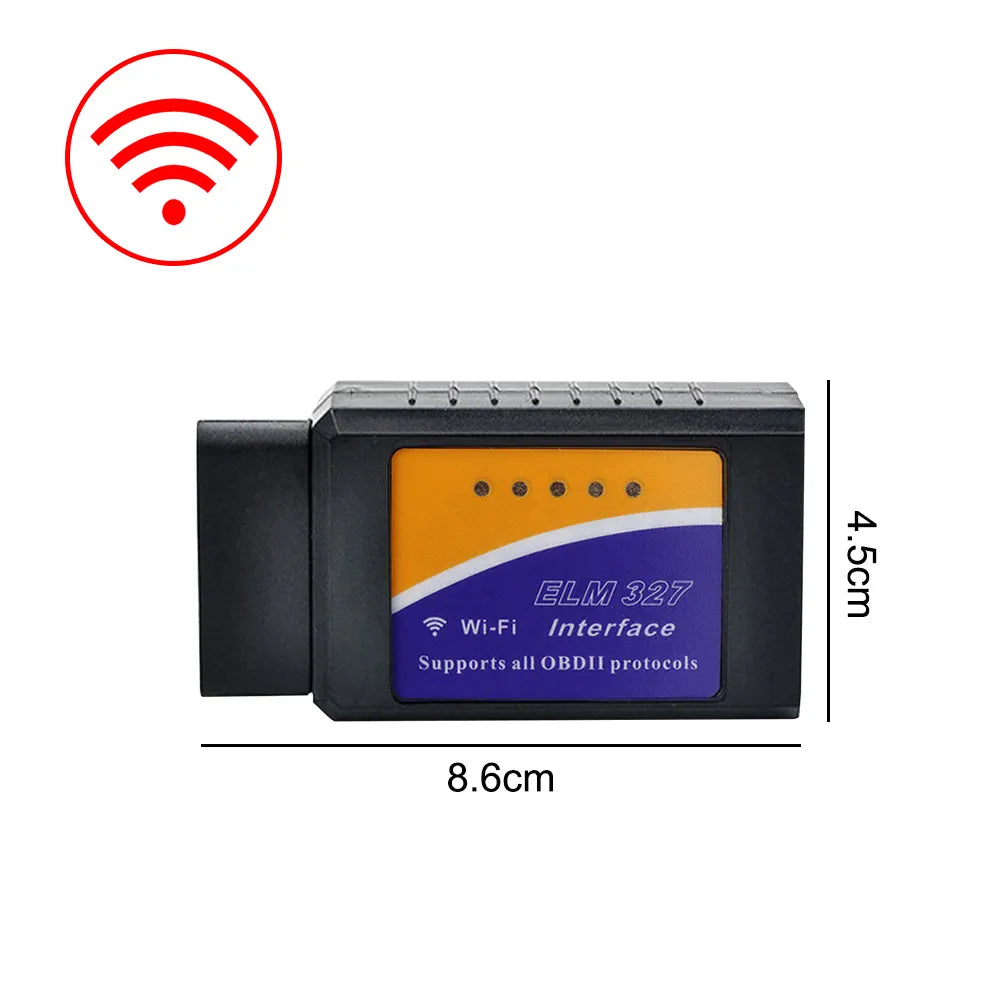

⭐ Size: 8.6x4.5cm

⭐ Communication method: Bluetooth 5.1 / wifi (optinal)

⭐ Software Platform: Support Android / Windows

⭐ It CANNOT be used with iOS devices such as iPhone and iPad.

Features:

⭐ Small size, highest chip integration

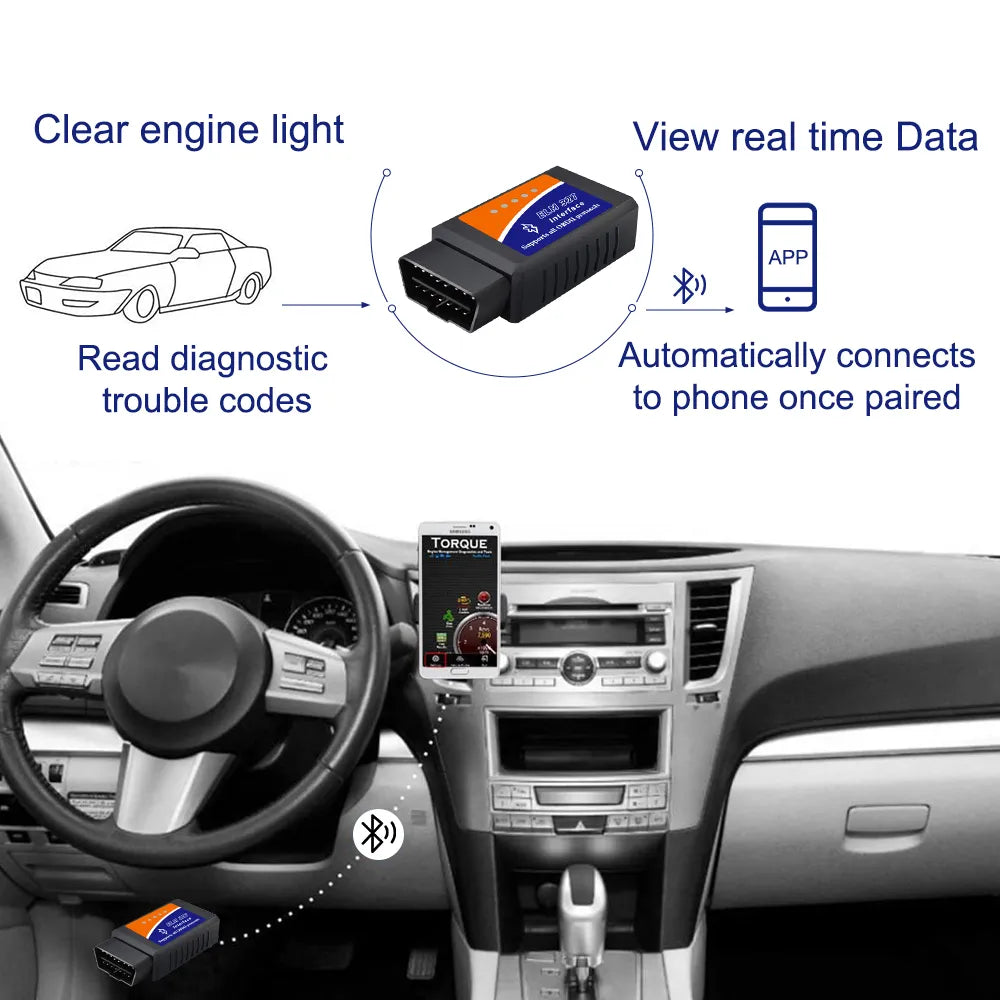

⭐ The software can perform the following operations:
1. Reads diagnostic error codes - generic and manufacturer specific, and displays their meaning (database has over 3000 generic code definitions)
2. Clear error codes and turn off the MIL ("Check Engine" Light) to display current sensor data, including:
3. Engine Revolutions Per Minute (RPM) Calculated Load Value Coolant Temperature Fuel System Status Vehicle Speed Short Term Fuel ConditionsIntake Manifold Pressure Injection Advance Timing for Long Term Fuel ConditionsIntake temperature Air velocityAbsolute Throttle Position Vs Short Term Fuel Status Oxygen Detection Voltage Fuel System Status Fuel PressureFuel consumption monitoring and many other data...

⭐ Future features of the software: Data graphs display and record log freeze frame data continuous and discontinuous oxygen detection results

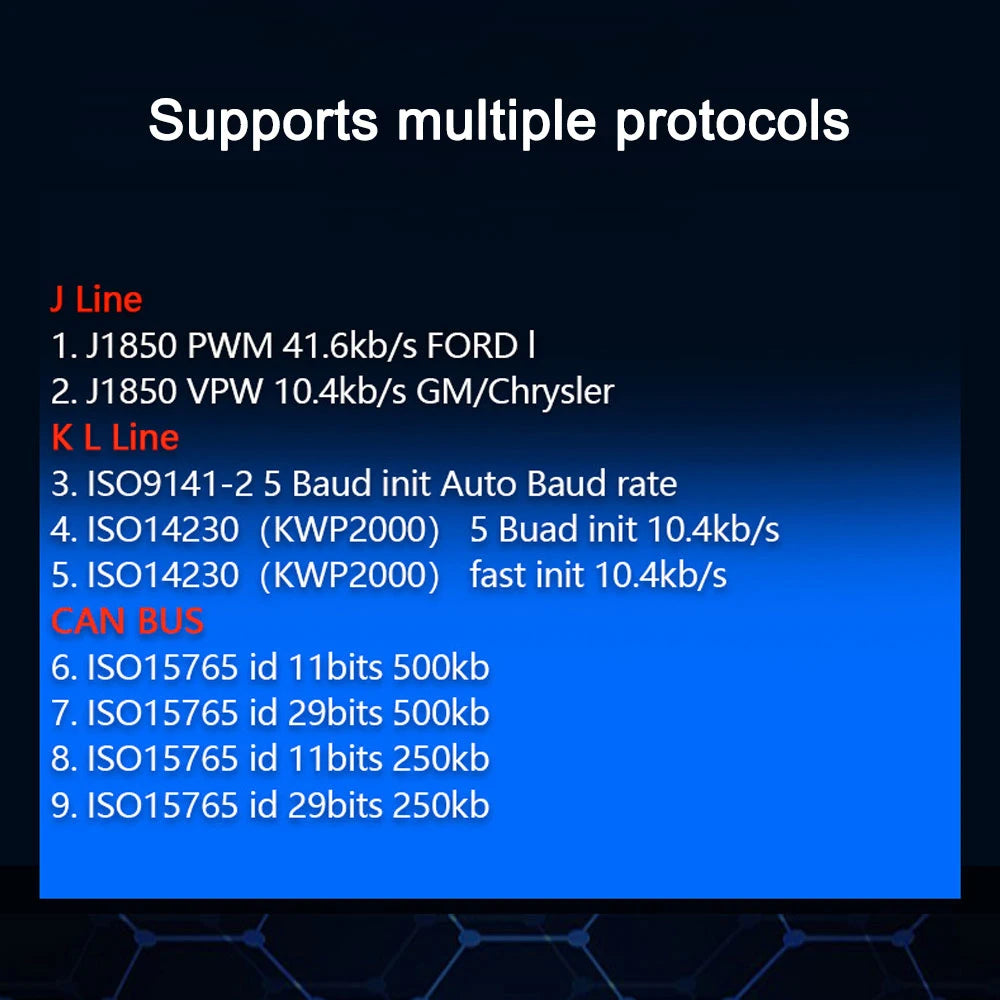

⭐ Protocol support:Protocols supported by OBDII:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

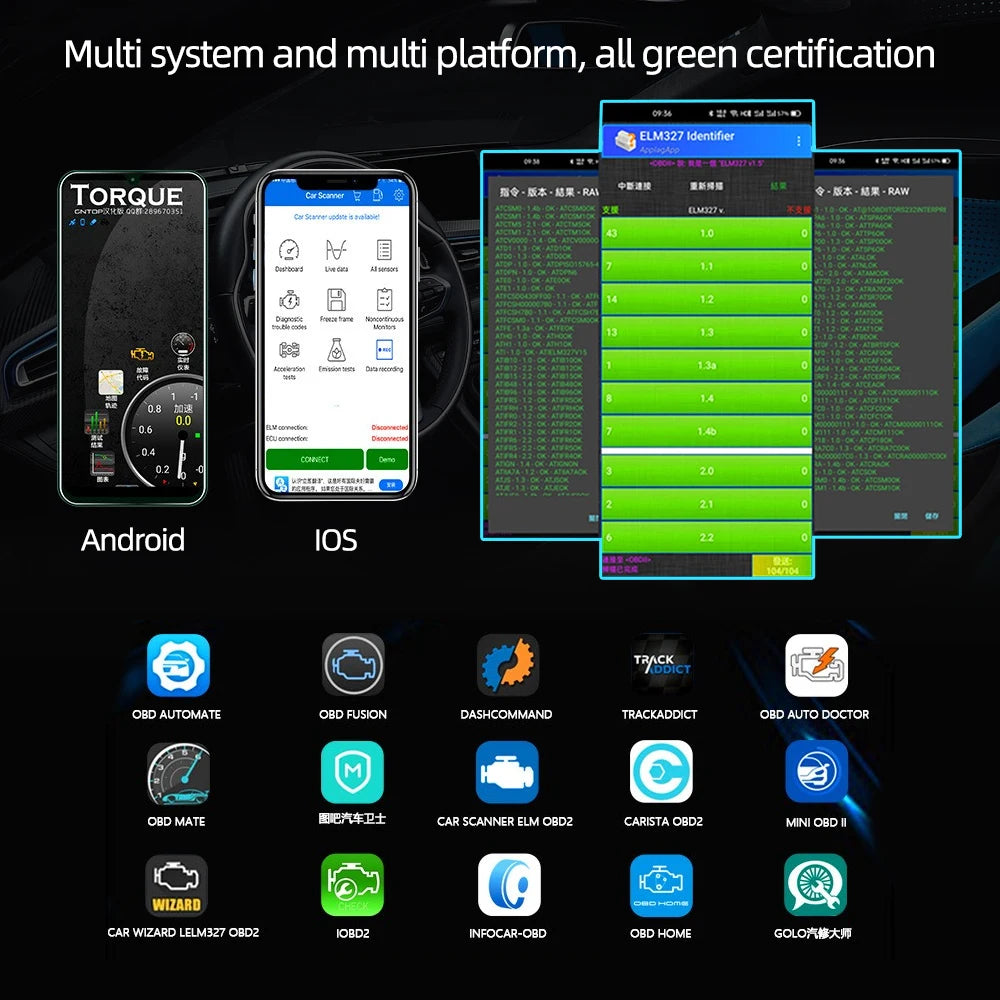

⭐ Software platform:
1. Compatible softwareWindow version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.;Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.; Symbian version: OBDScope.
2. Compatible platformsSoftware support platform: Windows XP, Windows 7/8, Android, IOS, Symbian and other systems.

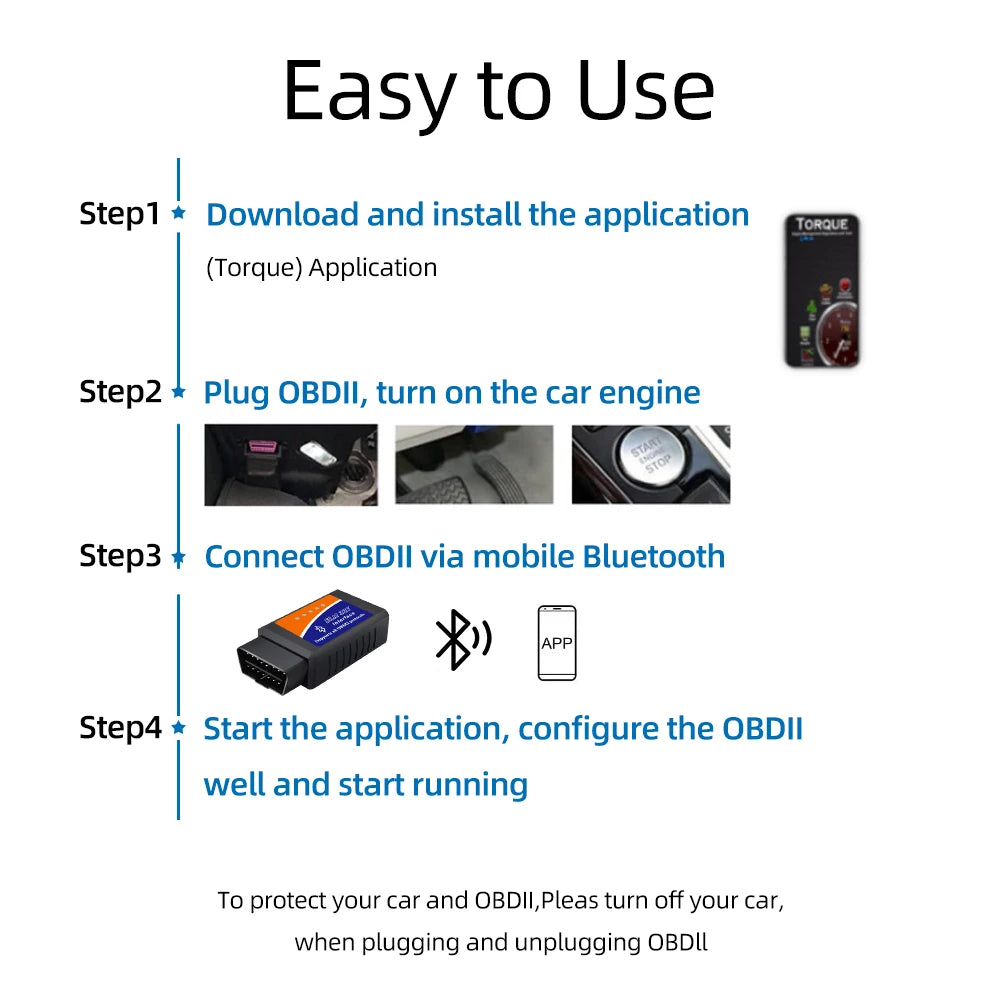

⭐ Use Instructions:
1. Install OBDII(OBD port in the car)
2. Install Android Software Torque
a) Copy software to phone from CD
b) Install Software
3. Connection OBDII
a) Search OBDII Bluetooth
b) Enter the password “1234”
c) Connection Success
4. Run Software
Click Menu button setting Bluetooth connection
a) Choose Commotion type is Bluetooth
b) Choose Bluetooth Device is OBDII
Exit Torque, and re-run the software. Successful connection
Package contains: 1×diagnostic instrument, 1×CD


Notices:

⭐ Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

⭐ Please allow 1-2cm measuring deviation due to manual measurement.
