Feature:

1. This is an ESP8266 0.96 OLED board with all the features of the traditional ESP8266 module.

2. Seamless integration with a 0.96 inch OLED display eliminates the need for wires and test boards.

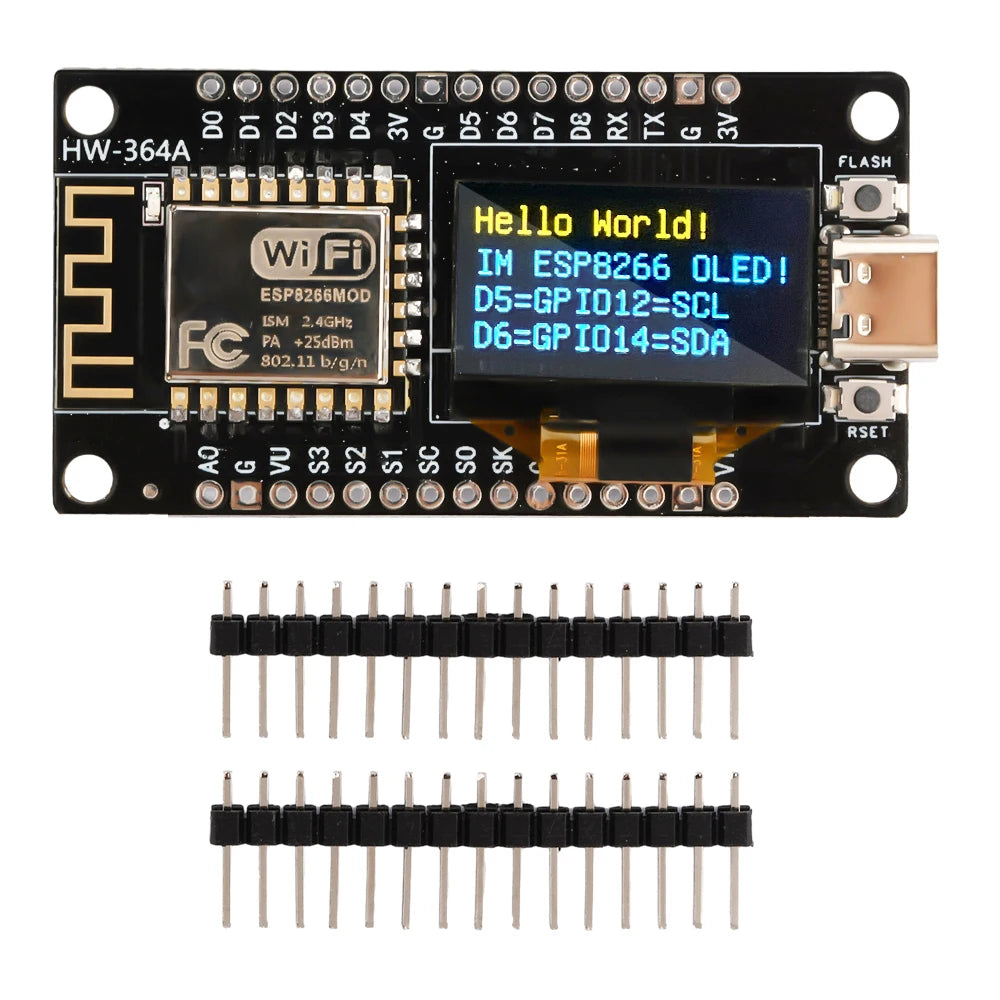

3. The board uses I2C to connect to the OLED display via SDA (D6/GPIO14) and SCL (D5/GPIO12) pins.

4. Module with the display template, with this board, you can display a variety of information and data.

5. Display function, high resolution 128x64 with SSD-1306 driver, and compatible with I2C, SPI interface, can be connected using Type-C or Micro USB interface, interface can be selected according to demand.

Product Introduction:

Integrated with the ESP8266 NodeMCU and a 0.96 inch OLED screen, the board offers all the features of the traditional ESP8266 module, with the same size and peripheral ports, as well as higher performance development tools and high-definition data display. It supports multiple programming modes and has an ESP8266 chip with an 80MHz main frequency and 4MB flash memory, making it easy to handle a variety of tasks and applications, with a complete network protocol stack and security mechanisms. It has low power consumption and high performance, suitable for beginners and professionals to develop and apply iot projects.

Product parameters:

Operating voltage: 3.3V

Input voltage: 7-12V

Digital I/0 pin (DIO) : 16

Analog input Pin (ADC) : 1

UART:1

SPI:1 1

12Cs:1

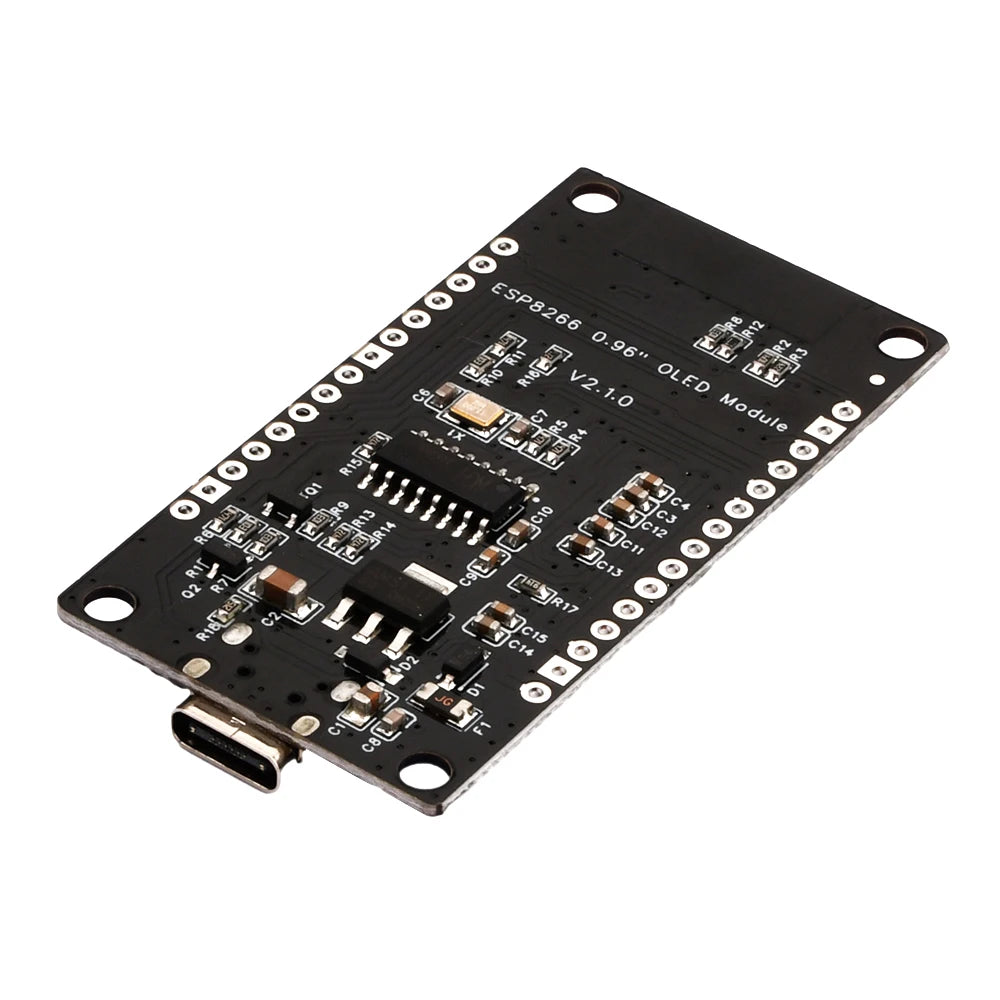

Driver.CH340G

Flash memory: 4 MB

SRAM:64 KB

Clock speed: 80 MHZ

Microcontroller: Tensilica 32-bit RISC CPU Xtensa LX106

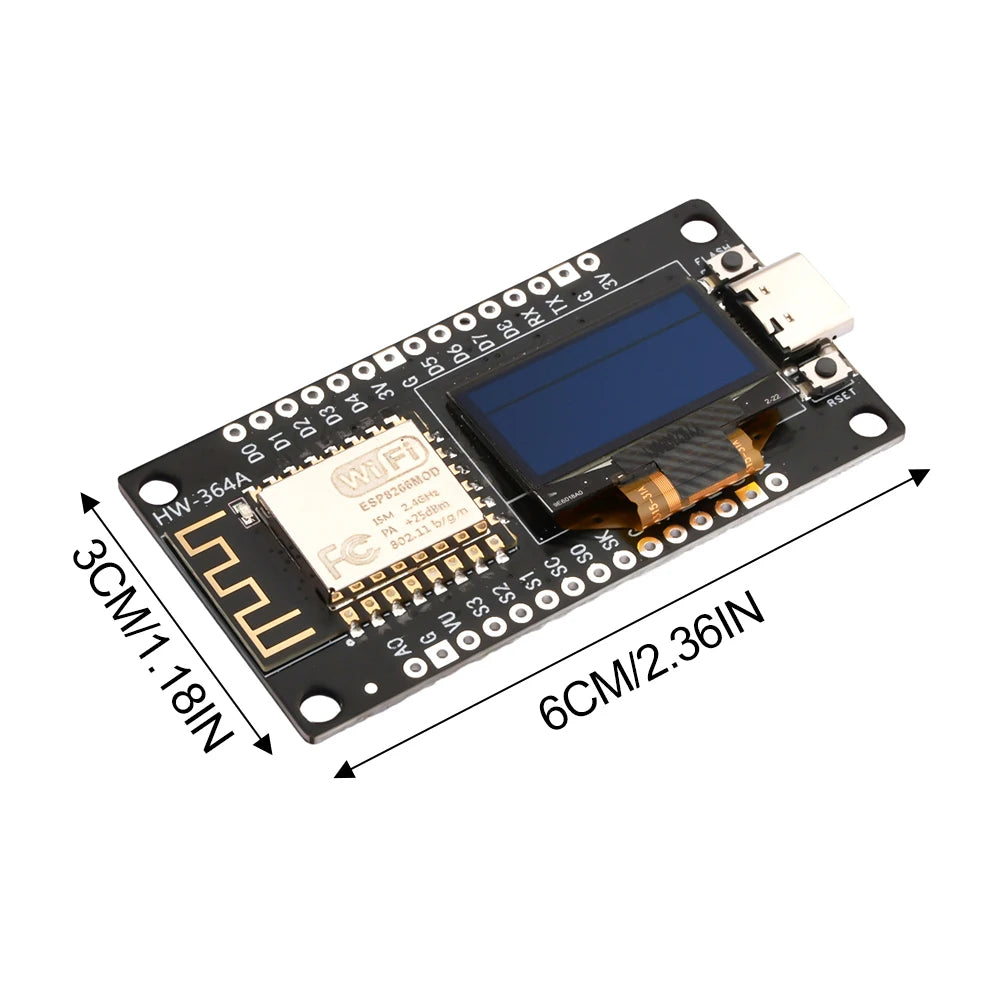

Module size: 59mm*31mm

Small modules that can be intelligently installed in your loT projects with on-board CH340 based USB-TTL for plug and play

0.96 inch SD1306 OLED parameters:

OLED self-luminous, no backlight

Screen material: Glass, need good protection

Size: 0.96 inches

Color: Yellow and blue

Voltage: 3.3V-5V DC

Viewing Angle: >160°

High resolution: 128x64

Driver lC:SSD1306

I12C interface:

SCL:I12C serial clock

DA:l2C serial data

Operating temperature: -30°C~70°C

Module size: 25mmx 17mm

Package included:

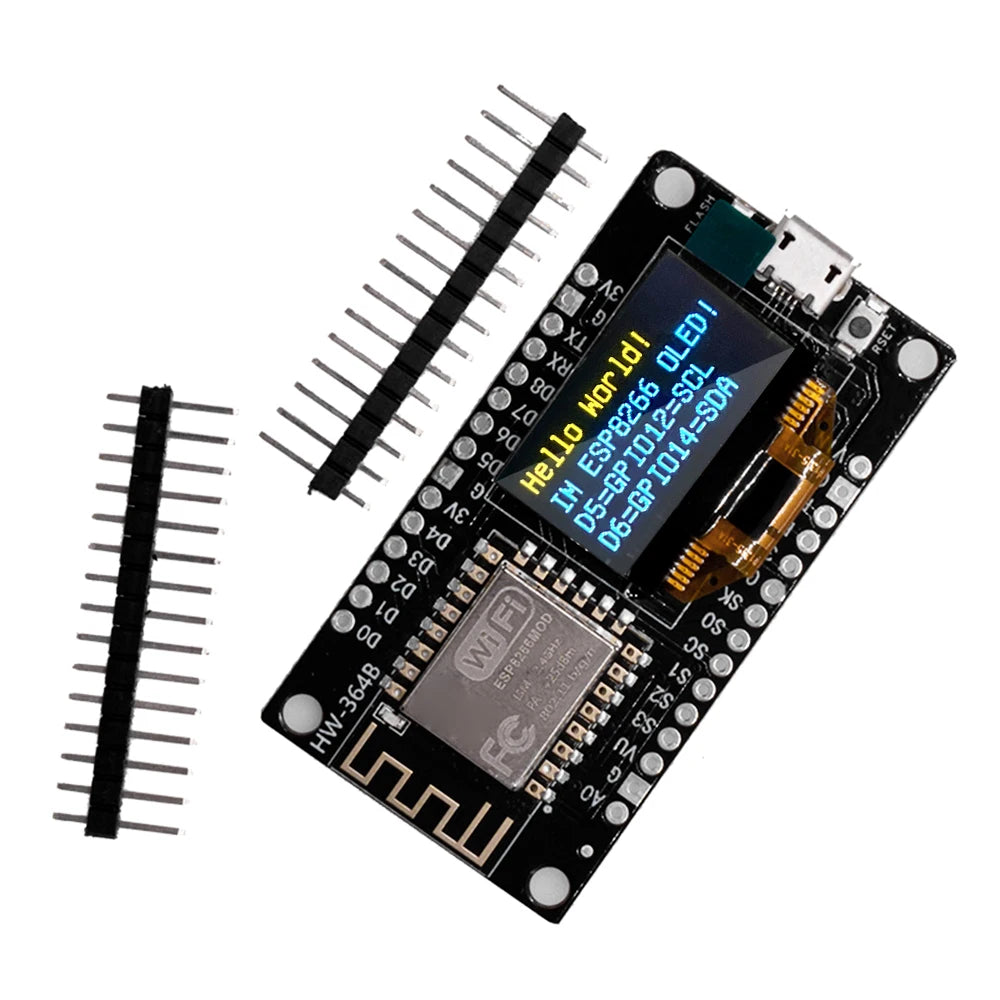

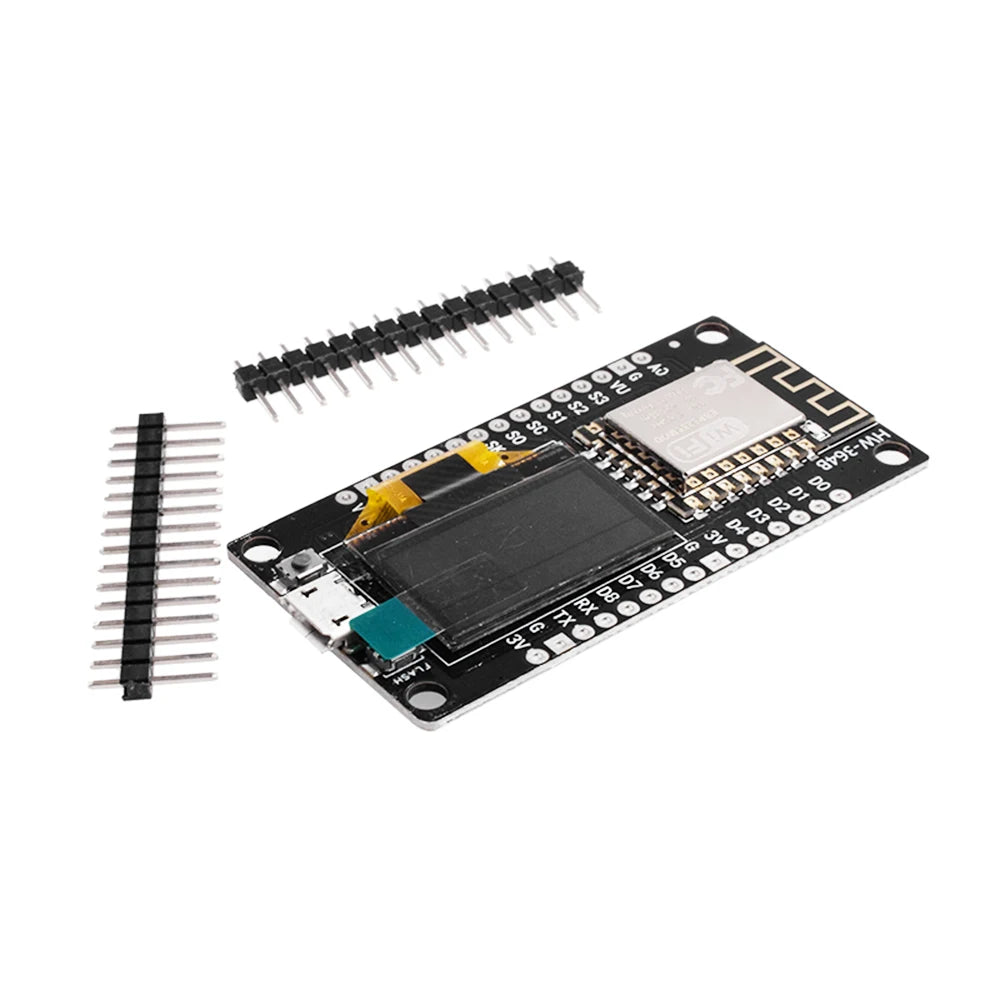

1 x NodeMCU ESP8266 Development Board with 0.96‘’ OLED Display,CH-340,ESP-12E WiFi Module,Type-C/Micro USB for Arduino/Micropython ESP8266

Attention:

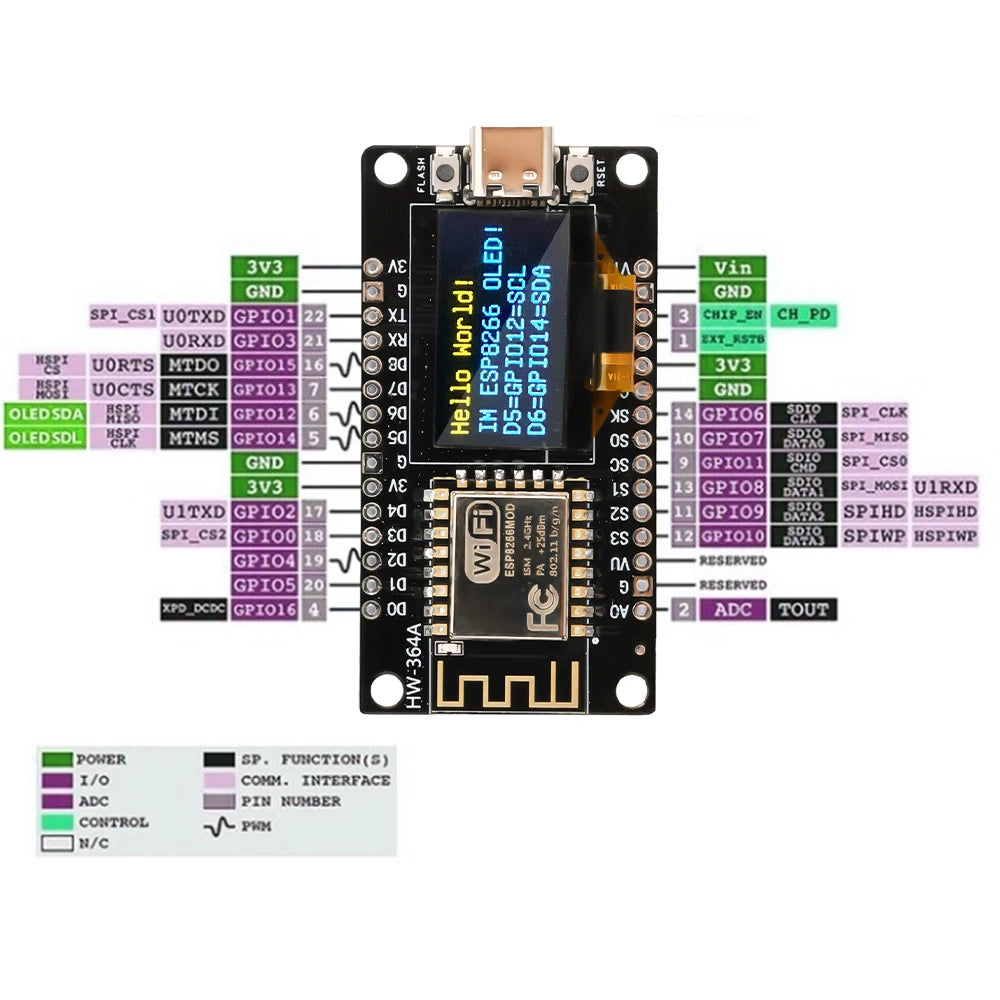

Pay attention to the connection according to the diagram, do not connect wrong.

This document only represents the product perception and parameters at the time of editing, and is subject to change without notice.

The power supply voltage must not exceed the maximum voltage of the module; otherwise, the module may be damaged.
