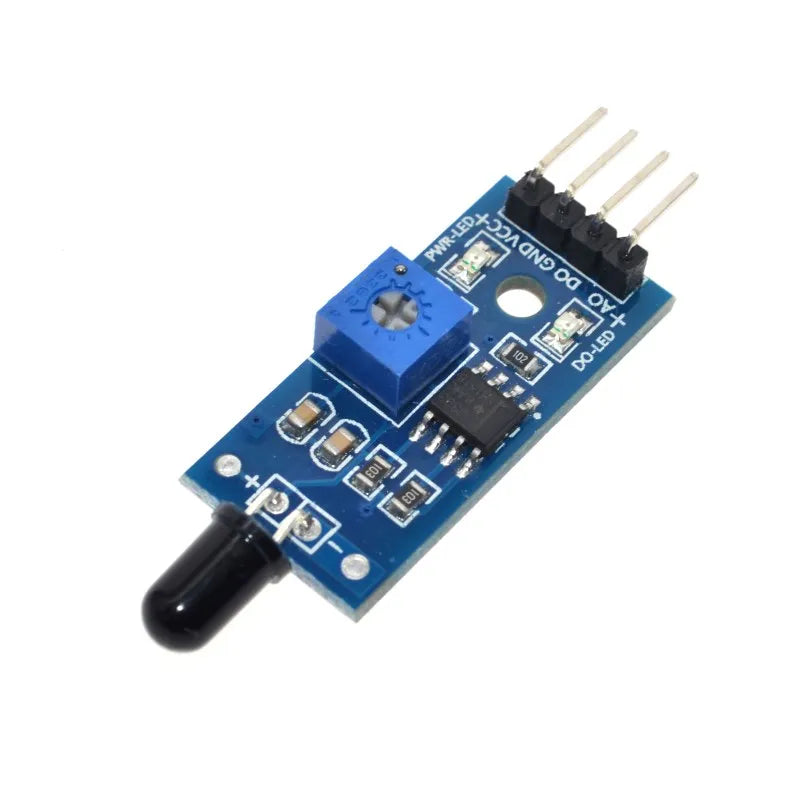

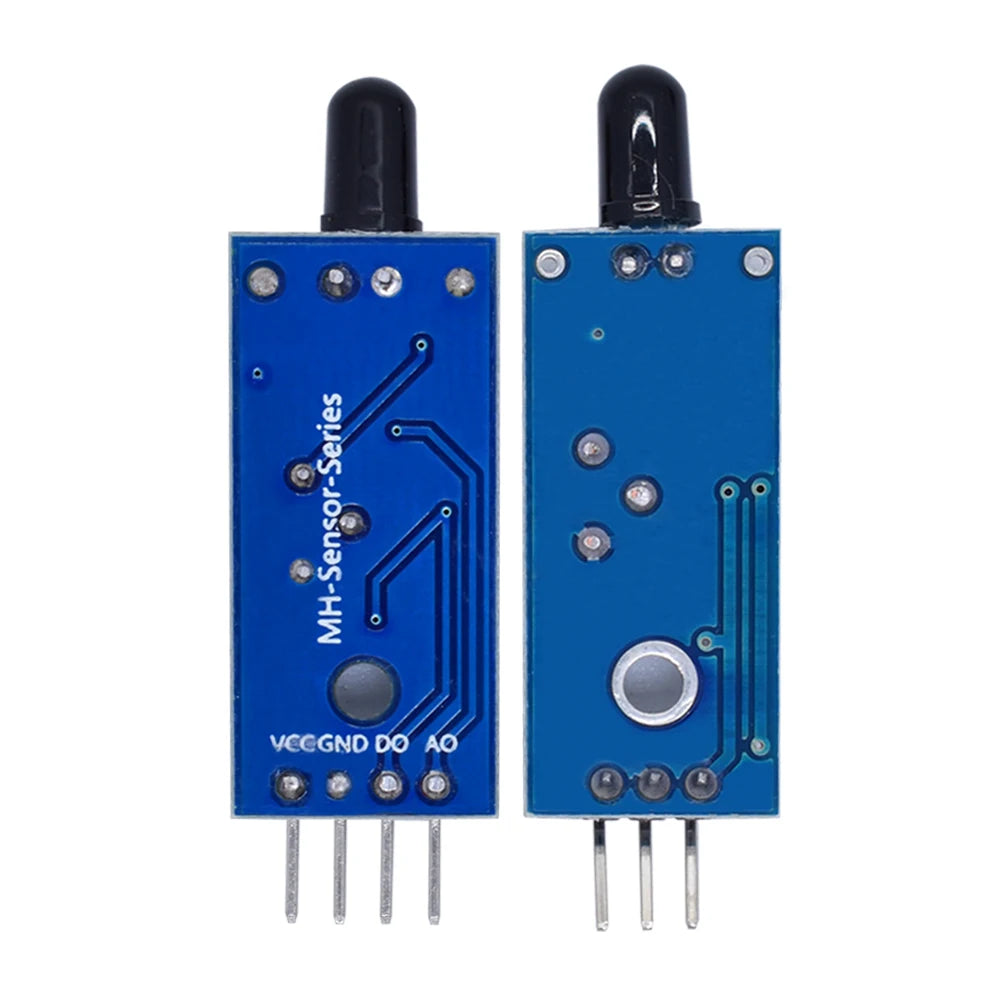

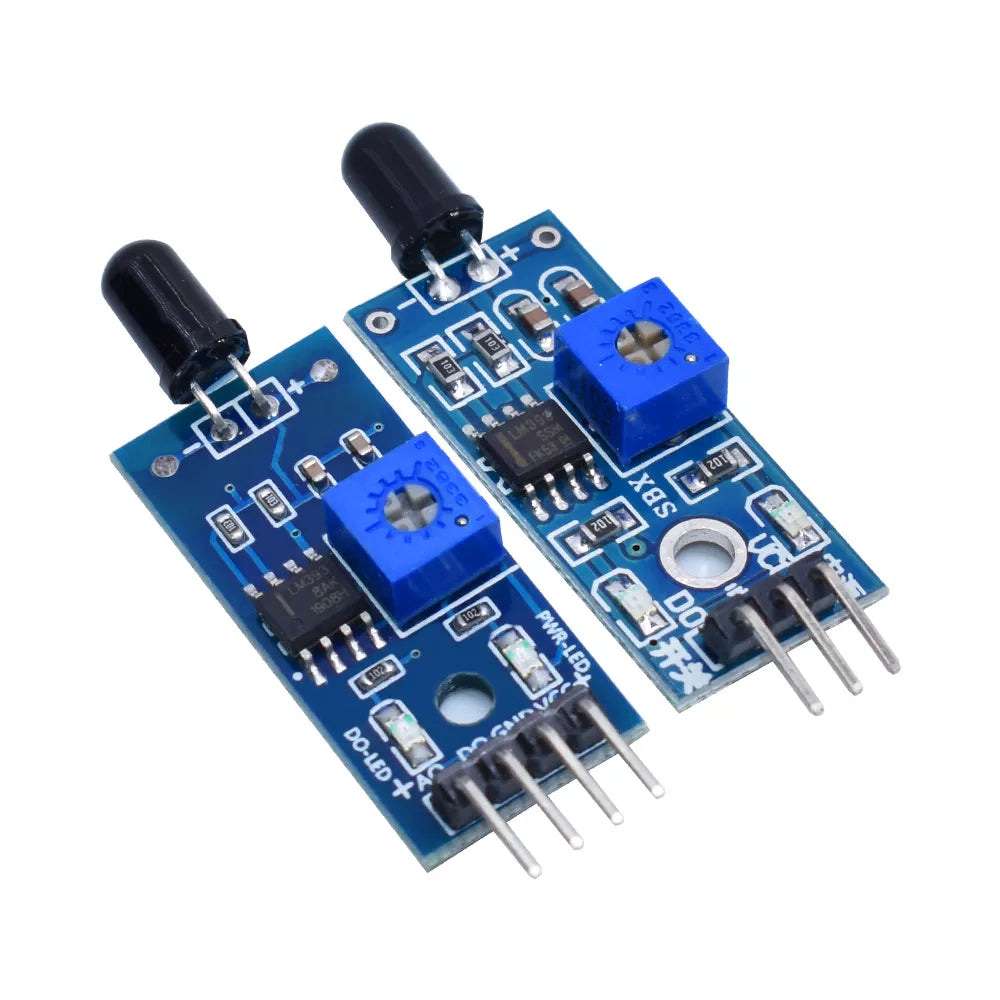

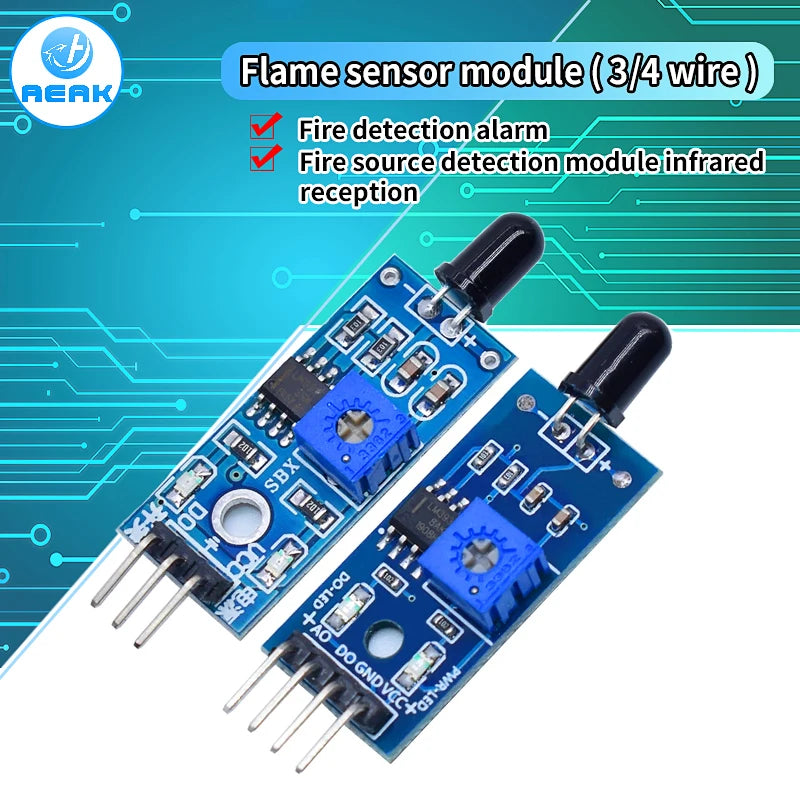

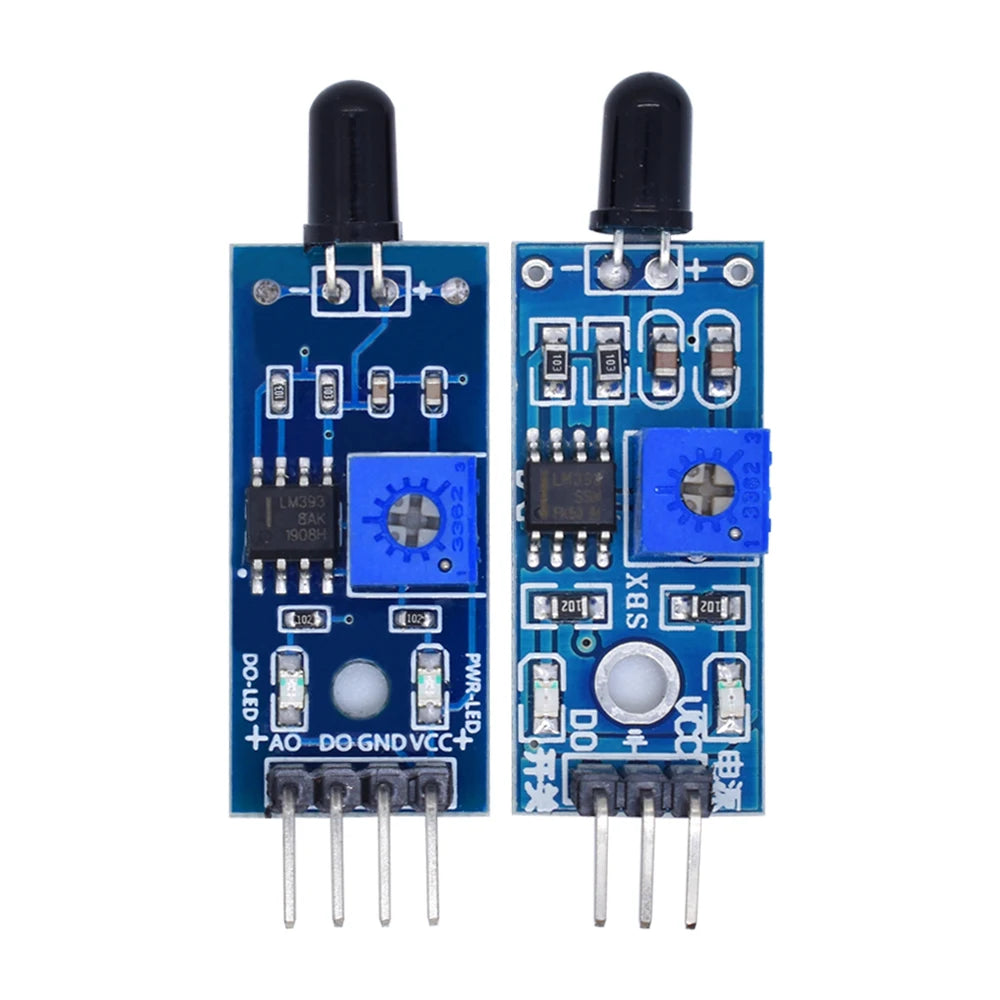

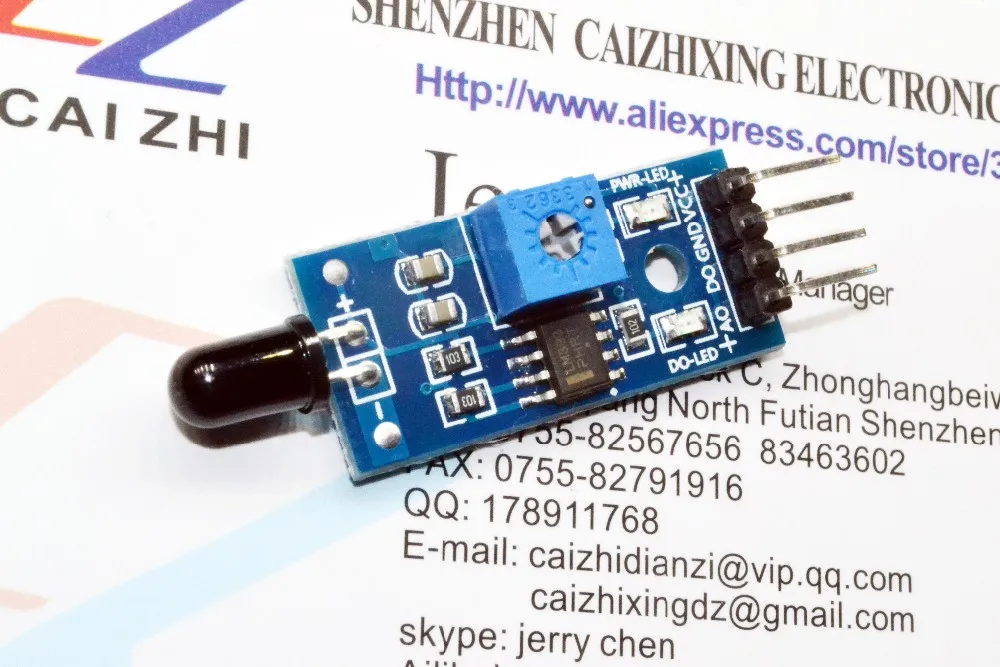

LM393 3 / 4 Pin IR Flame Detection Sensor Module Fire Detector Infrared Receiver Module for arduino Diy Kit

LM393 3 / 4 Pin IR Flame Detection Sensor Module Fire Detector Infrared Receiver Module for arduino Diy Kit

$1.84 AUD
$1.84 AUD
Sale Sold out
Tax included.
Color

SPECIFICATIONS

Brand Name: EQV

Origin: Mainland China

Condition: New

Type: module

Model Number: module

Supply Voltage: module

Dissipation Power: module

is_customized: Yes

Operating Temperature: module

Application: module

Package: module

start

WAVGAT Hot Sale ACS712 20A Range Hall Current Sens... US $1.30
1PCS DHT11 DHT-11 Digital Temperature and Humidity... US $1.28
High Quality Passive Buzzer Module for WAVGAT New ... US $0.47
2017 Rushed Real New Wavgat 5v 650nm 5mw Adjustabl... US $0.30
1PCS Micro SD Storage Expansion Board Mciro SD TF ... US $0.80
10PCS W1209 heat cool temp thermostat temperature ... US $15.50
1PCS NEW LM358 100 Times Gain Signal amplification... US $1.35
Free Shipping IR Infrared 4 Wire Flame Detection S... US $0.70
Free Shipping DS18B20 temperature measurement sens... US $1.40
2017 Sale Hot Sale New Wavgat At89c2051 Digital 4 ... US $1.75

end

Notice: The new tracking number for China Post Ordinary Small Packet Plus can be traced only befor it arrive the airport of your country,please choose China Post Air Mail if you want a full tracking info.The same product will arrive in 15 to 60 days


Tracking info of  China Post Ordinary Small Packet Plus can be check here: www.17track.net/en


IR Flame Sensor Module Detector Smartsense For Temperature Detecting Suitable

Description

Module Features:

1. Can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test.2. The detection angle of 60 degrees, the flame spectrum particularly sensitive.3. Sensitivity adjustable. (shown in blue digital potentiometer adjustment)4. The comparator output signal clean waveform is good, driving ability, than 15mA.5. With a precision potentiometer adjustable sensitivity adjustment.6. Operating Voltage 3.3V-5V.7. The output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output.8. A fixed bolt holes for easy installation.9. Small plates PCB size: 3.2cmx1.4cm.10.Using a wide voltage LM393 comparator. Wiring Instructions: 1. VCC: VCC3.3-5V. 2 .GND: GND.3. DO: TTL switch signal output.

4. AO: Analog Output.

Module For Use:
1. The flame flame sensor most sensitive to ordinary light is also a reaction, generally used as fire alarm and other purposes.
2. A small panel output interface can be directly connected with the microcontroller IO port.
3. The sensor and the flame to maintain a certain distance, so as not to damage the sensor temperature of the test flame lighters distance 80cm, the
larger the flame, the greater the distance test.
4. Small plates analog output mode and the AD conversion process, you can get higher accuracy.
Package Included:
1PCS × IR Infrared Wire Flame Detection Sensor Module Flame Sensor.
