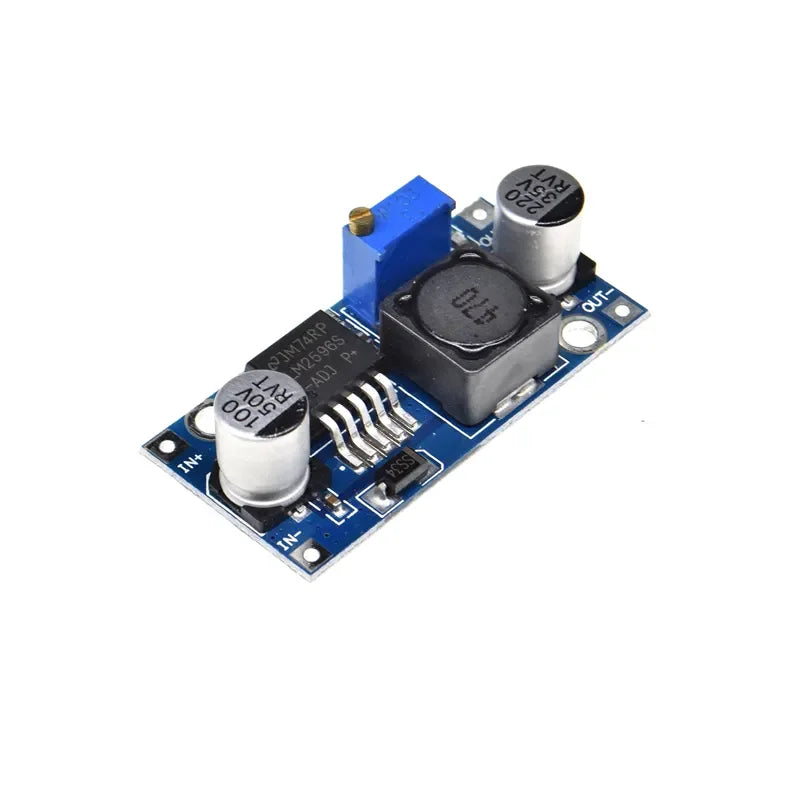

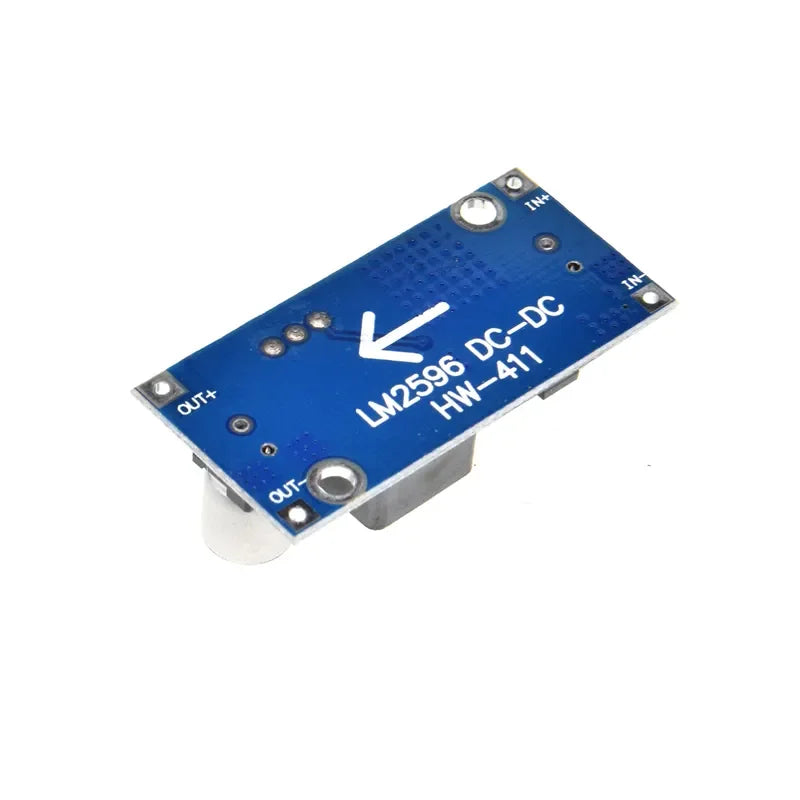

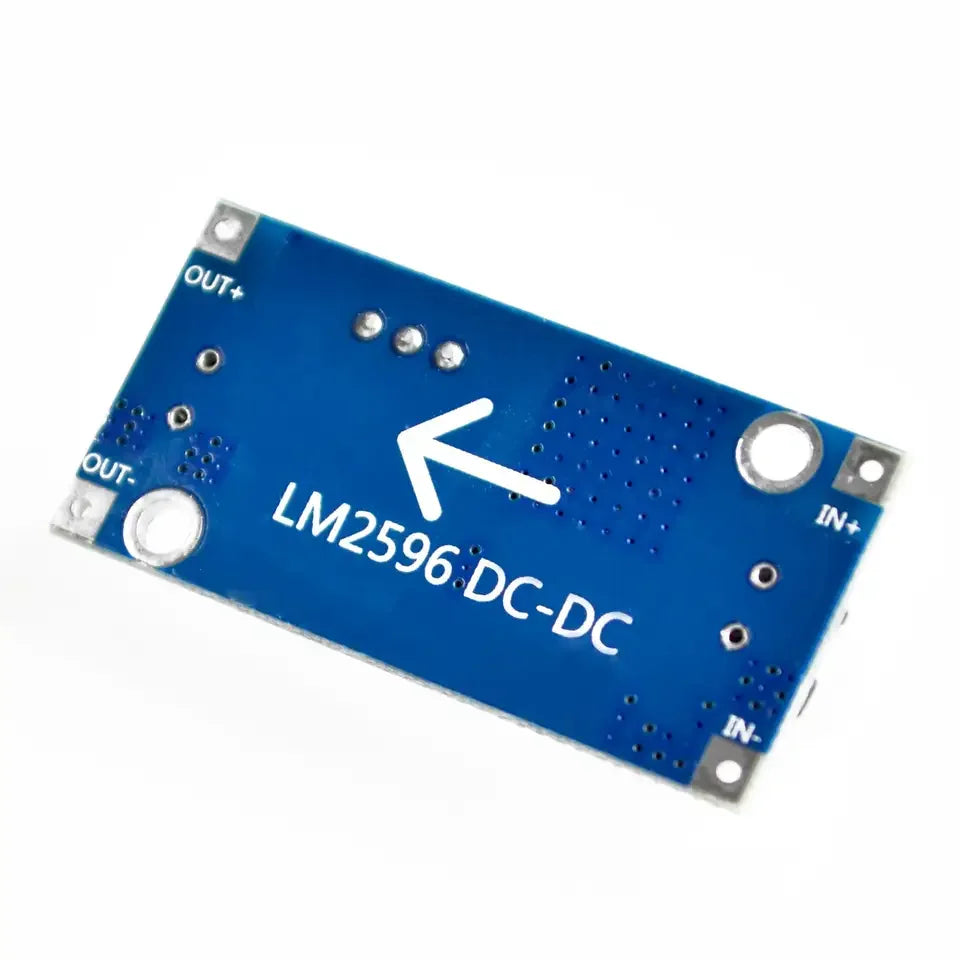

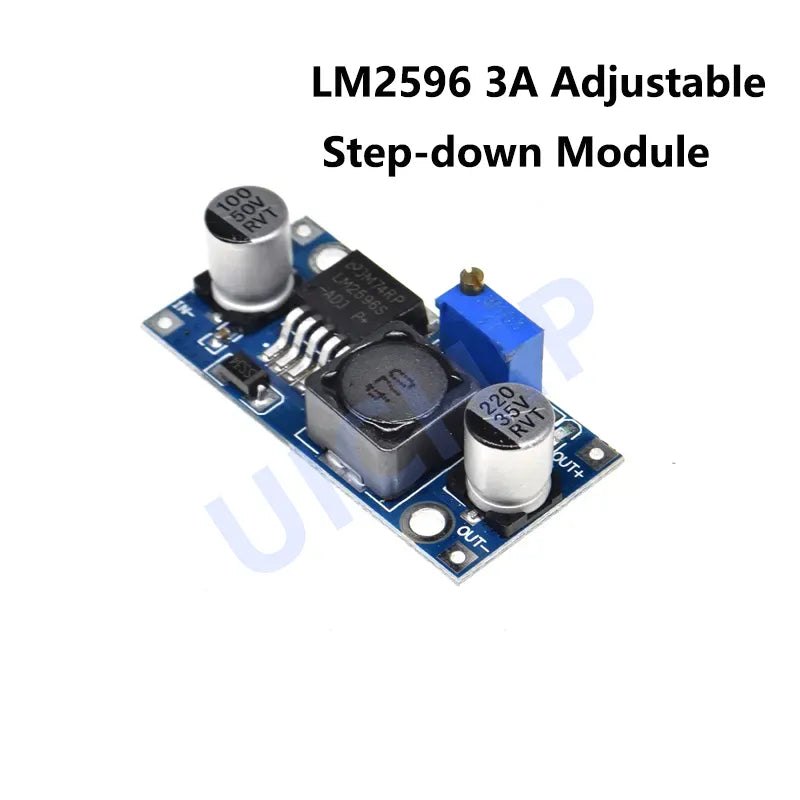

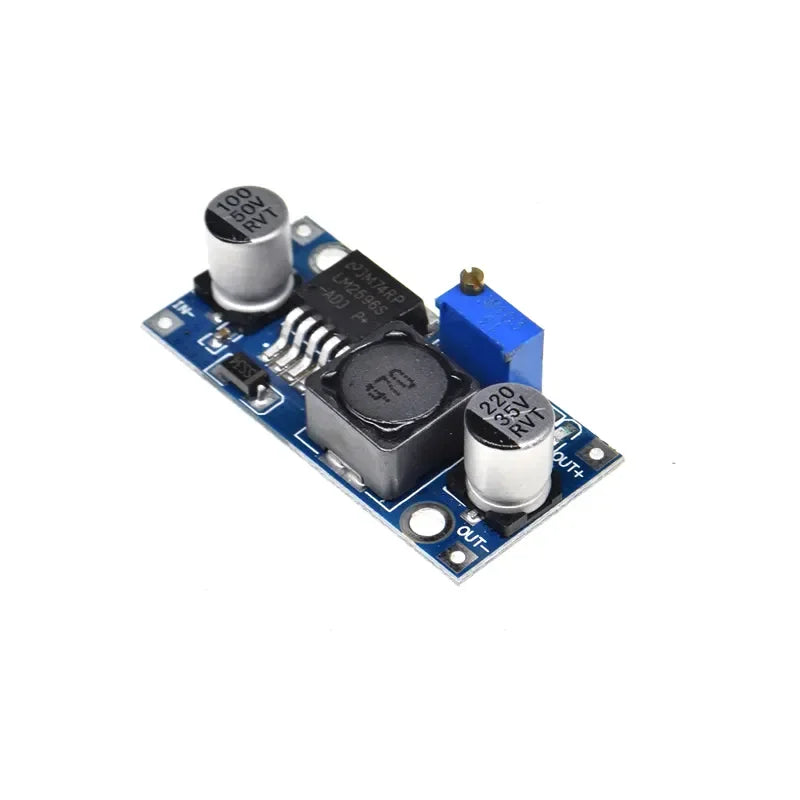

LM2596 DC-DC Step-down Power Supply Module 3A Adjustable Step-down Module LM2596S Voltage Regulator 24V 12V 5V 3V For arduino

LM2596 DC-DC Step-down Power Supply Module 3A Adjustable Step-down Module LM2596S Voltage Regulator 24V 12V 5V 3V For arduino

$2.26 AUD
$2.26 AUD
Sale Sold out
Tax included.
Color

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Condition: New

Type: Logic ICs

Model Number: LM2596

Supply Voltage: international standard

Dissipation Power: international standard

is_customized: Yes

Operating Temperature: international standard

Application: Computer

  • Name : LM2596 DC-DC Buck module

  • Input voltage :4V ~ 35V

  • The output voltage : 1.23V ~ 30V

  • Output Current :3A( Max)

  • Conversion efficiency:92%( MAX )

  • Output ripple: <30mV

  • Switching frequency: 150KHz

  • Working temperature: -forty Five~ +85

  • Size :43mm * 21mm * 14mm(Long*Width*Hight)

    Features:

    1. the range ofinput voltage: 3.2 V to 40 V dc(input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)

    2. the range ofoutput voltage: 1.25 V dc to 35 V voltage adjustable,high efficiency (92%)largest maximum output current is 3A.

    Instructions:

    1. Power (3-40V), power indicator light, the module is working properly.

    2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

    Note:

      Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.
