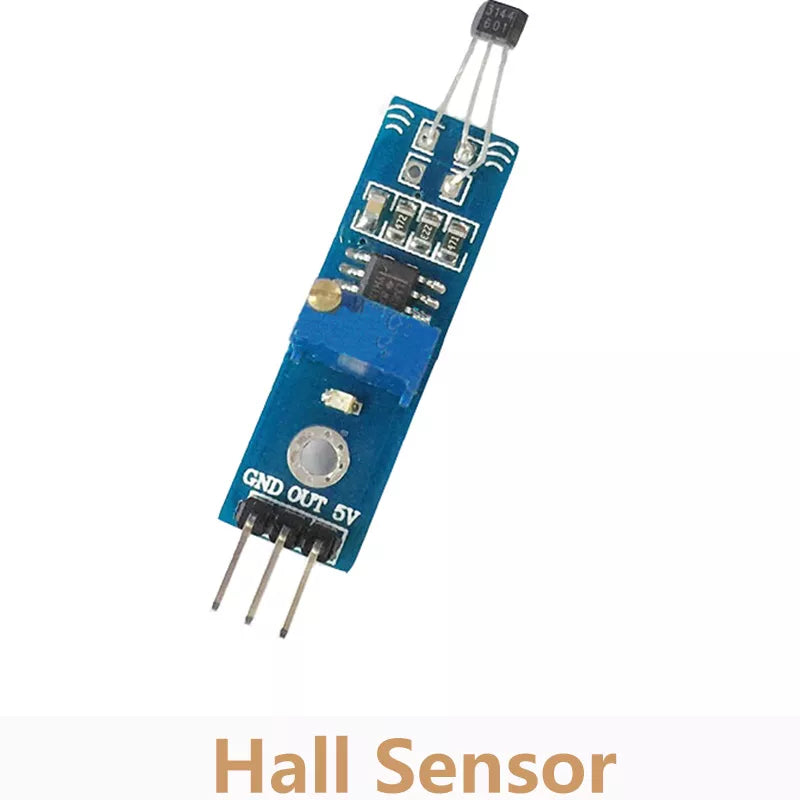

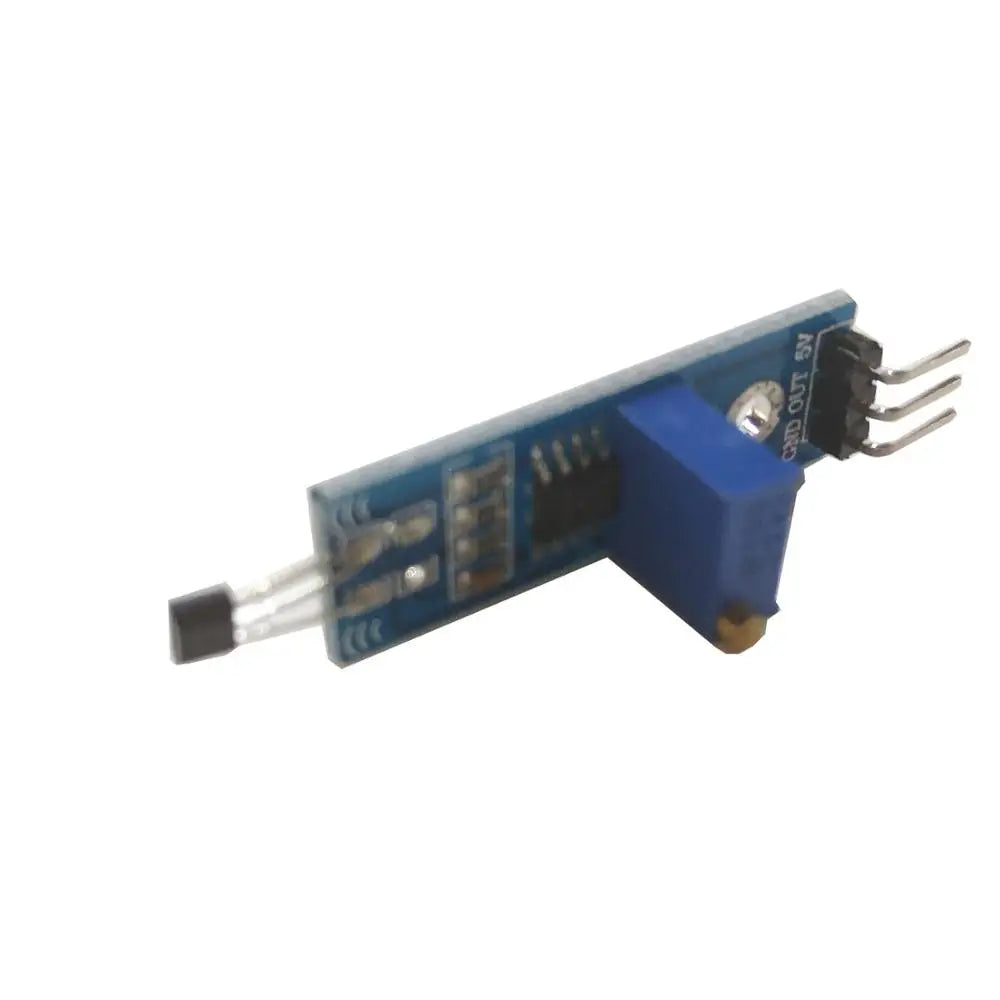

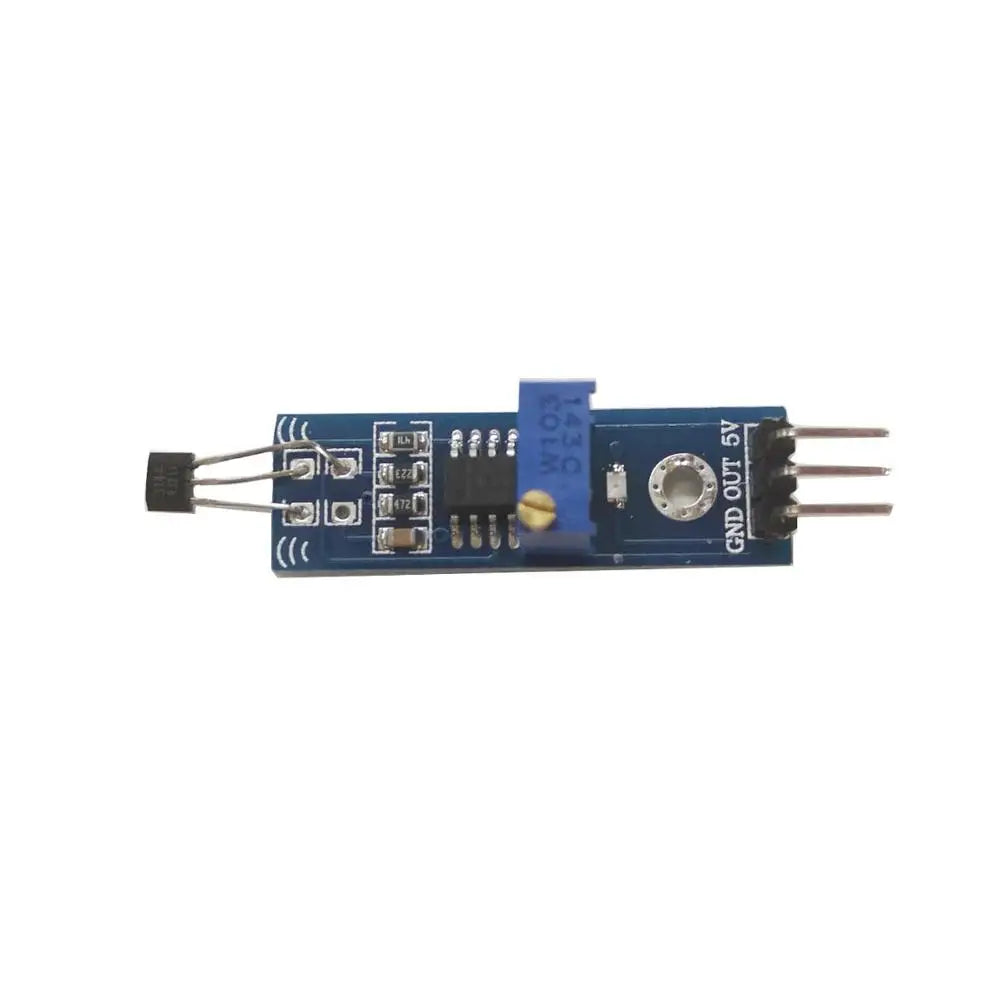

Hall Effect Sensor Module (3144)

A Hall effect sensor module using the 3144 sensor and an LM393 comparator – detect magnets for speed counting, door sensors and position sensing.

Specifications

• Sensor: 3144 Hall effect
• Comparator: LM393

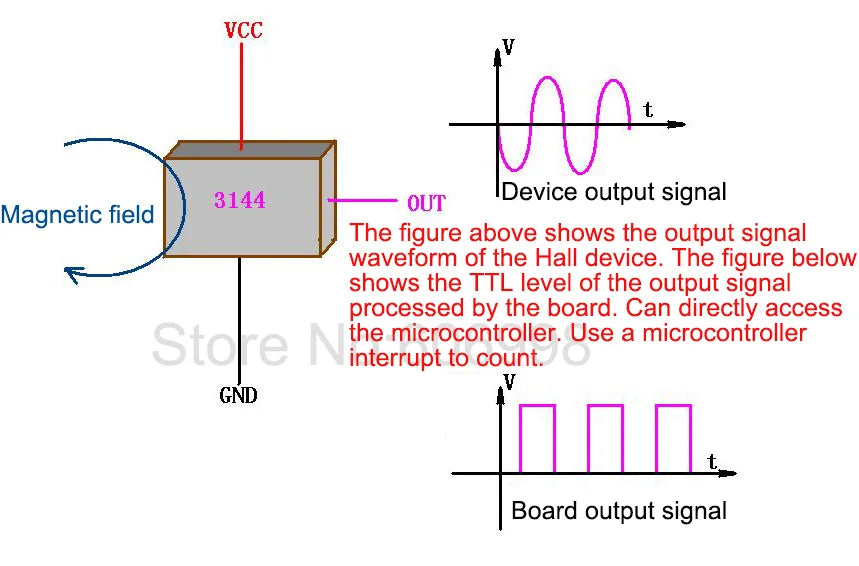

• Output: digital, active low when a magnet is present
• Adjustable sensitivity
• Supply: 5V
