SPECIFICATIONS

Brand Name: Estardyn

Origin: Mainland China

Condition: New

Type: Voltage Regulator

Model Number: GY-MAX4466

Supply Voltage: 5

Dissipation Power: 1

is_customized: Yes

Operating Temperature: -40-+80

Application: Speaker

Package: SMD

Description:

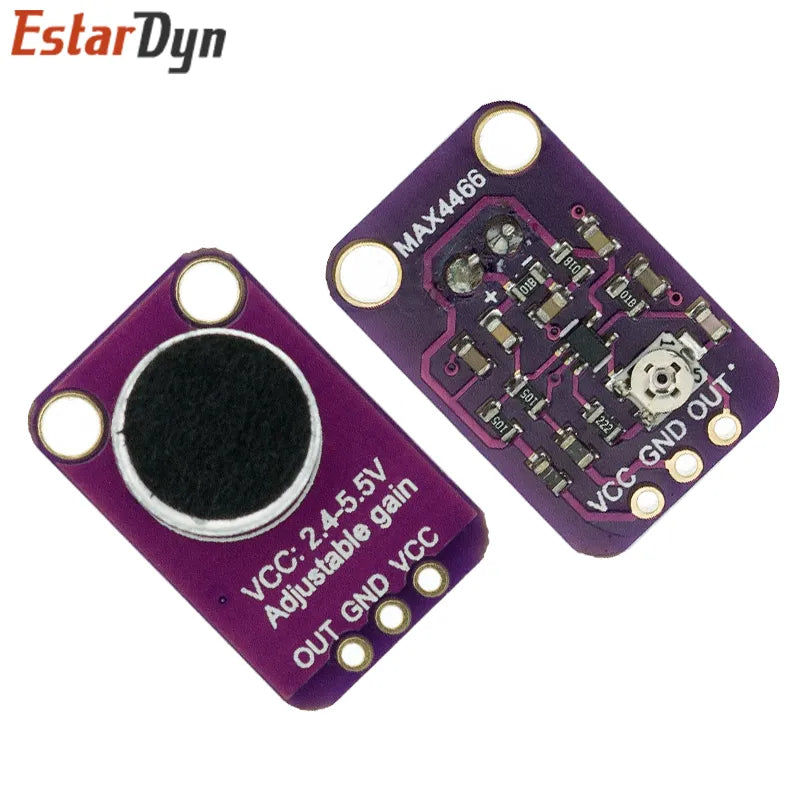

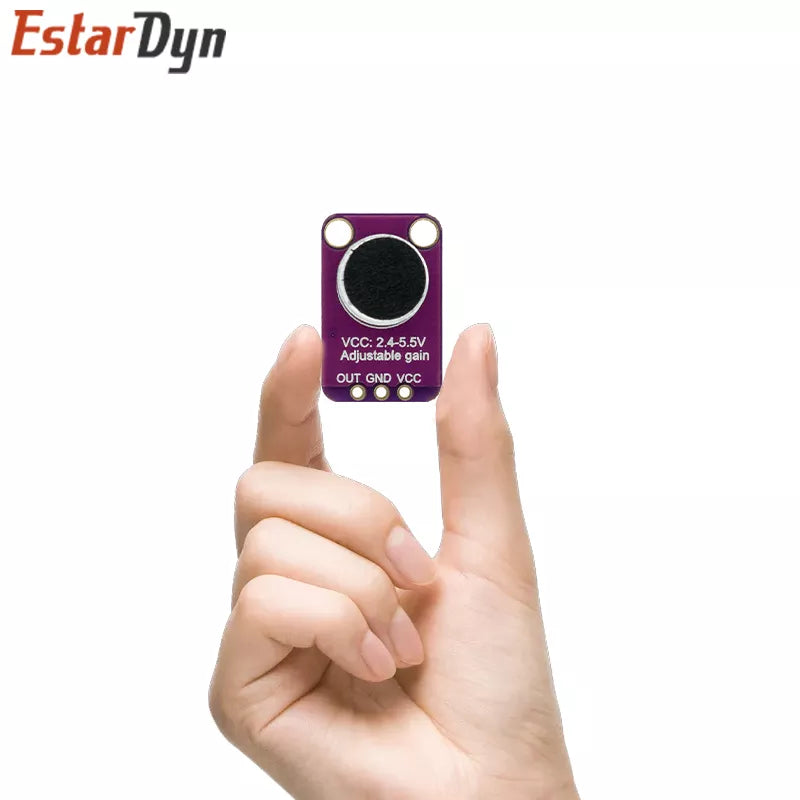

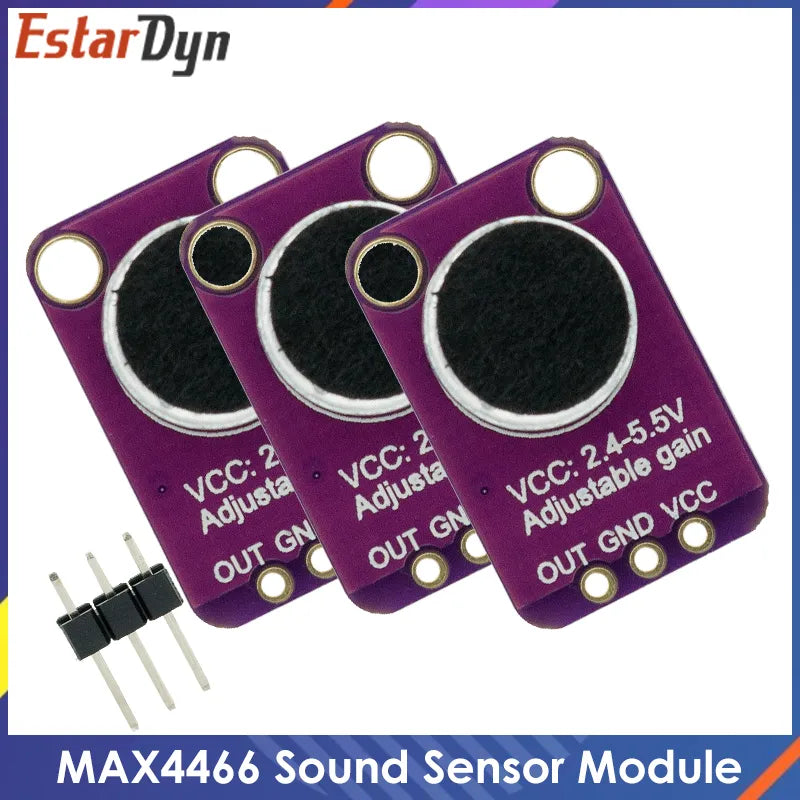

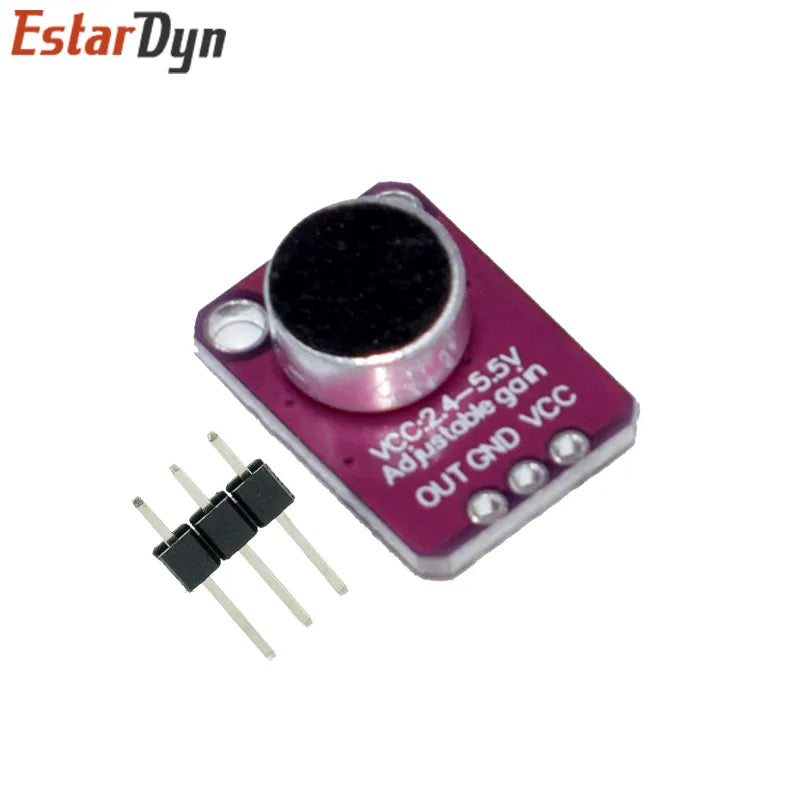

Add an ear to your project with this well-designed electret microphone amplifier. This fully assembled and

tested board comes with a 20-20KHz electret microphone soldered on. For the amplification, we use the

Maxim MAX4466, an op-amp specifically designed for this delicate task! The amplifier has excellent power

supply noise rejection, so this amplifier sounds really good and isn't nearly as noisy or scratchy as other

mic amp breakouts we've tried!

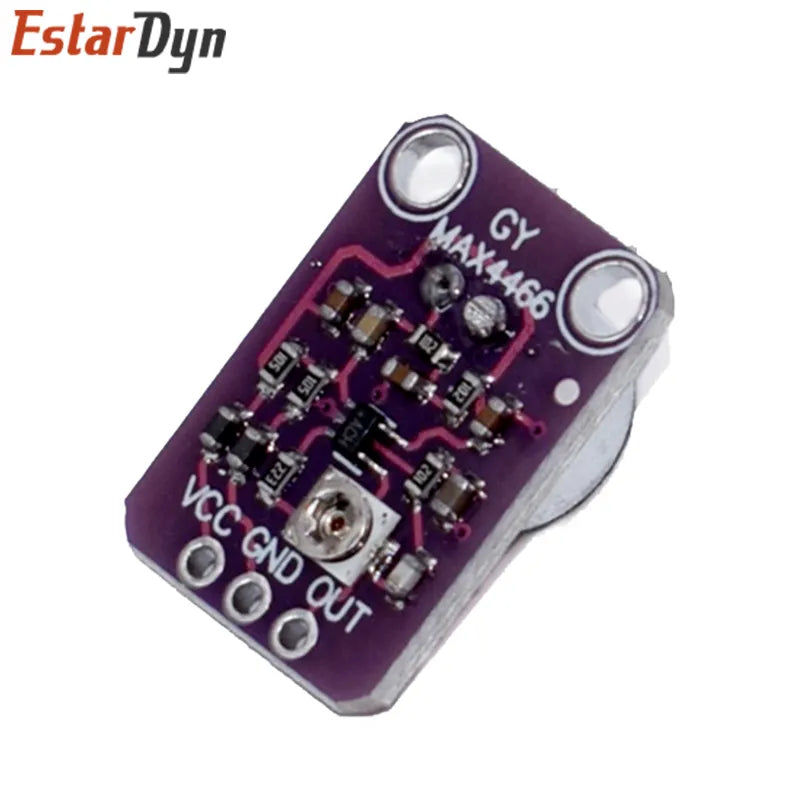

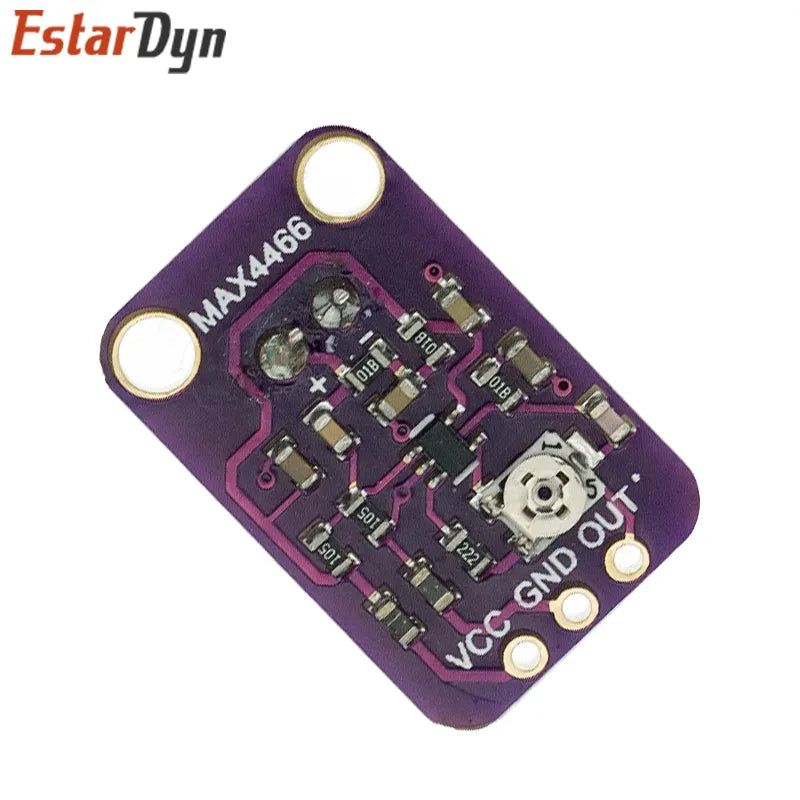

This breakout is best used for projects such as voice changers, audio recordingmpling, and audio-reactive projects that use FFT. On the back, we include a small trimmer pot to adjust the gain. You can

set the gain from 25x to 125x. That's down to be about 200mVpp (for normal speaking volume about 6"

away) which is good for attaching to something that expects 'line level' input without clipping, or up to

about 1Vpp, ideal for reading from a microcontroller ADC. The output is rail-to-rail so if the sounds gets

loud, the output can go up to 5Vpp!

Using it is simple:

Connect GND to ground, VCC to 2.4-5VDC.

For the best performance, use the "quietest" supply available (on an for Arduino, this would be the 3.3V supply).

The audio waveform will come out of the OUT pin. The output will have a DC bias of VCC/2 so when its

perfectly quiet, the voltage will be a steady VCC/2 volts (it is DC coupled). If the audio equipment you're using

requires AC coupled audio, place a 100uF capacitor between the output pin and the input of your device. If

you're connecting to an audio amplifier that has differential inputs or includes decoupling capacitors, the

100uF cap is not required.

The output pin is not designed to drive speakers or anything but the smallest in-ear headphones- you'll need

an audio amplifier (such as 3.7W stereo amp) if you want to connect the amp directly to speakers. If you're

connecting to a microcontroller pin, you don't need an amplifier or decoupling capacitor - connect the OUT

pin directly to the microcontroller ADC pin.

For audio-reactive projects, we suggest using an FFT driver library which can take the audio input and 'translate' it into

frequencies.
