FNIRSI DSO TC3 Digital Oscilloscope Transistor Tester Function Signal Generator 3 in 1 Multifunction Electronic Component Tester
FNIRSI DSO TC3 Digital Oscilloscope Transistor Tester Function Signal Generator 3 in 1 Multifunction Electronic Component Tester
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: FNIRSI
Origin: Mainland China
DIY Supplies: ELECTRICAL
Model Number: DSO-TC3
Certification: CE
Display screen: 2.4 inch TFT color screen
Supply voltage: Rechargeable lithium battery
Charging specifications: Type-C 5V
Bracket specifications: All-in-one foldable stand
Real-time sample rate: 10MSa/s
Analog Bandwidth: 500Khz
Input resistance: 1MΩ
Coupling method: AC/DC
Test voltage range: 400V
Vertical Sensitivity (x1): 10mV-10V
Horizontal time base range: 1us-10s
Trigger mode: Auto / Normal / Single
Trigger type: Rising edge / Falling edge
Waveform Freeze: Yes
Automatic measurement: Yes
Diodes: Forward voltage drop <4.5V
Reglulated diode: 0.01~4.5V
MOSFET: JFET IGBT MOSFET
SCR: Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor: 5pF~100mF
Resistor: 0.01Ω~50MΩ
Inductor: 10uH~1000mH
Battery: 0.1~4.5V
Input voltage: 0~40V
DS18B20: 0-85℃
DHT11: 0-60℃/5-95%
Infrared remote decoding: NEC protocol infrared code

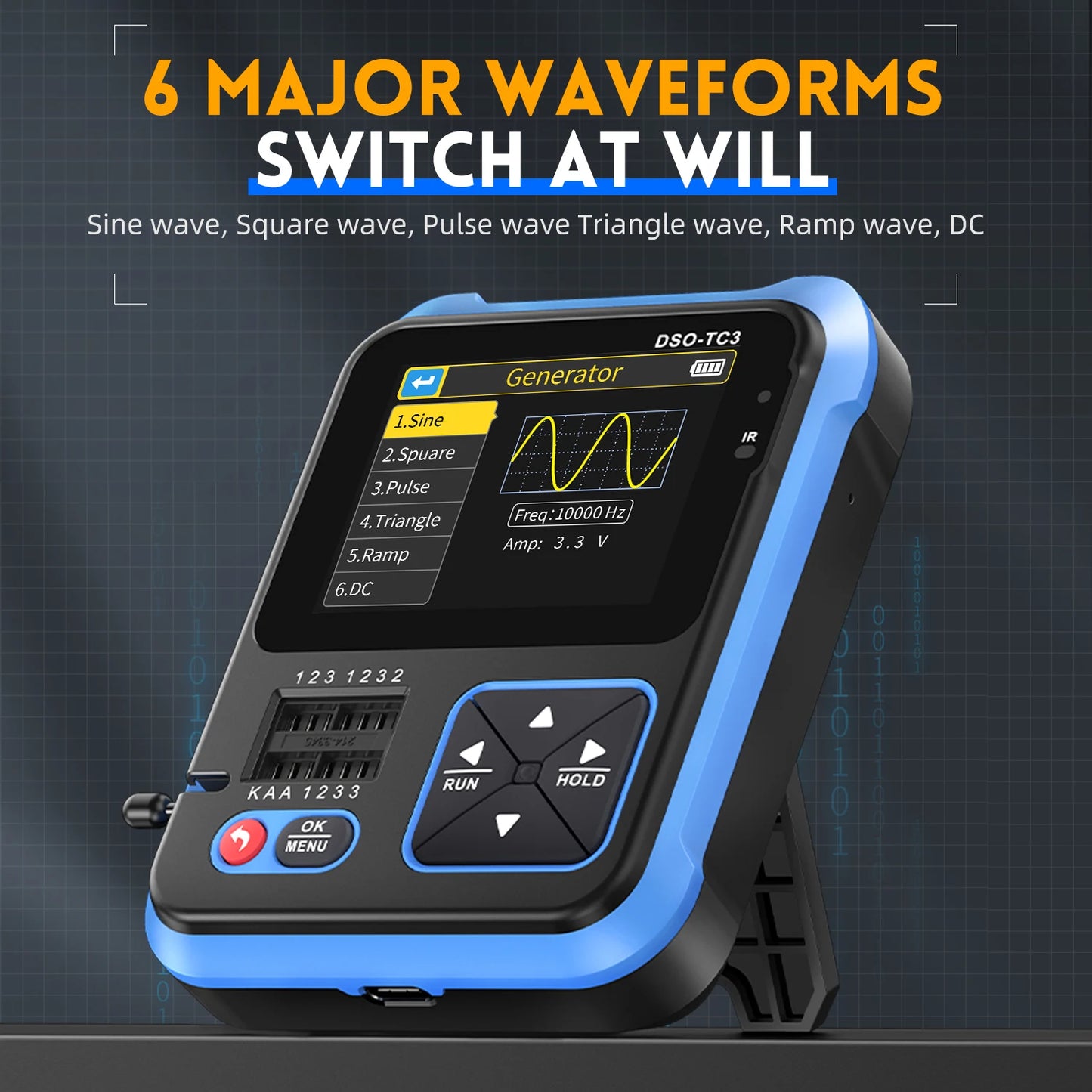

Triangle wave: 1-10KHz/0-3.3V/50%,1-10KHz/0-3.3V/50%
Square wave: 1-100KHz/3.3V/50%
Pulse wave: 1-100KHz/3.3V/0-100%
Ramp: 1-10KHz/0-3.3V/0-100%
DC: 0-3.3V
DSO-TC3 Product Manual:https://www.mediafire.com/file/3eddj8oght8m0q3/TC3_product_manual.pdf/file

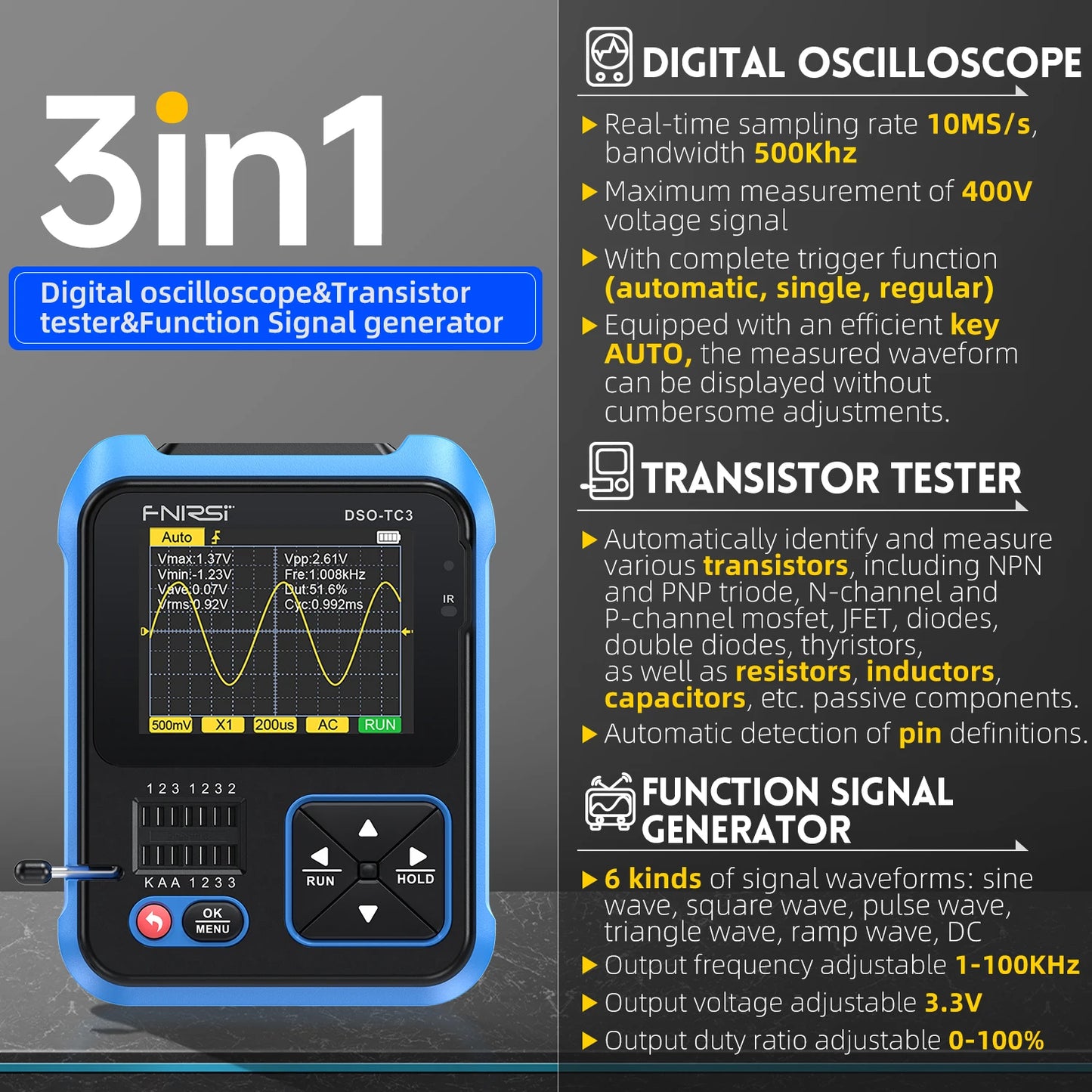

FNIRSI DSO-TC3 combines a digital oscilloscope, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.

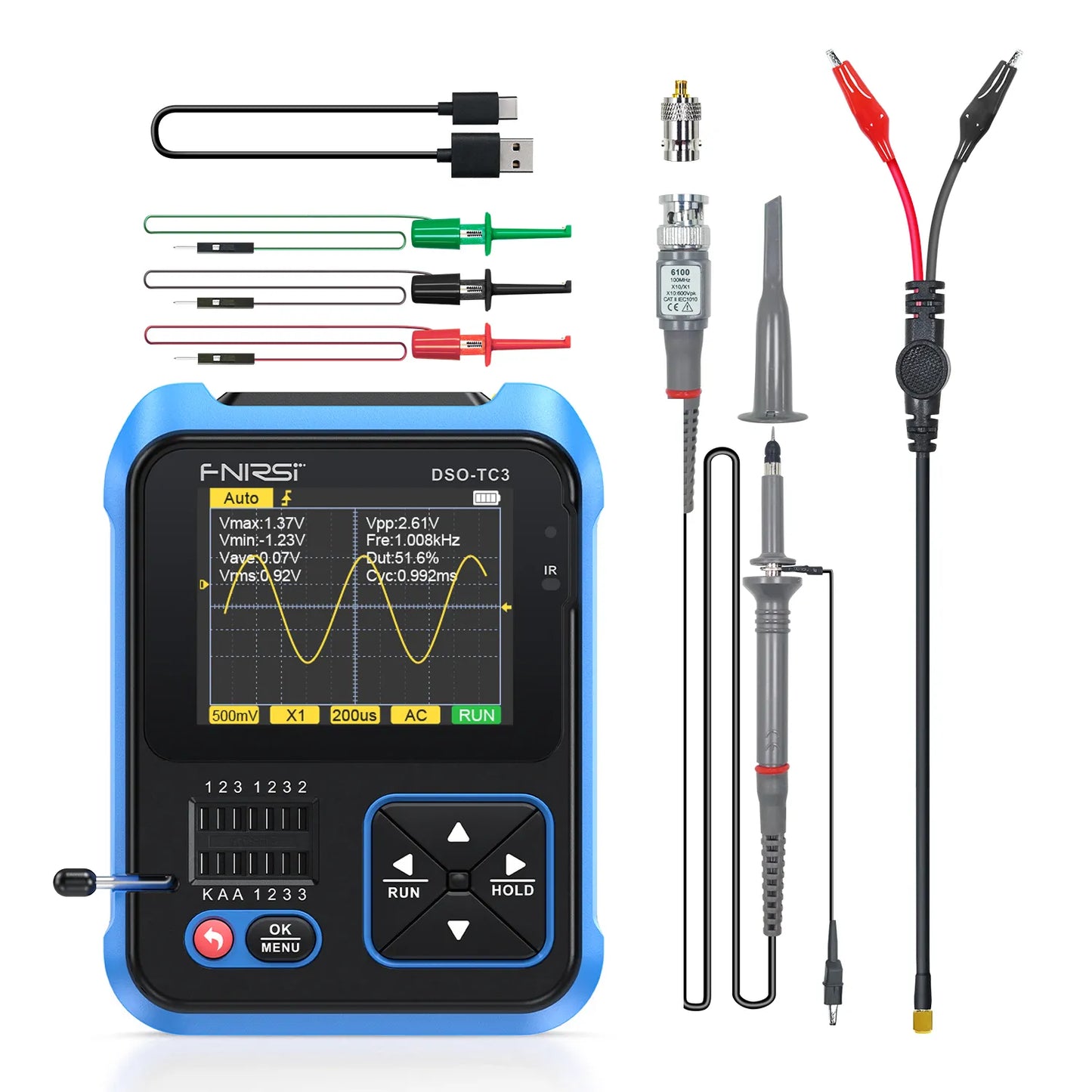

Packing list:
NO.1(Standard)
DSO-TC3 *1
Ordinary probe*1
Test hook*3
Type-C charging cable*1
Packing box*1
Manual*1
NO.2(Option)
DSO-TC3 *1
P6100 High Voltage Probe*1
Ordinary probe*1
Test hook*3
Adapter*1
Type-C charging cable*1
Packing box*1
Manual*1
