Banana Pi M2 Zero-H3 BPI-M2 Zero with Allwinner H3 chip compatible with raspberry pi zero size
Banana Pi M2 Zero-H3 BPI-M2 Zero with Allwinner H3 chip compatible with raspberry pi zero size
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: spotpear
Demo Board Type: ARM
Origin: Mainland China
Certification: CE
Overview
This is not a Raspberry Pi Zero , It is a size compatible with Raspberry Pi Zero But CPU is different from Raspberry Pi Zero
which mean you can not run Raspberry Pi official Raspbian OS
However, The Banana Pi support their official Banana Pi debian OS
Product introduction

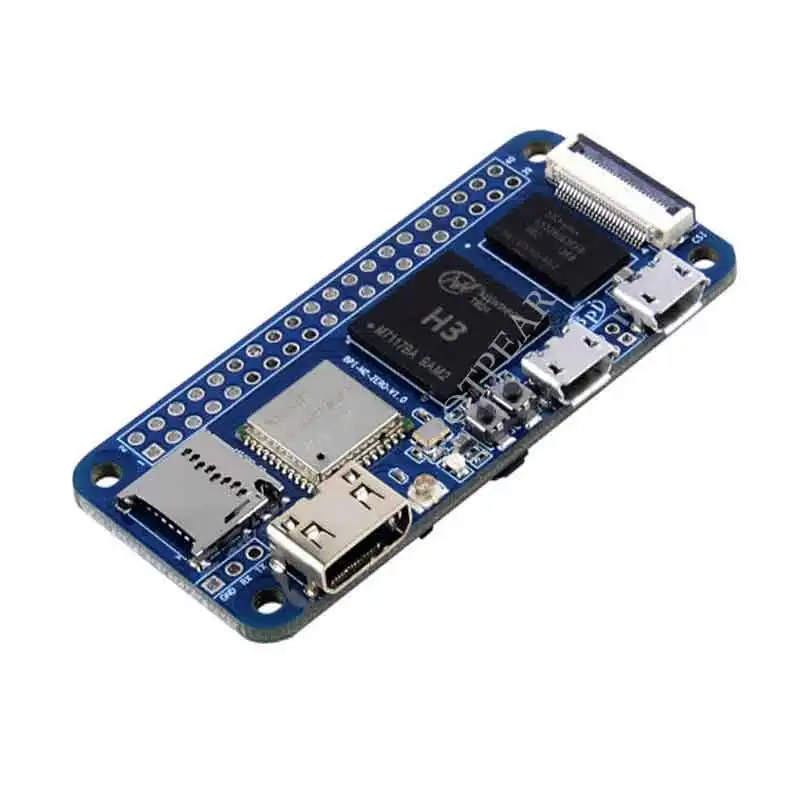

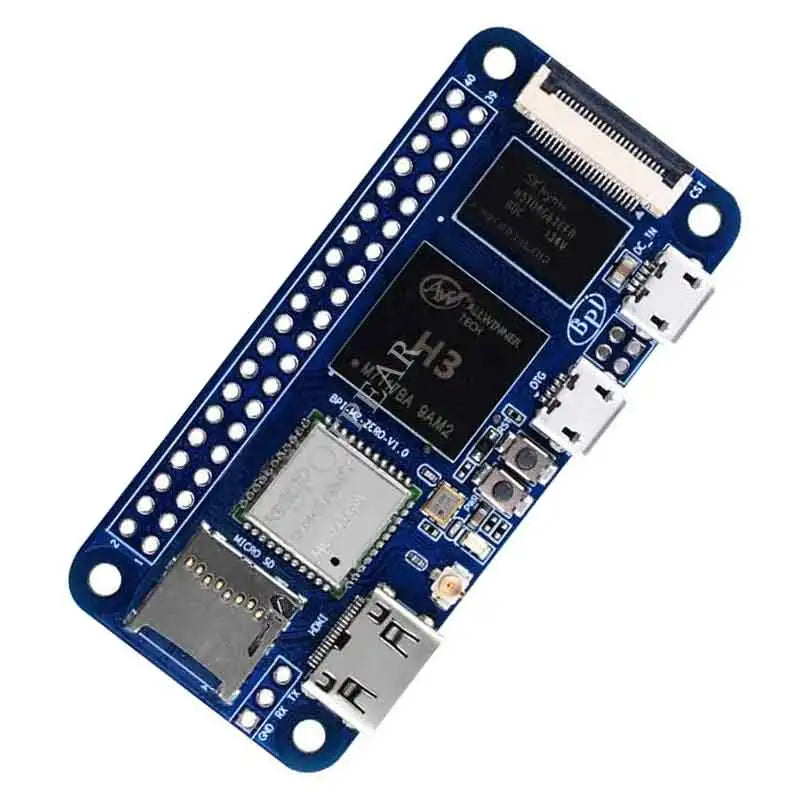

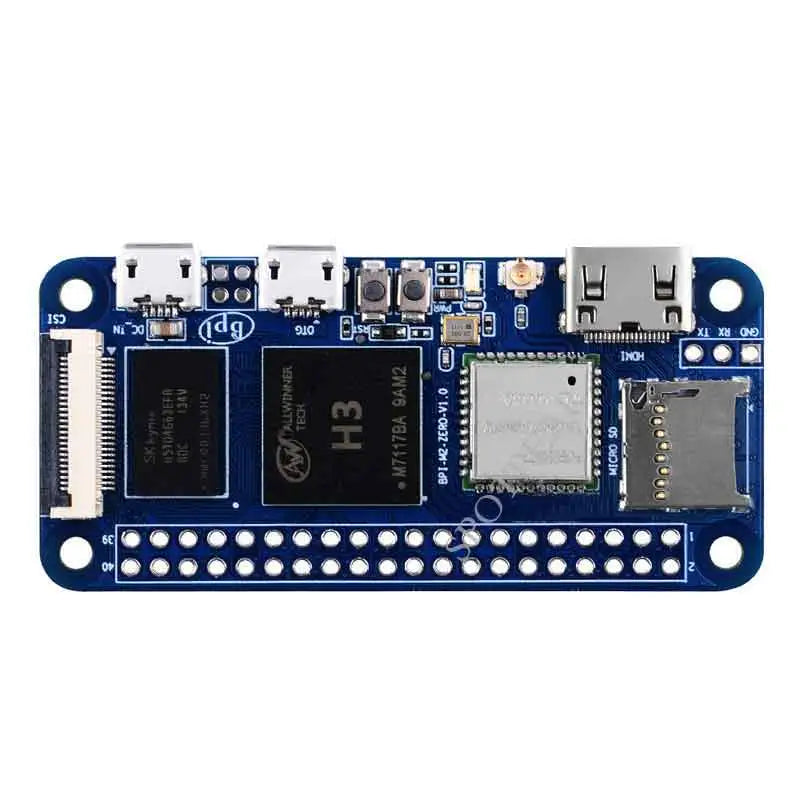

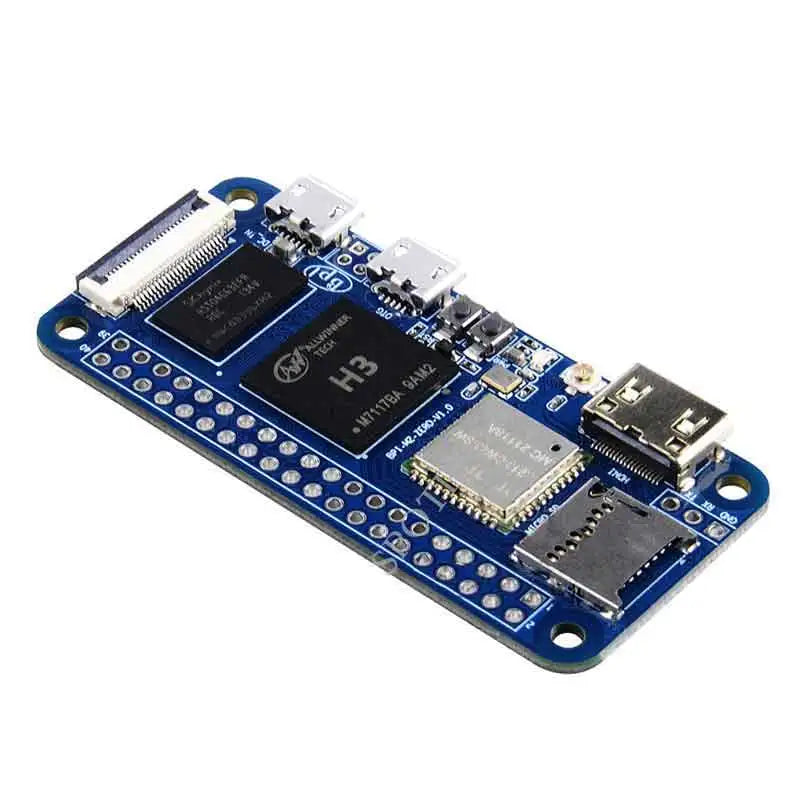

The Banana Pi M2 Zero is an ultra compact single board computer which measures only 60mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3(option H2+ H5) processor, with 512MB RAM. It‘s ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.
Hardware interface
Hardware Spec
HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W | |||
Module |
Banana Pi BPI-P2 Zero |
Banana Pi BPI-M2 Zero |
Raspberry Pi Zero W |
CPU |
H3 Quad-core Cortex-A7 H265/HEVC 1080P |
H3 Quad-core Cortex-A7 H265/HEVC 1080P |
Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core |
GPU |
Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
VideoCore IV |
Memory (SDRAM) |
512M DDR3(shared with GPU) |
512M DDR3(shared with GPU) |
512 MB DDR2 |
Onboard Storage |
TF card (Max. 64GB) |
TF card (Max. 64GB) |
TF card (Max. 64GB) |
Onboard Network |
100M LAN |
NOPE (but can extension with PIN define) |
NOPE |
PoE power |
PoE function support |
NOPE |
NOPE |
Onboard flash |
8G eMMC |
NOPE |
NOPE |
Onboard WIFI |
SDIO AP6212（option AP6181、AP6335） |
SDIO AP6212（option AP6181、AP6335） |
802.11n wireless, Bluetooth 4.1 |
Video decoding |
1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 |
1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 |
1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder |
Video input |
A CSI input connector Camera |
A CSI input connector Camera |
CSI camera connector |
Video Outputs |
mini HDMI 1.4,1080P@30fps, DHCP |
mini HDMI 1.4,1080P@30fps, DHCP |
Mini HDMI and USB On-The-Go ports |
Audio Output |
Mini HDMI |
Mini HDMI |
Mini HDMI |
Power Source |
Micro USB with 5V/2A or PoE power |
Micro USB with 5V/2A |
5V/2A |
USB 2.0 Ports |
one USB 2.0 OTG |
one USB 2.0 OTG |
one USB 2.0 OTG |
Buttons |
Power Button, Reset Button |
Power Button, Reset Button |
Composite video and reset headers |
Low-level peripherals |

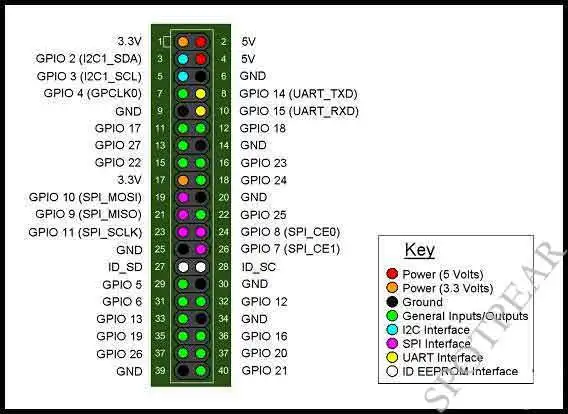

40 Pins Header,compatible with Raspberry Pi 3 |
40 Pins Header,compatible with Raspberry Pi 3 |
40 PIN |
uart GPIO(1x3) pin |
UART, ground |
UART, ground |
UART |
LED |
Power led & Status led |
Power led & Status led |
Power Status LED |
IR |
N/A |
N/A |
N/A |
Supported OS |
android linux |
android linx |
Linux |
Product size |
65mm X 52.5mm |
65mm × 30mm |
65mm x 30mm |
Weight |
30g |
15g |
9g |

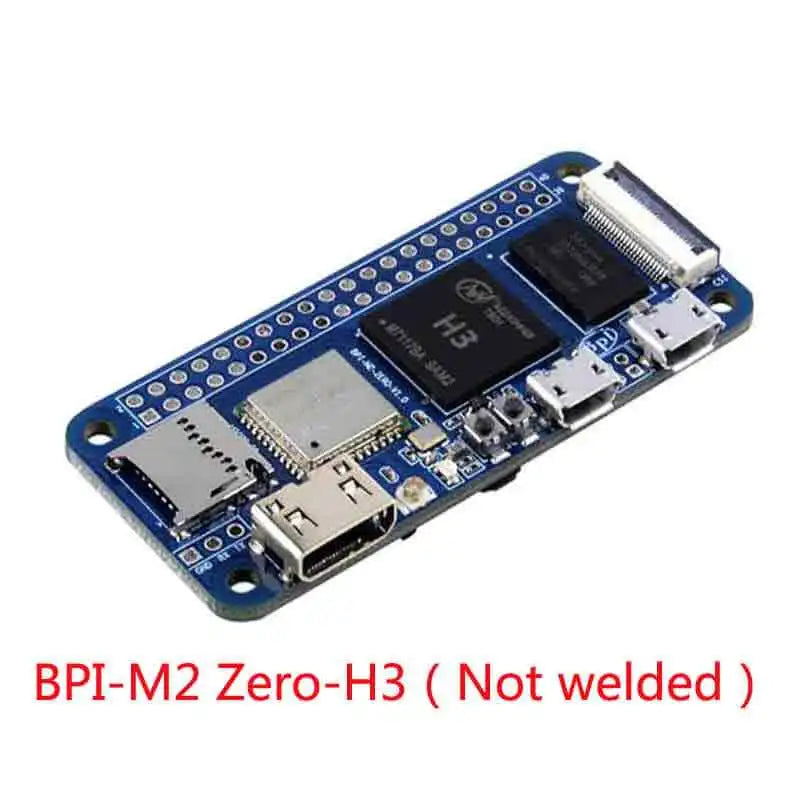

Bundle ：BPI-M2 Zero(Not weled) x1

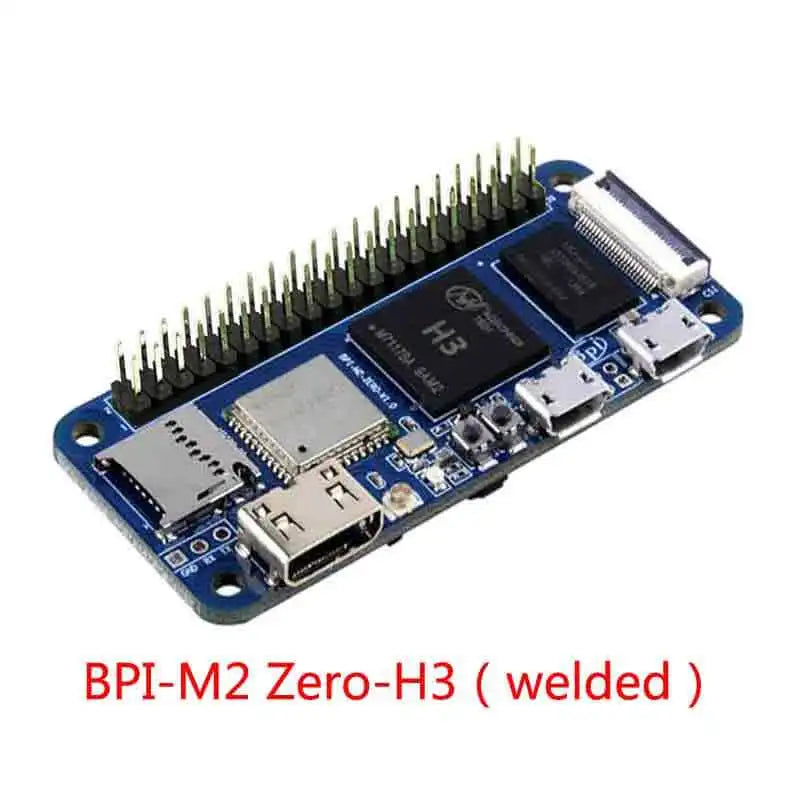

Bundle ：BPI-M2 Zero(weled) x1
