SPECIFICATIONS

Brand Name: AOKIN

Accessory Type: Camera Module

Origin: Mainland China

Compatible With: For Raspberry Pi 3 Model B+ Camera Module

Type 3: For Raspberry Camera

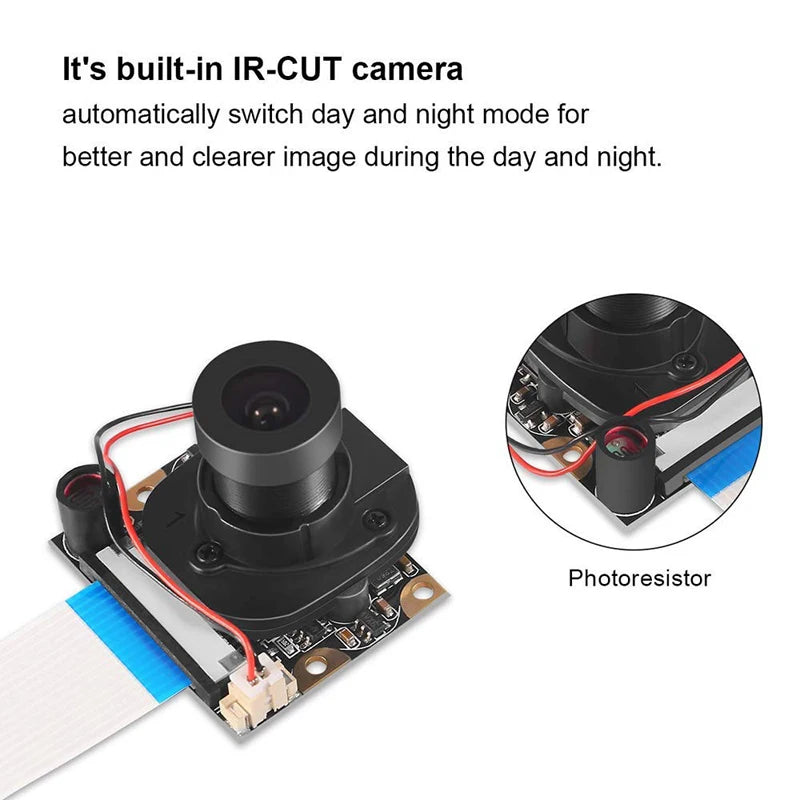

Type 4: Automatic Ir-cut Night Vision Camera

Type 5.: 5mp Ov5647 Sensor 1080p Hd Webcam

Type 6: For Raspberry Pi / 3 (b 2 B + Model Model

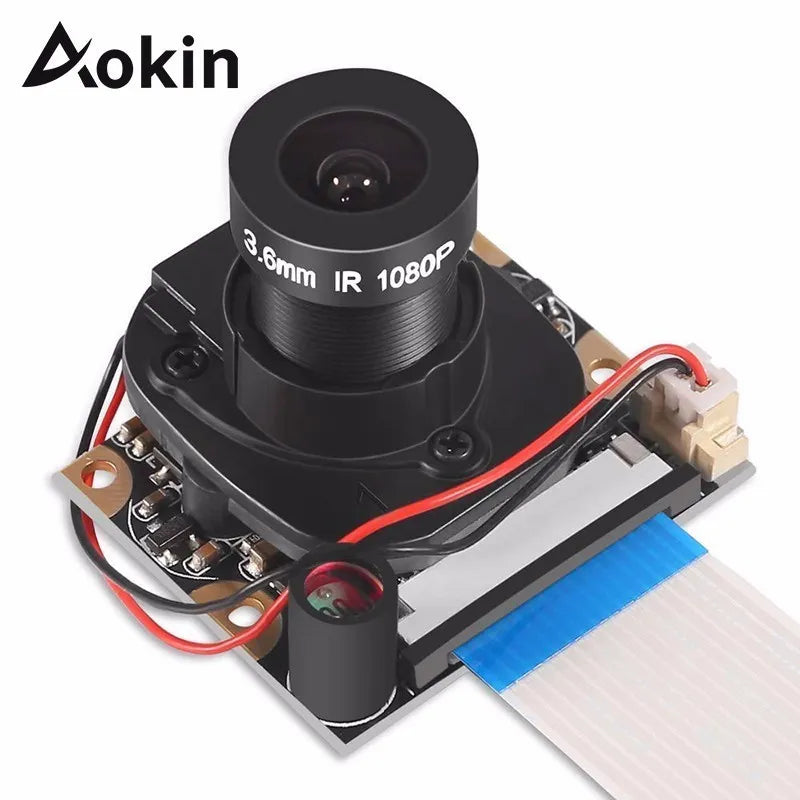

Aokin For Raspberry Pi Camera Module With Automatic Ir-cut Night Vision Camera 5mp 1080p Hd Webcam For Raspberry Pi 3 Model B

Product Description

Color:camera

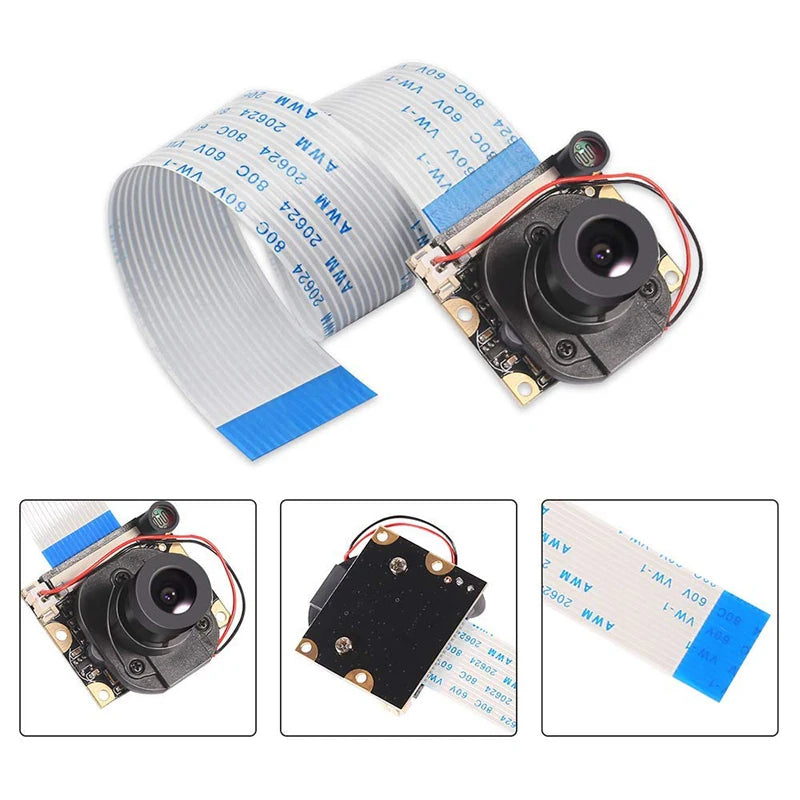

This Camera Module Is A Custom Designed Easy Plug And Play For Raspberry Pi.

It Attaches To Raspberry Pi By Way Of One Of The Two Small Sockets On The Board Upper Surface.

This Bus Travels Along The Ribbon Cable That Attaches The Camera Board To The Pi.

The Sensor Itself Has A Native Resolution Of 5 Megapixel

Still Picture Resolution: 2592 X 1944, Also Supports 1080p30, 720p60 And 640x480p60/90 Video

The Camera Is Supported In The Latest Version Of Raspbian, Raspberry Pi's Preferred Operating System.

Specifications

Ccd Size: 1/4 Inch

Aperture(f): 1.8

Focal Length: 3.6 Mm (adjustable)

Field Of View: 72 Degrees

Preferred Sensor Resolution: 1080p

Dimension: 1.42inch X1.04inch X0.94inch

4 Screw Holes Whiche Are Used For A Fixed Position

Support 3.3v Power Output

Supports Connecting Infrared Led Or Flash Led

Package Content:

1 X 5mp Camera Module Board
