PACKAGE CONTENT:(  NOT include Raspberry Pi board .)

1. RPi Relay Board x 1

2. RPi screws pack x 1

1 2

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.

RPi Relay Board Features

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

• High quality relays, loads up to 5A 250V AC or 5A 30V DC

• Photo coupling isolation, prevent interference from high voltage circuit

• Onboard LEDs for indicating relays status

• Relay control jumper, allows to control the relays by custom pins other than the default pins

• Wiki English Manual , including examples in wiringPi, WebioPi, shell, python, and bcm2835

What's on the RPi Relay Board

1. Raspberry Pi GPIO interface:for connecting Raspberry Pi

2. Relay screw terminal:for connecting target devices

3. Relays

4. Photocoupler:PC817

5. Relay indicator

   • LED on: relay NC is opened, NO is closed

   • LED off: relay NC is closed, NO is opened

6. Power indicator

7. Relay control jumper

   • short the jumper: control the relays by default I/Os used in the example code

   • open the jumper: control the relays by custom I/Os through jumper wires

Photos

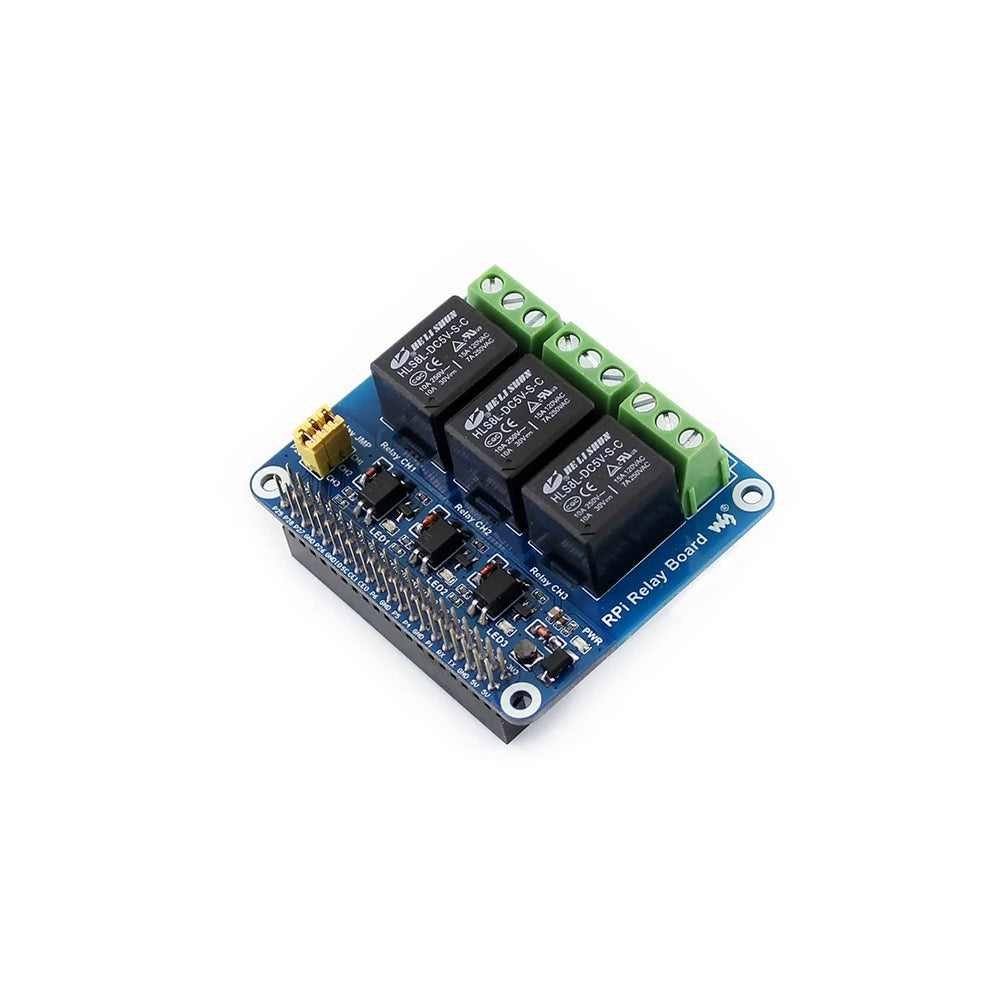

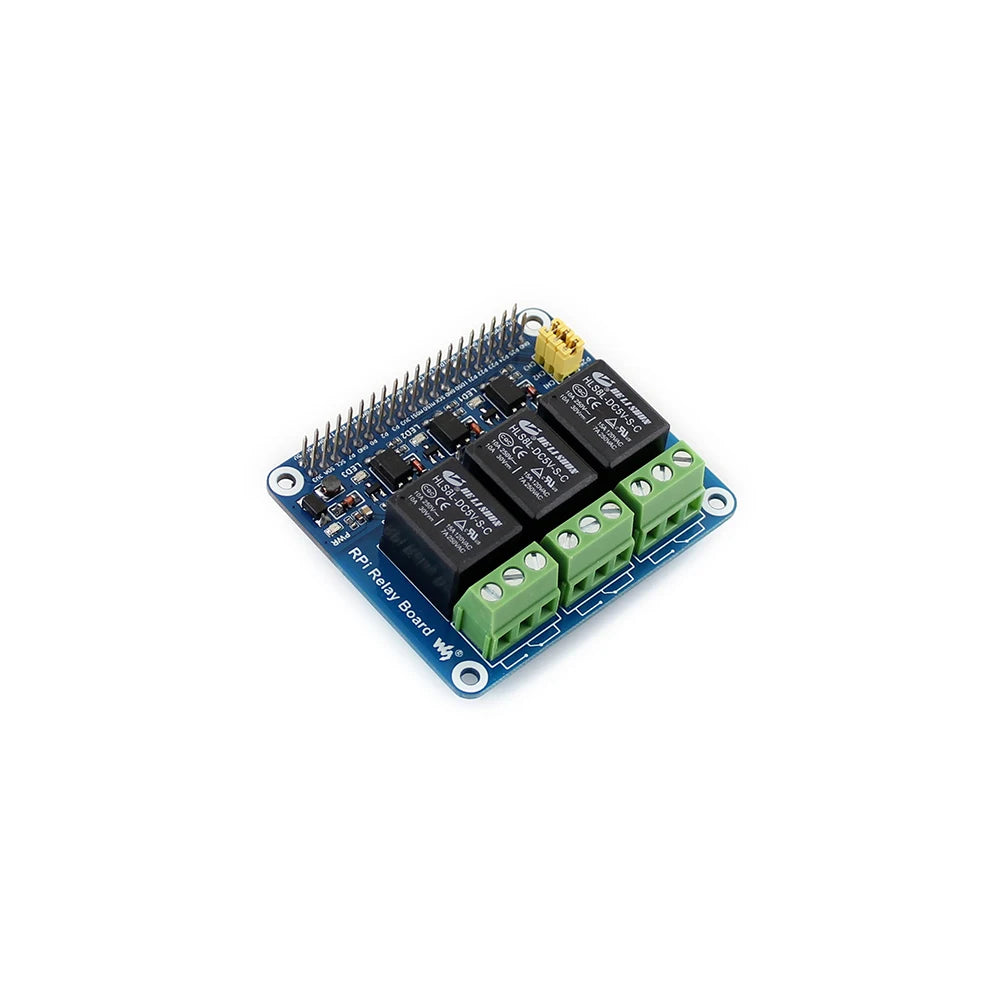

RPi Relay Board

RPi Relay Board back view

RPi Relay Board connecting with Raspberry Pi

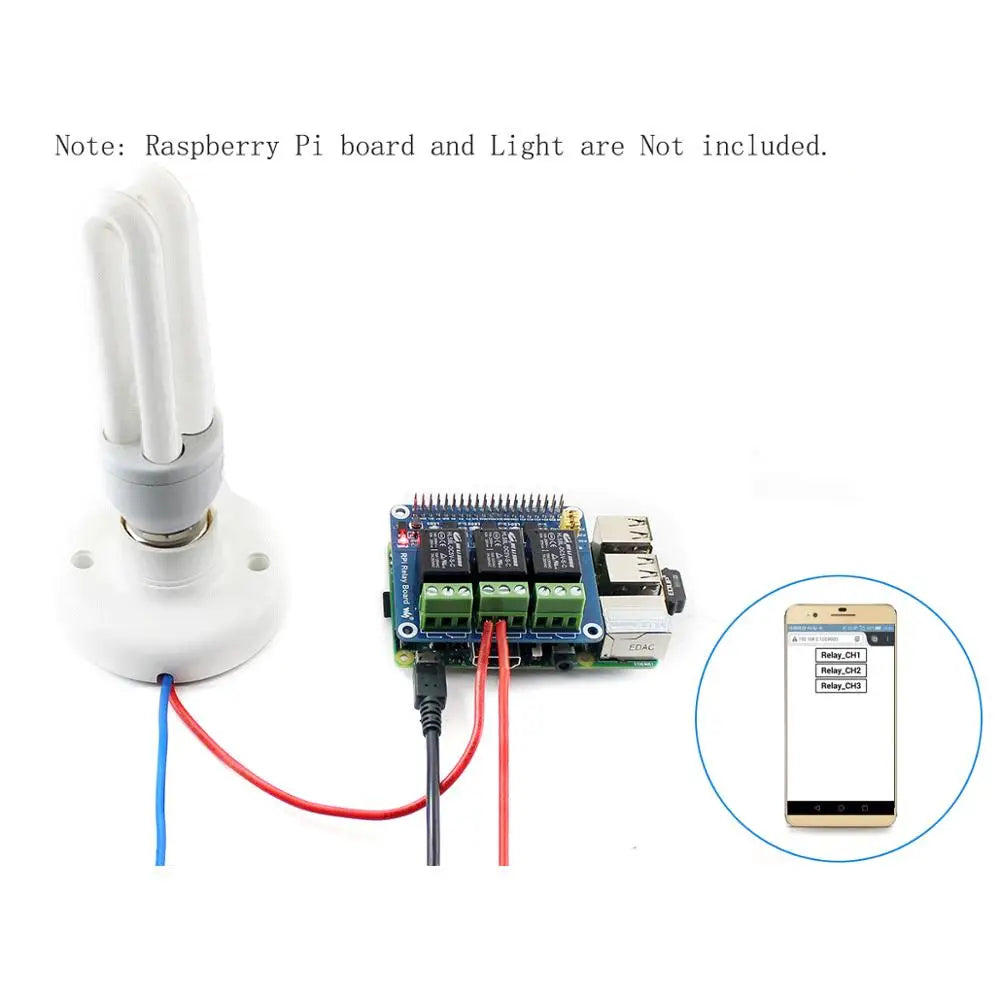

Control the lamp by mobile phone

Note : the Pi in the photos is NOT included.

Dimensions
