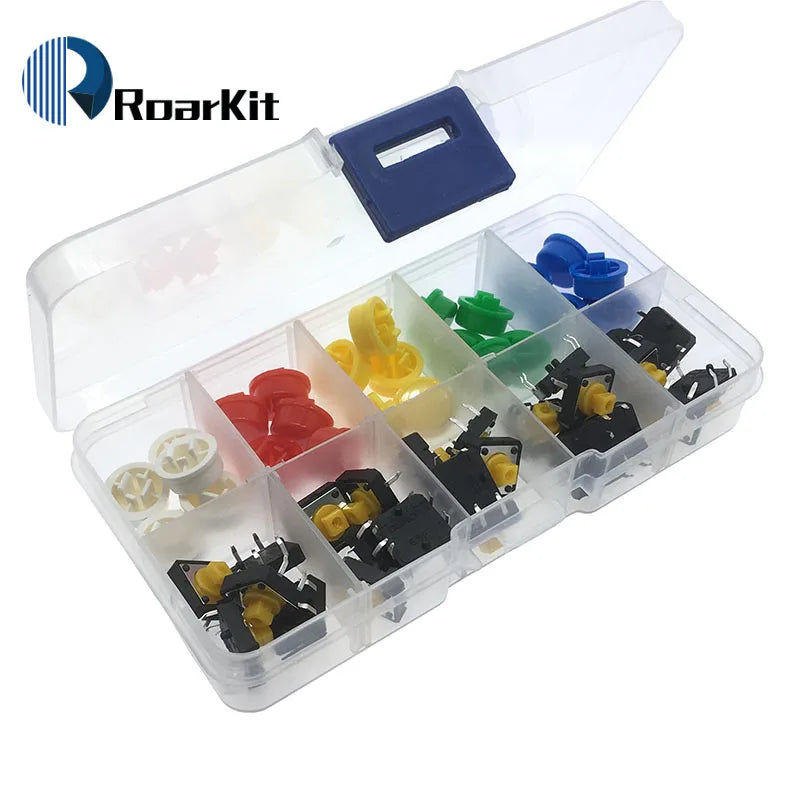

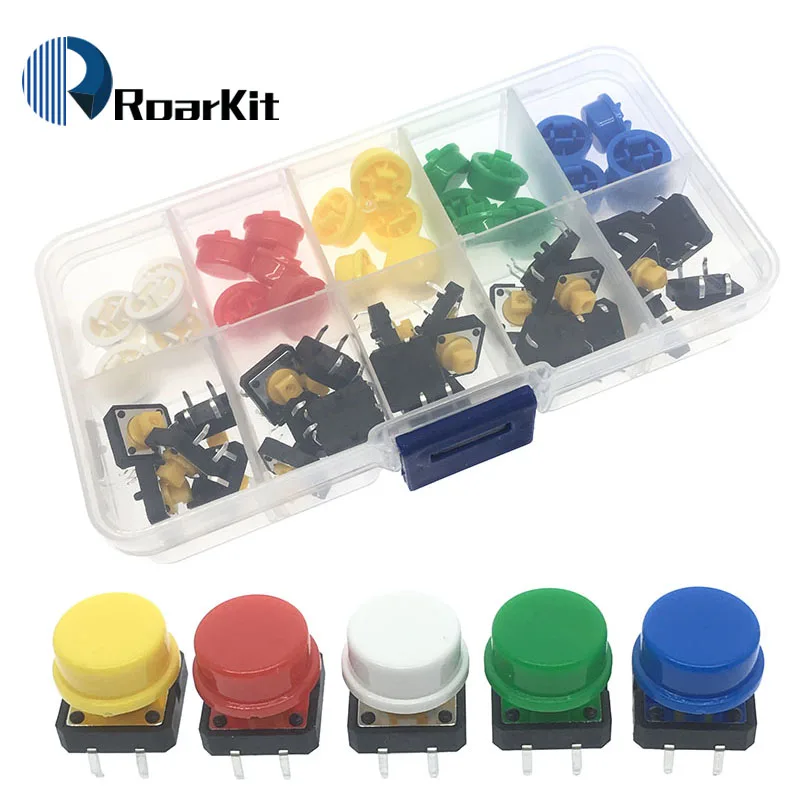

25PCS Tactile Push Button Switch Momentary 12*12*7.3MM Micro switch button + Button cap(5 colors) + Component box for Arduino
25PCS Tactile Push Button Switch Momentary 12*12*7.3MM Micro switch button + Button cap(5 colors) + Component box for Arduino
Regular price
$5.46 AUD
Regular price
Sale price
$5.46 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Model Number: 12*12*7.3MM Micro switch
(1) Square 12x12mm;
(2) Height: 7.3mm (excluding 3.5mm foot length);
(3) Four welding feet: longitudinal spacing: 12.5mm; lateral spacing: 4mm, spacing of two positioning columns: 9mm;
(4) Plunger type: (Plunger height 1.8mm) can be easily installed and directly installed on the work panel;
(5) Action force: 260gf;
(6) Rated capacity: 5-24VDC, 1-50mA;
(7) Insulation voltage: 30VDC;
(8) Contact configuration: 1 Normally open;
(9) Contact resistance: 100mΩ or less (initial value: DC5V1mA power);
(10) Insulation resistance: 100mΩ or more (DC250V);
(11) Withstand voltage: 500VAC, 50/60Hz1min;
(12) Bounce time: 5ms or less;
(13) Vibration malfunction: 10-55Hz, complex amplitude 1.5mm;
(14) Impact:
(15) Durability: more than 1000m/s2 ant about 100g or more;
(16) Malfunction: 100m/s2 or more and ant10g or more;
(17) Life: more than 1 million times;
(18) Use ambient temperature: -25 °C to 70 °C (in the absence of ice);
Package includes:

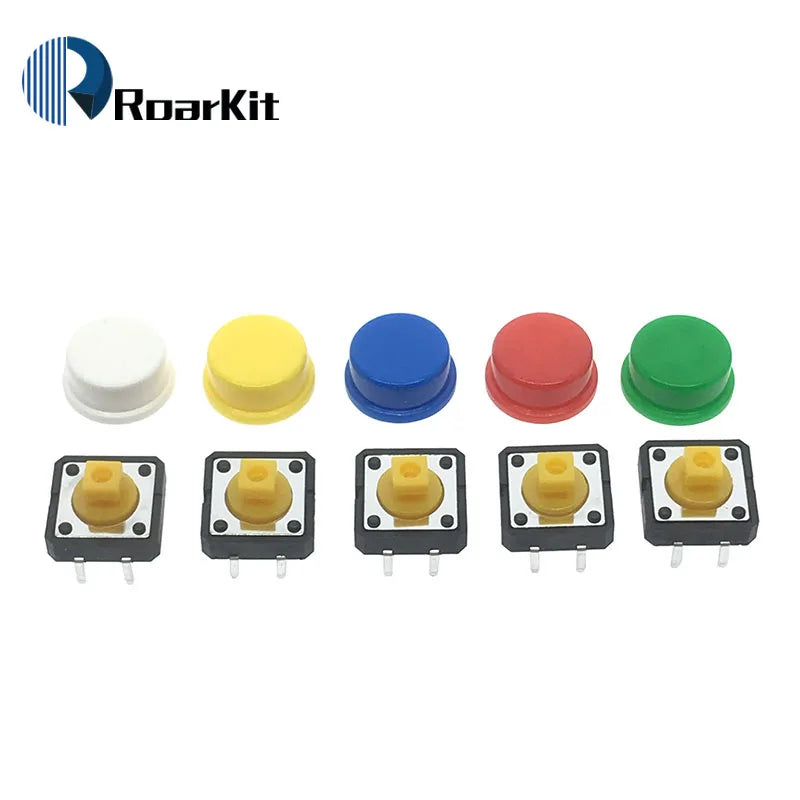

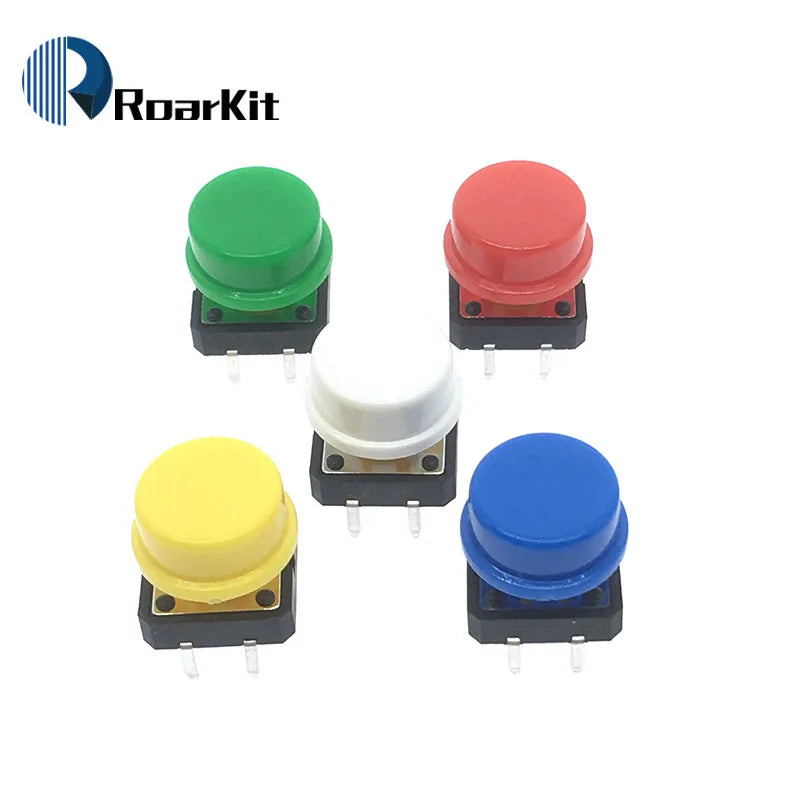

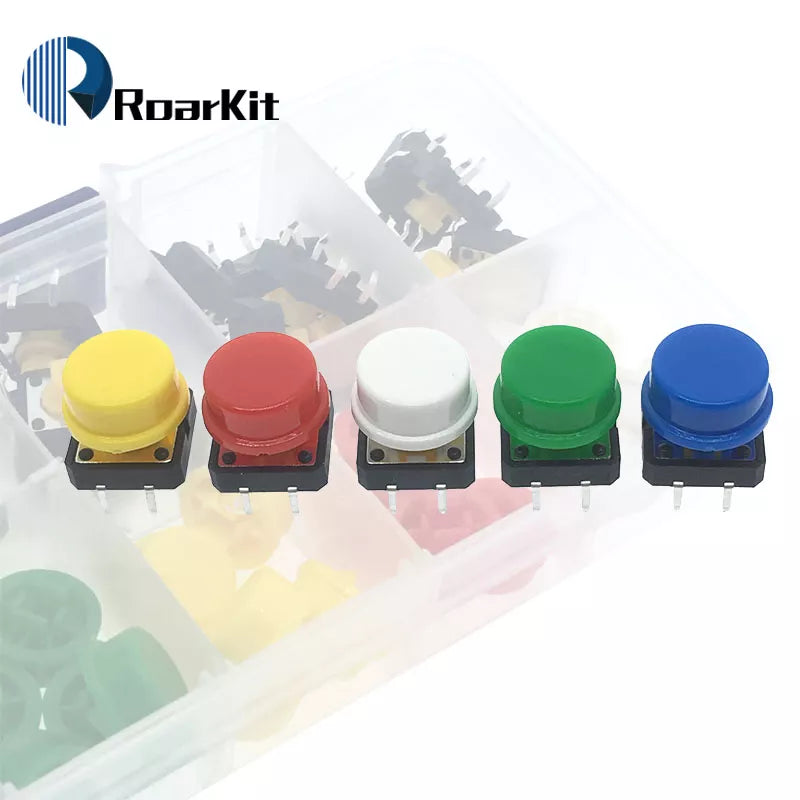

25PCS Tactile Push Button Switch

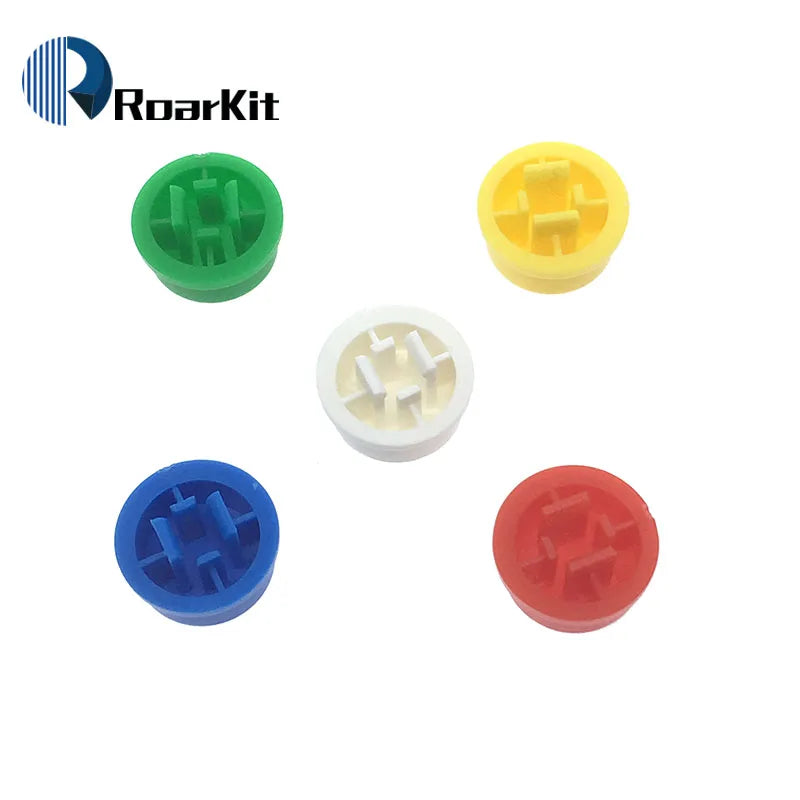

25PCS Tact Cap (Red green white blue yellow) Each color 5pcs
