2.8 Inch TFT LCD Module ILI9341 Driver With Touch IC XPT2046 240(RGB)*320 SPI Serial Port (9 IO) For DIY R3 Raspberry PI

Name: 2.8 Inch TFT LCD Module ILI9341 Driver With Touch IC XPT2046 240(RGB)*320 SPI Serial Port (9 IO) For DIY R3 Raspberry PI
Brand: Geek Barn
SKU: 14:29#With touch module
Price: 15.59 AUD
Availability: InStock

$15.59 AUD

Sale Sold out

Tax included.

Color With touch module No touch module

Product variants

Quantity

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Model Number: 2.8'' spi tft

Type: TFT

Display Mode: 240*320

Resolution: 320x240

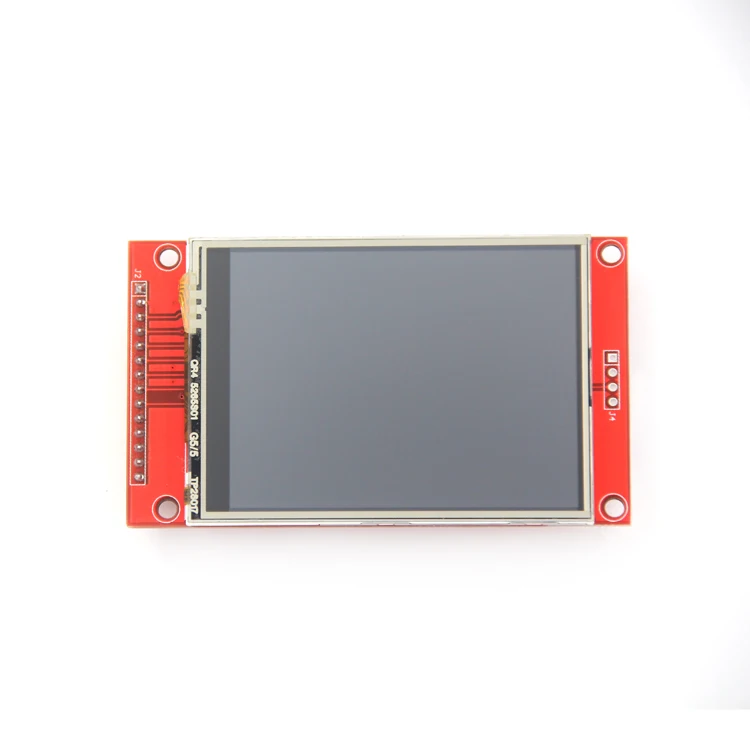

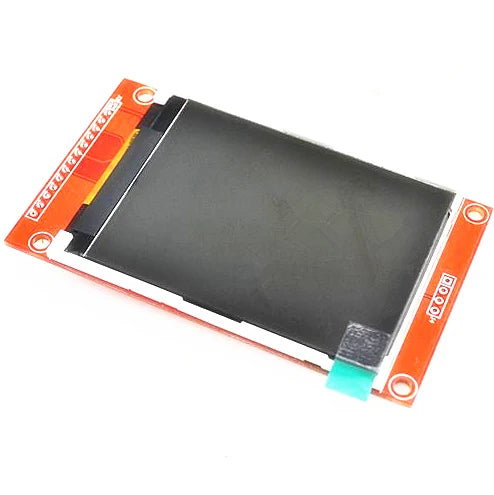

Spi real hardware interface 2.8-inch LCD screen

100% brand new and high quality

Type: with touch panel
Size:2.8 inch SPI Serial
Display size:50.00(W)X86.00(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots

use with 3.3V

With touch or No touch panel

Need at least 4 IOs from your MCU

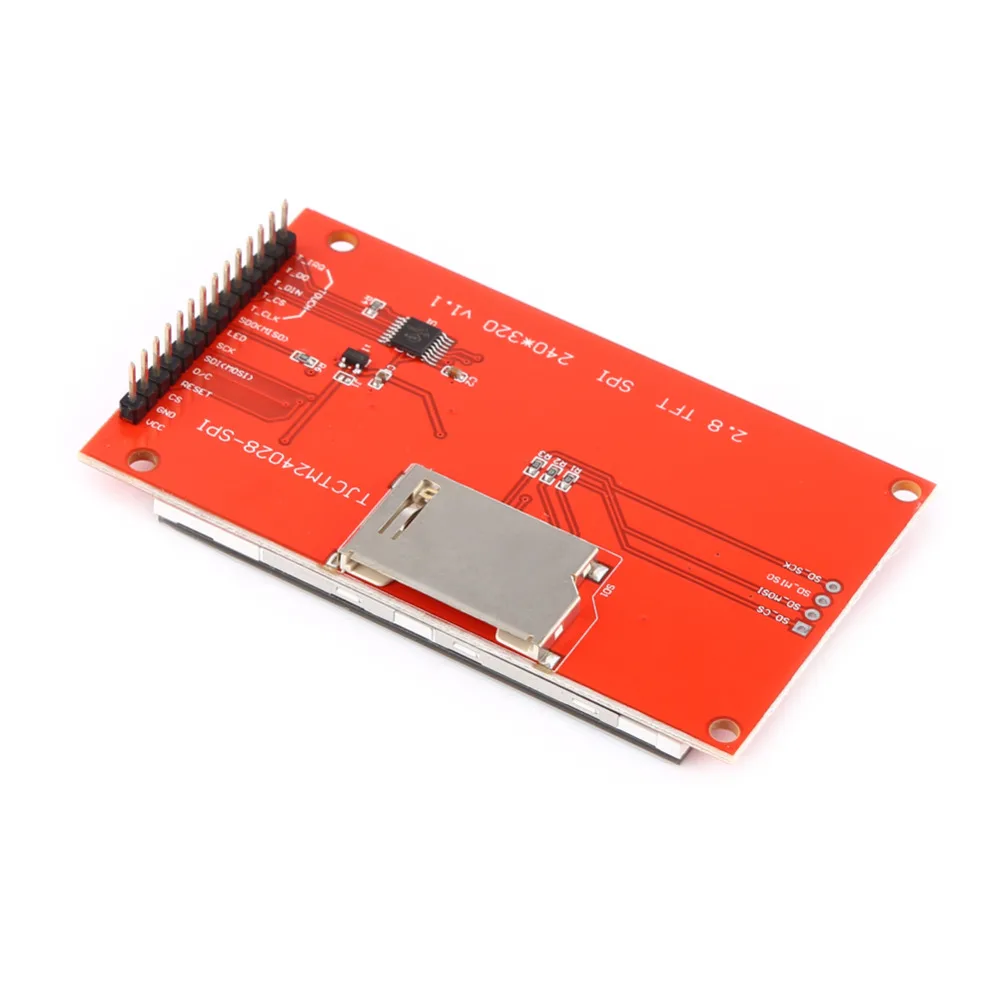

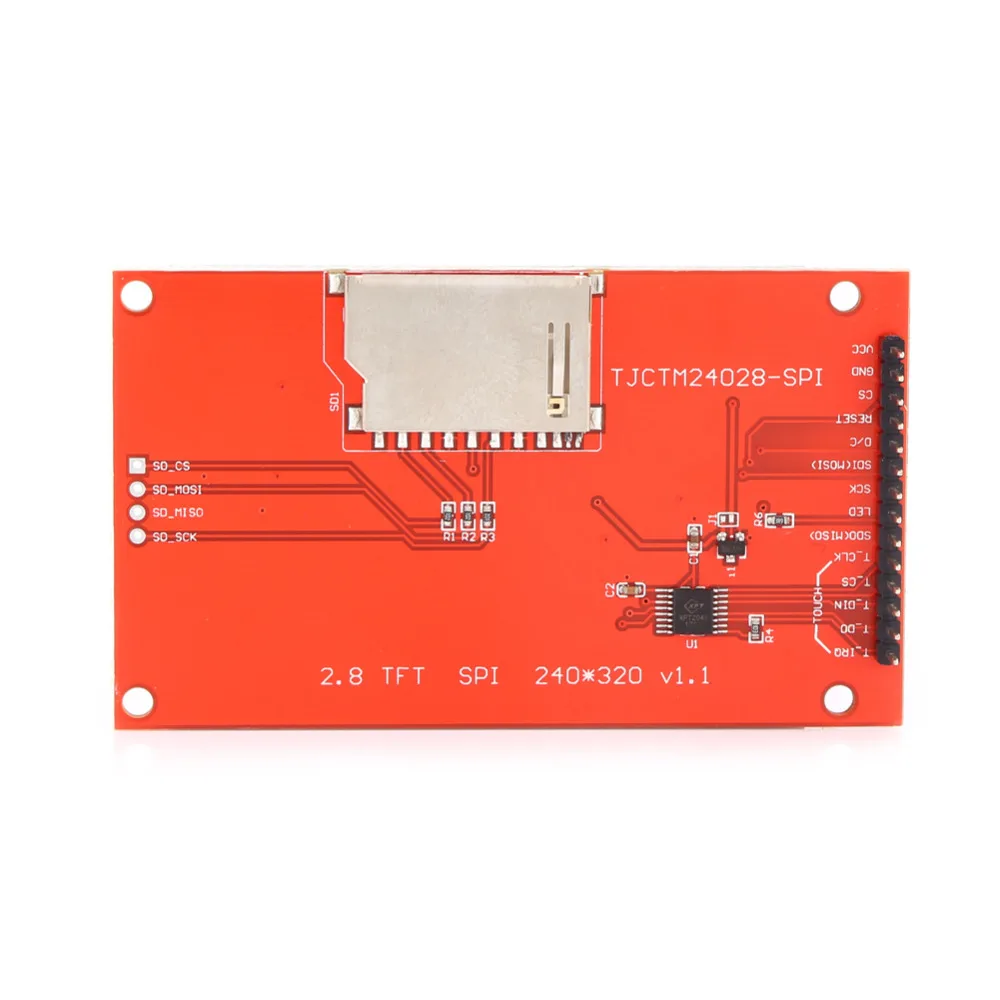

With PCB plate (including power supply IC, SD), compatible with 5110 interface

Shipping including:2.8 inch spi tft display
