2.13" 3-Color EPaper Eink E Paper E-ink Screen Display HAT Kit for RPI Raspberry Pi Zero 2 W 2W 3B 4 Modele B 5 Expansion Board
2.13" 3-Color EPaper Eink E Paper E-ink Screen Display HAT Kit for RPI Raspberry Pi Zero 2 W 2W 3B 4 Modele B 5 Expansion Board
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Waveshare
Demo Board Type: ARM
Origin: Mainland China
Model Number: for pi3 pi4 pi5 Zero WH Monitor io extension breakout board Shield
Certification: RoHS
Type: E ink Display
Display Type: E Paper Display
Communication Interface: SPI
for: raspberry pi Zero W
PACKAGE CONTENT ：( NOT include Raspberry Pi board.)
This is the V3 or V4 version,
Please use the V3 or V4 version of the library file!
2.13inch e-Paper HAT (B) x1 (V3 OR V4 version)
Screws pack x1
PH2.0 20cm 8Pin x1
Wiki English manual : www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)
Note :This is the V3 or V4 version. The V2 version has been discontinued. Compared with the old version, the appearance and functions of the V4 version are compatible. If you used the old driver before, you only need to update the latest driver to use it.

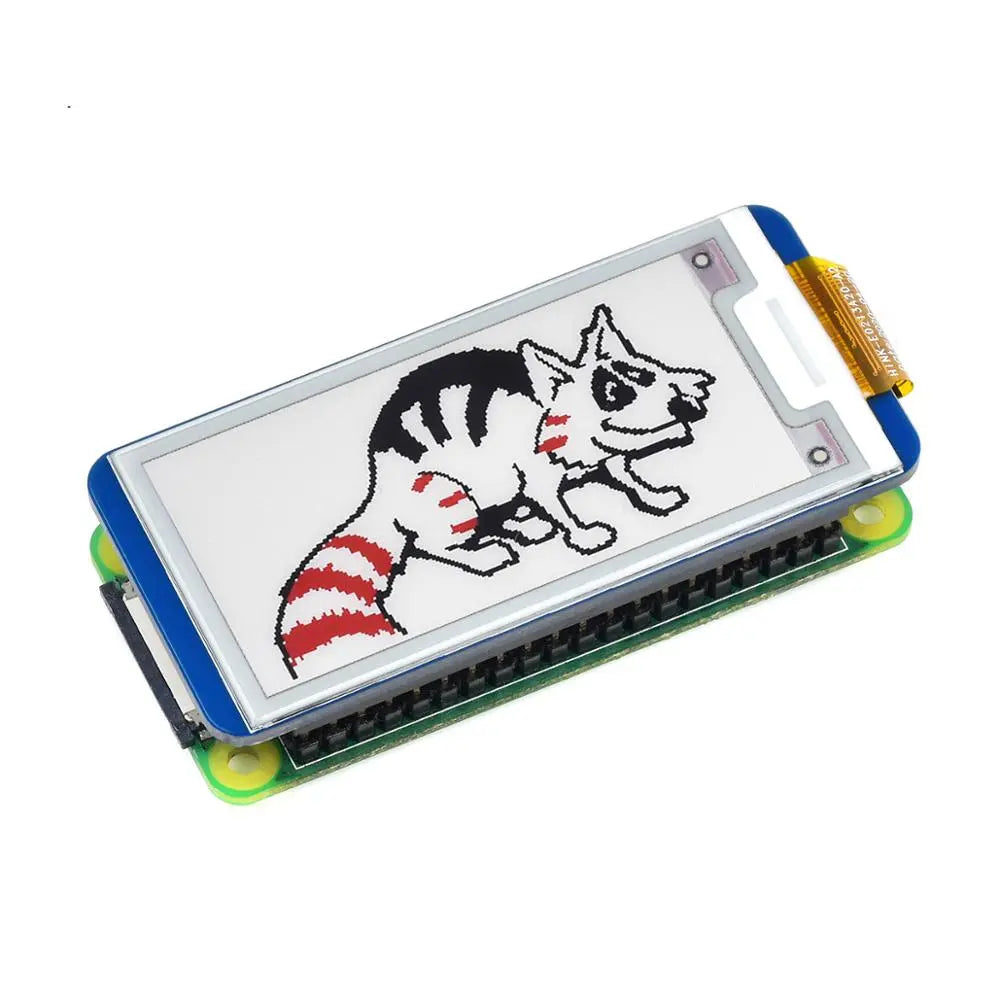

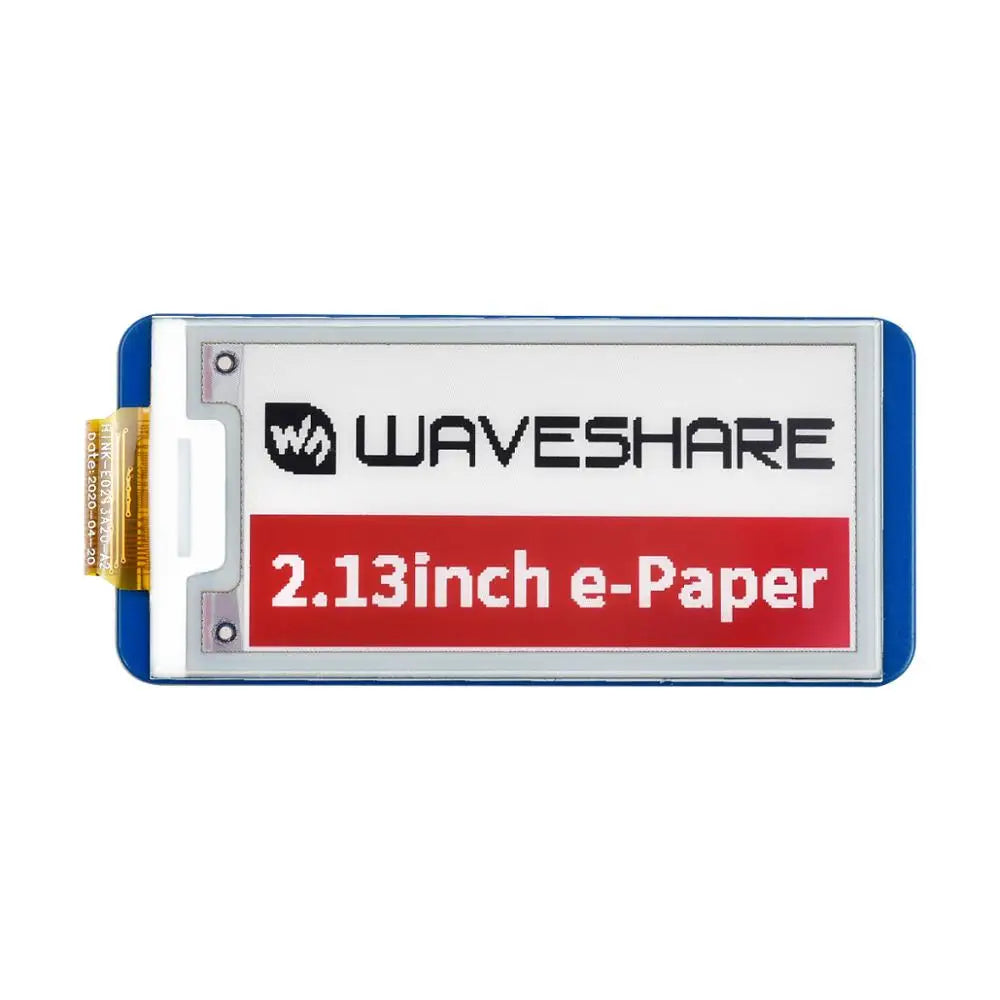

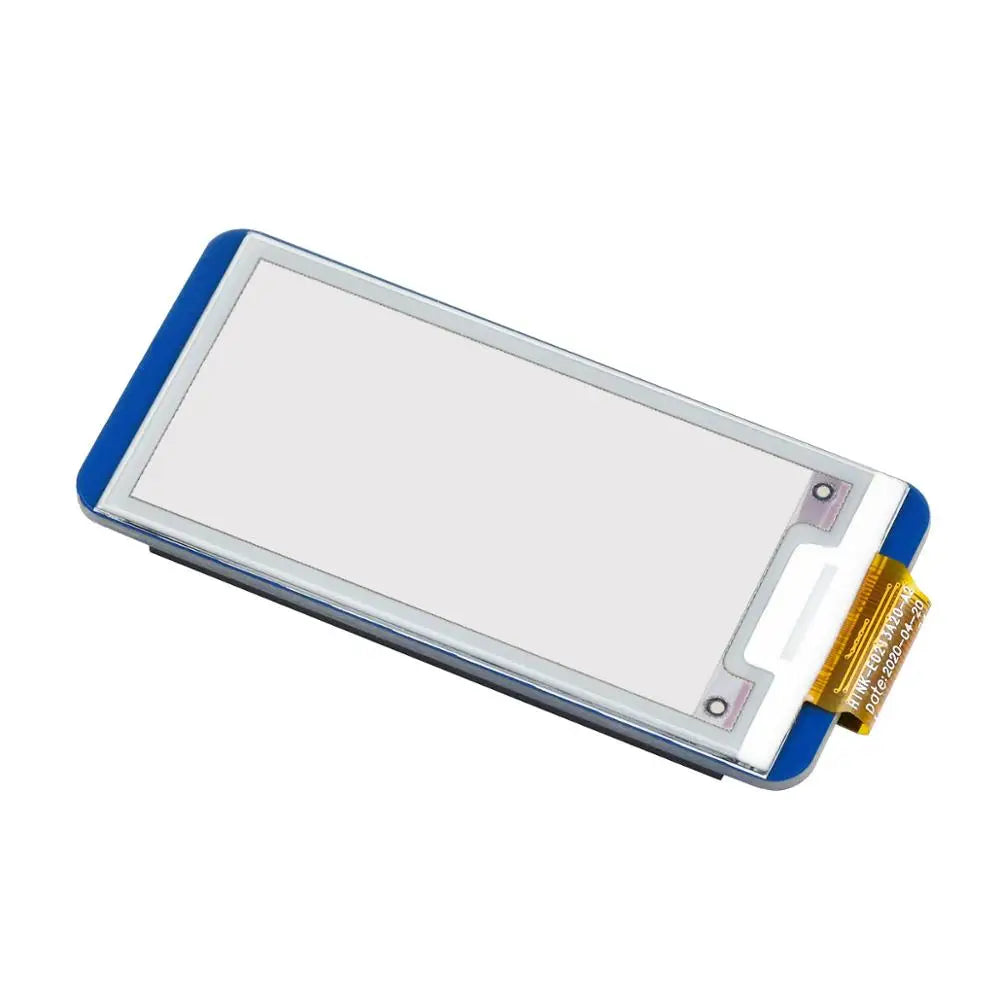

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
2.13inch e-Paper HAT (B) Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Wiki English manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
2.13inch e-Paper HAT (B) Specifications
Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 65mm × 30.2mm
Display size: 23.71mm × 48.55mm
Dot pitch: 0.229 × 0.228
Resolution: 212 × 104
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

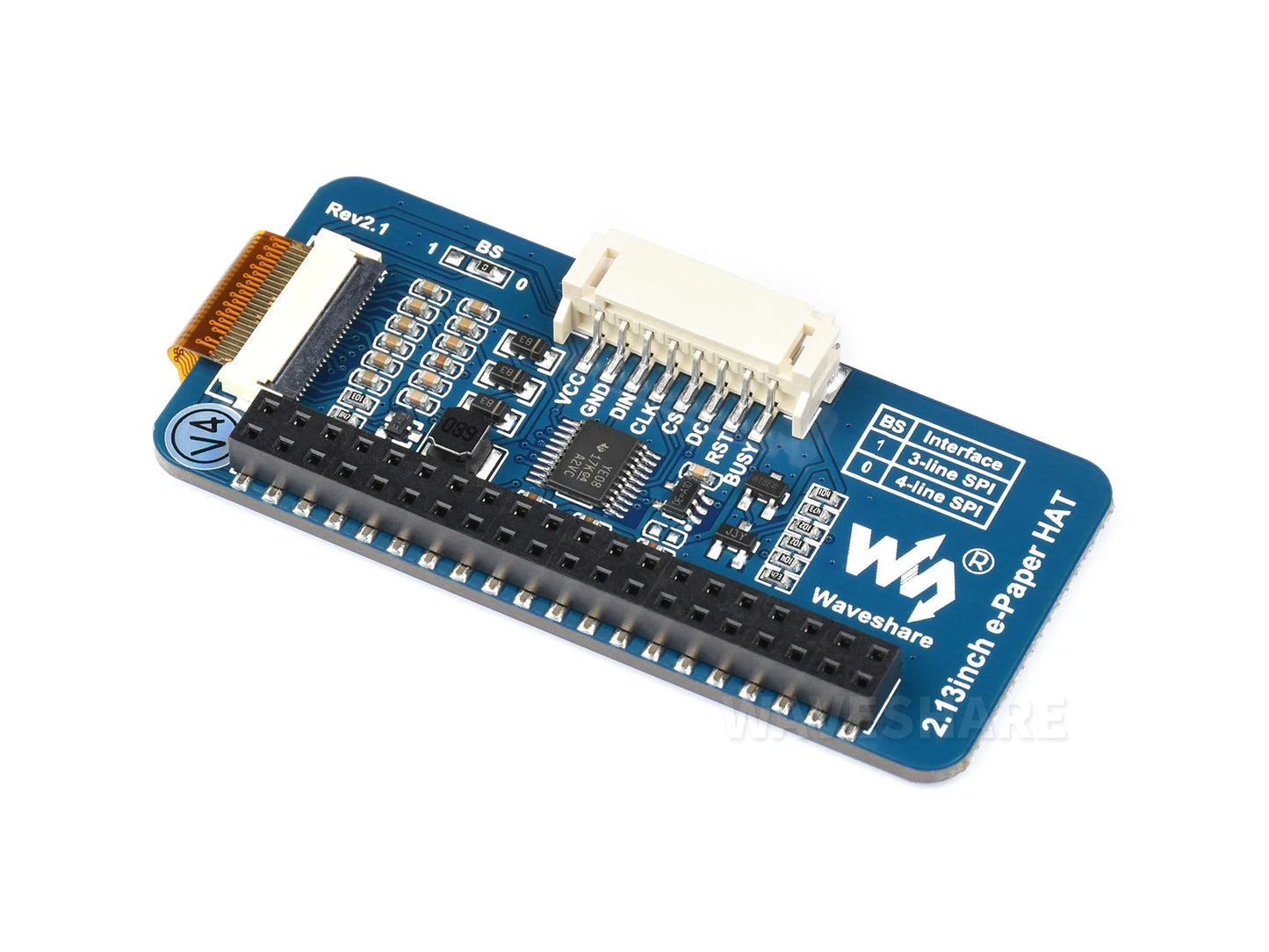

Interface
SYMBOL |
DESCRIPTION |
VCC |
3.3V/5V |
GND |
Ground |
NC |
NC |
DIN |
SPI MOSI pin |
CLK |
SPI SCK pin |
CS |
SPI chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
External reset, low active |
BUSY |
Busy status output, low active |
Dimensions
Development Resources
Wiki :www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)
