Description

Note: If you want to place the bulk order that the stock is not enough, please contact with us.

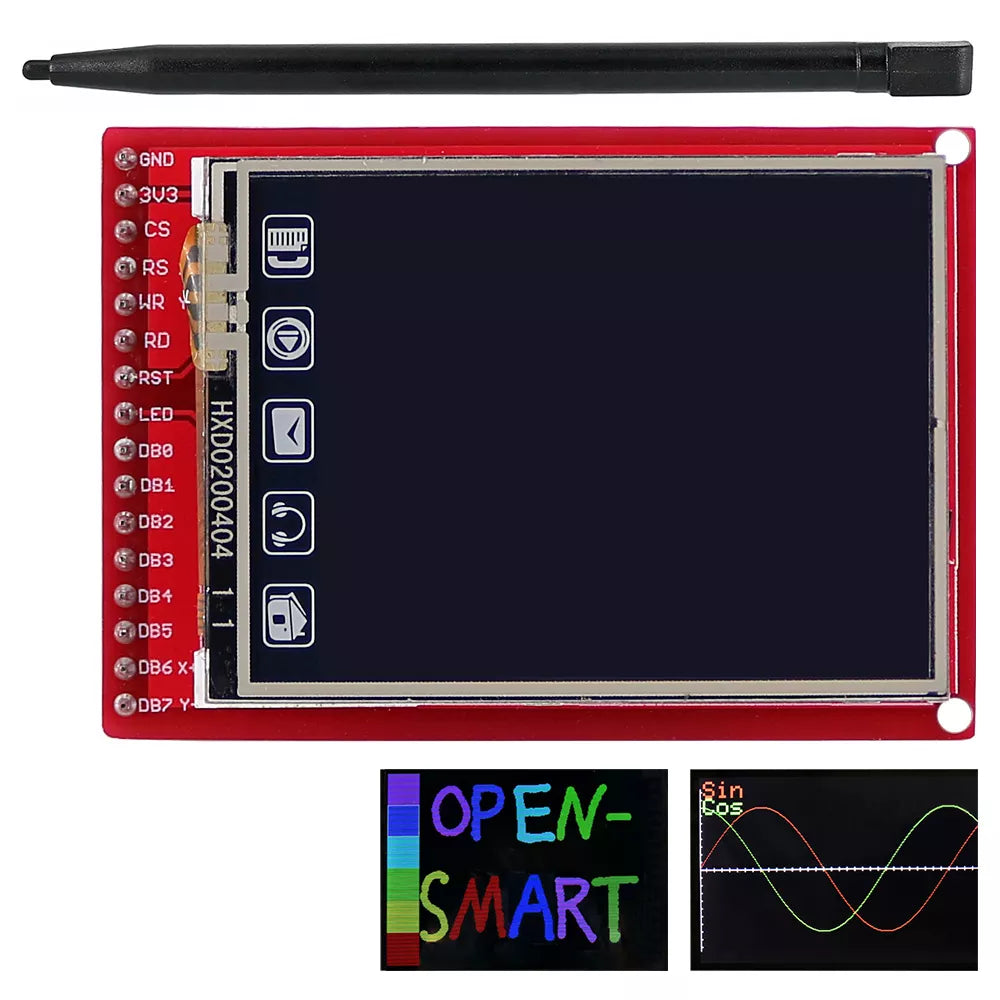

This is a 2.0 inch TFT LCD expansion board. This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller.It leads out the pins of the TFT and breakout pins pitch is 2.54mm, so the secondary development is less difficult.

With GPRS module, you can design your DIY phone.

With NFC reader module, you can create access control systems with the photos show.

With voltage and current sensor, you can make oscilloscope.

- Can use it directly to display characters, graphics and BMP format images.

- Compatibility: Because the logic level is 3.3V, it is compatible for board 3.3V, you generally need to add a level conversion circuit if you use for Arduino.

- Library: UTFT

- Driver IC:  R61503

- Touch screen type: resistive touchscreen.

- Touch Pen: length is 9cm;

- Resolution: 176X220, 16-bit (262,000) color

- Display size: 2.0 inch;

- Operating voltage: 3.3V;

- Logic level: 3.3V;

- Operating current: the maximum is 150mA

- LED pin can connect to external backlight control circuit to control the brightness of backlight. You can connect it to GND to turn on the backlight all day.

- Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor

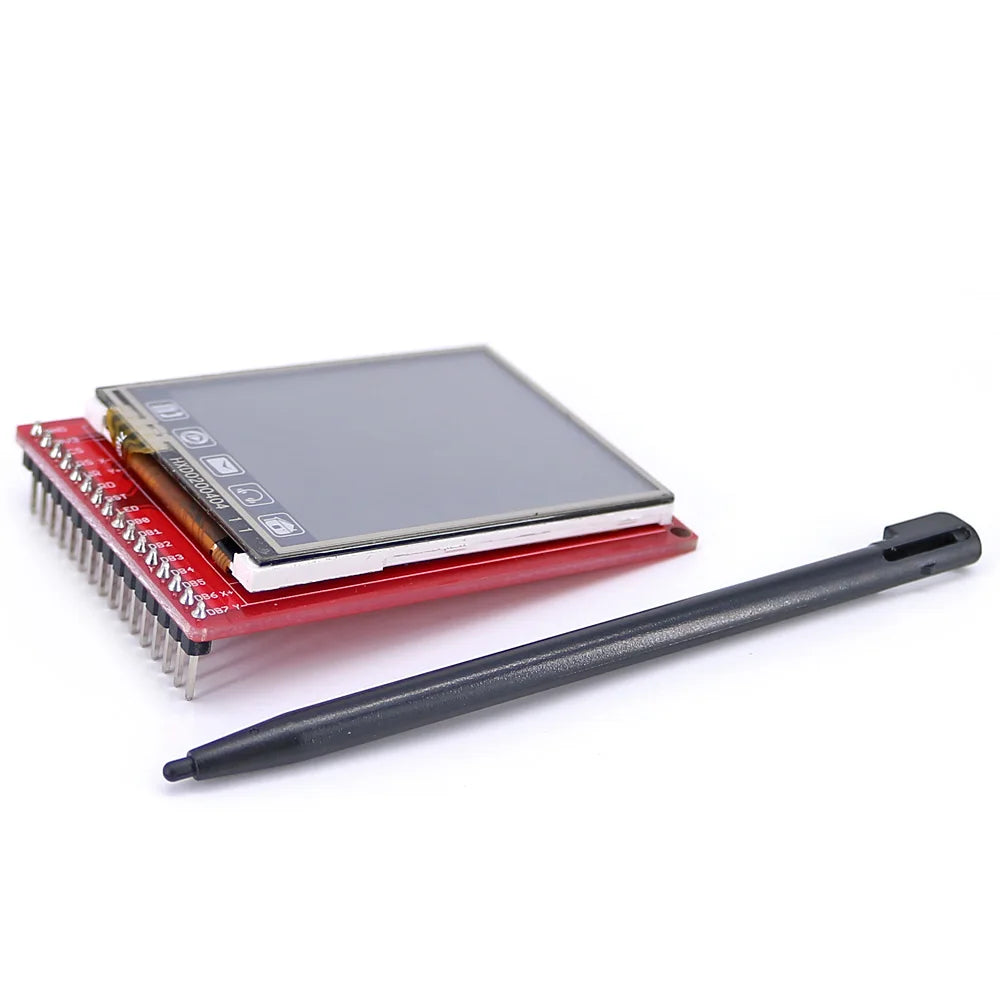

Photos

1 x Module
