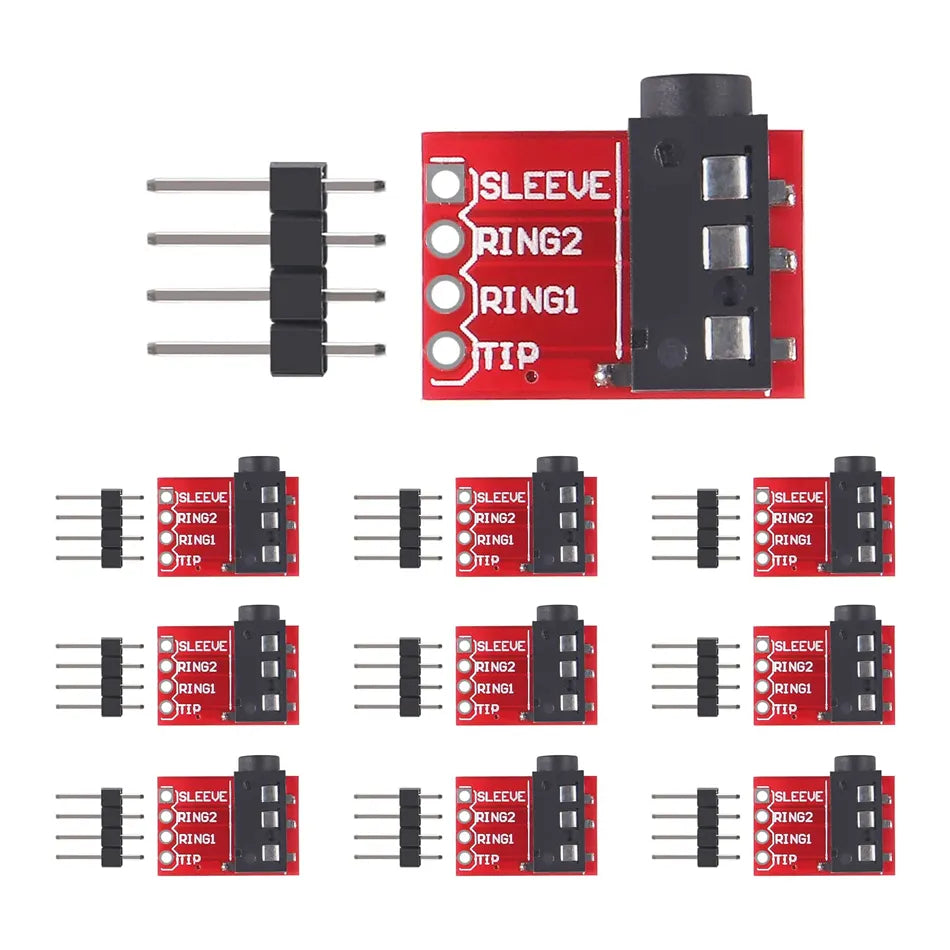

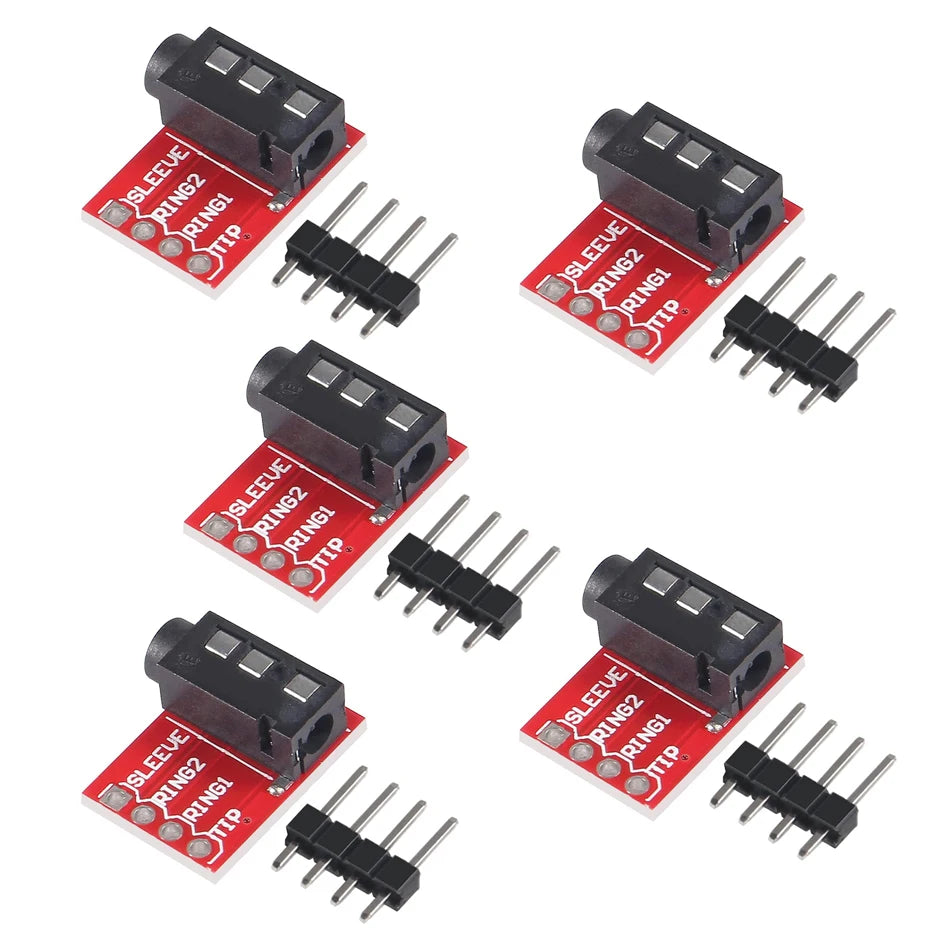

10PCS TRRS 3.5mm Jack Breakout Headphone Video Audio MP3 Jack Audio Jack Breakout Headphone Video for Arduino

Operation Temperature Range: -20~+70. Preservative Temperature Range: -40~+85

Material: Plastic + metal

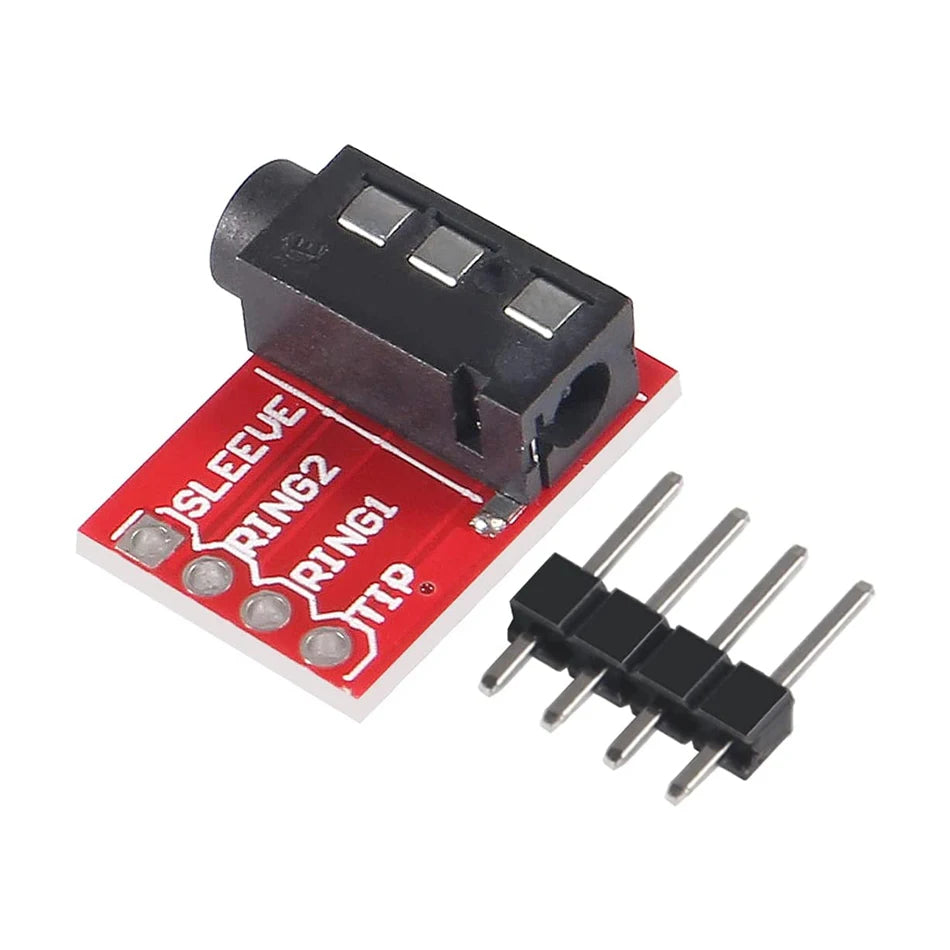

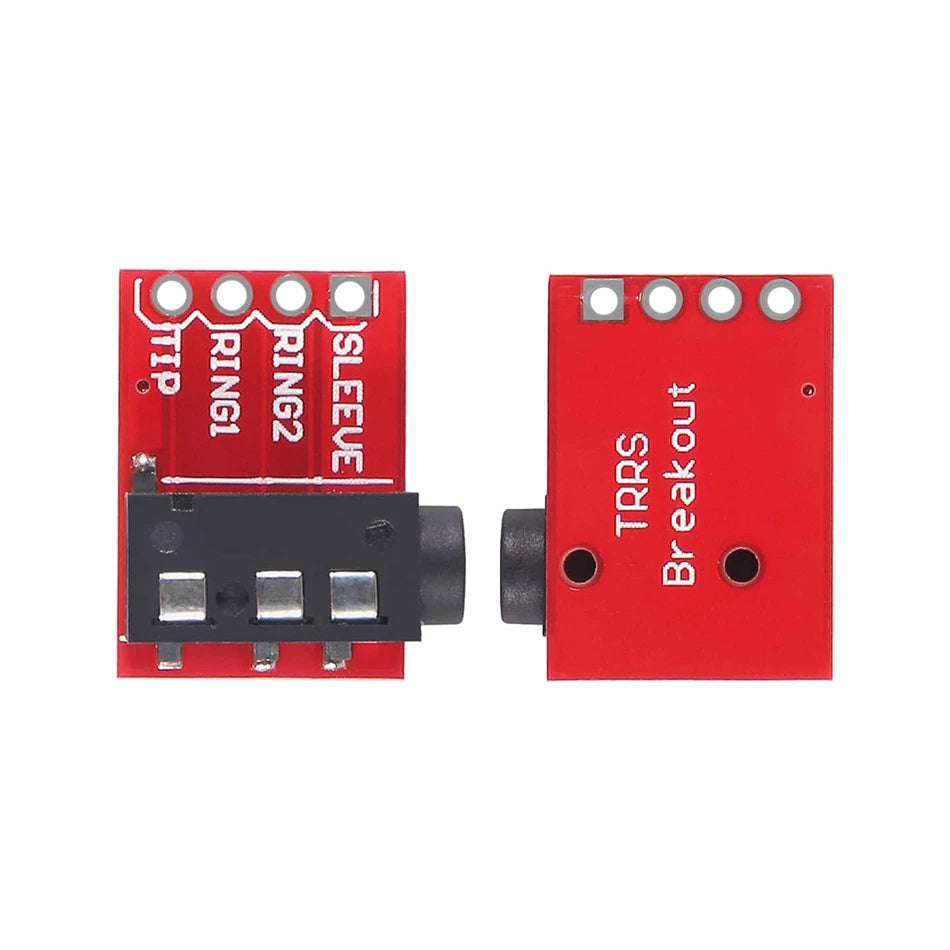

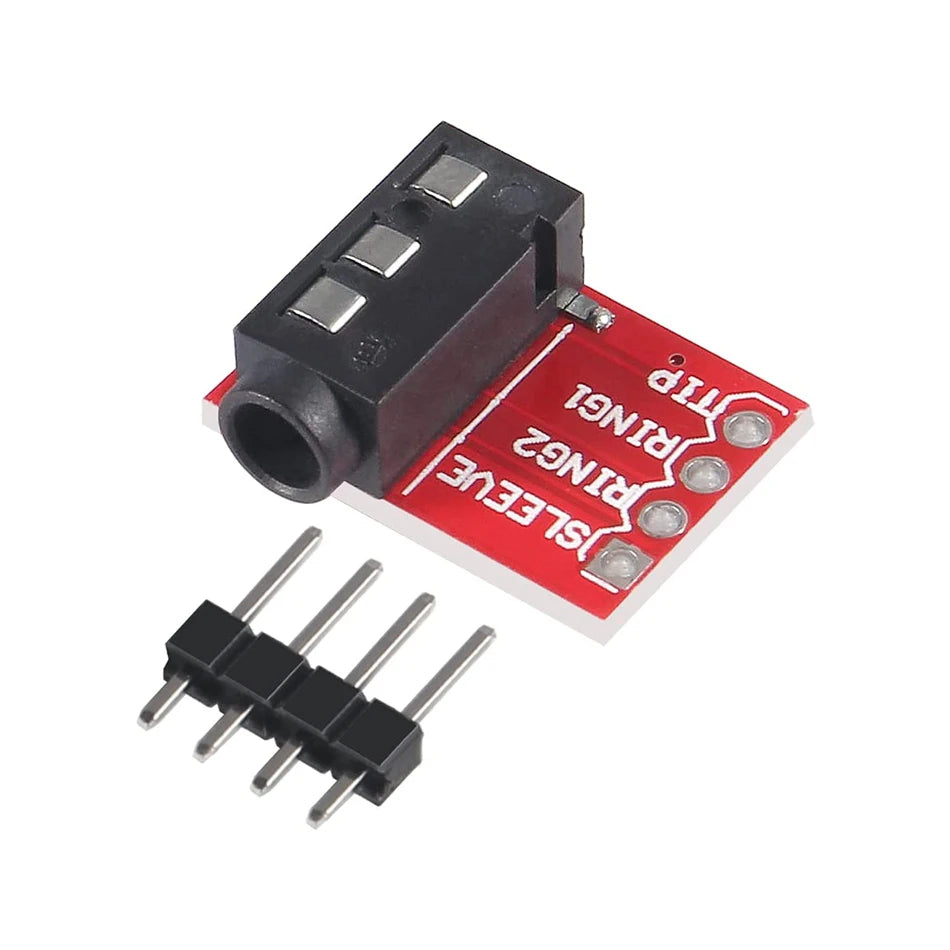

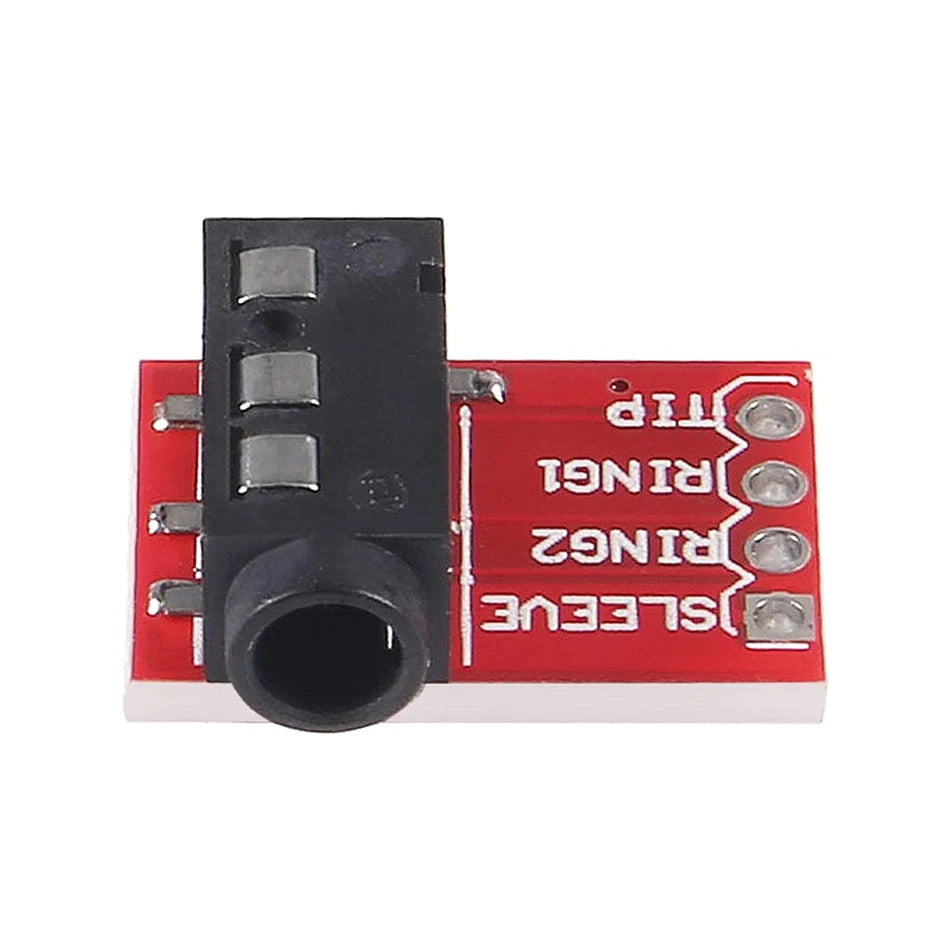

This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header.

Rating: DC 30V 0.5A. Contact Resistance: 50 Milionhms Max.

Insulation Resistance: 100 Megaohms Min.(500V DV). Withstand Voltage: 500V AC.

Description:

Rating: DC 30V 0.5A

Contact Resistance: 50 Milionhms Max.

Insulation Resistance: 100 Megaohms Min.(500V DV). Withstand Voltage: 500V AC.

Insertion and Extraction Force: 3N~30N

Life Test: 5000 Cycles Min.

Operation Temperature Range: -20~+70.

Preservative Temperature Range: -40~+85

Feature:

TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for “Tip, Ring, Ring, Sleeve,” which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-free headsets) or to carry a video signal (like in some MP3/MP4 players). This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header.
